GENERATOR

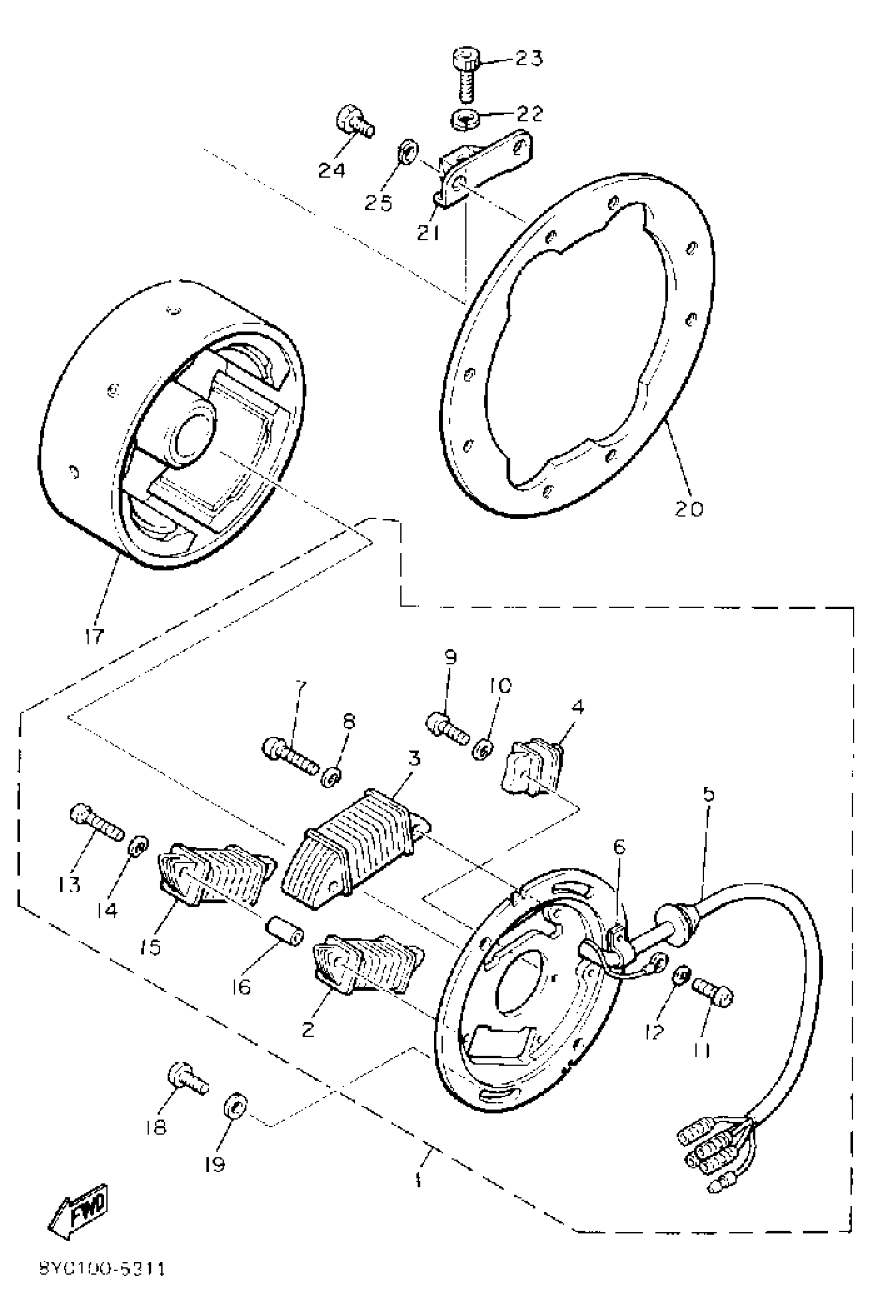

Yamaha SR540L (SRV) 1987 GENERATOR Diagram
#
Description
Price
1
STATOR ASSEMBLY
8V8-85510-20-00
Unavailable
2
. COIL, SOURCE (8T0-85511-20)
86M-85511-00-00
Unavailable
3
. COIL, LIGHTING 1
8G8-85513-20-00
Unavailable
4
. COIL, PULSER (8N5-85580-20)
82M-85580-20-00
Unavailable
5
. LEAD WIRE ASSEMBLY (8V0-85515-20)
8W0-85515-20-00
Unavailable
6
CLAMP, READ
445-81328-20-00
Unavailable
7
SCREW, PAN
98507-05035-00
$8.49
8
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
9
SCREW, PAN HEAD
98507-04018-00
$2.19
10
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
11
SCREW, PAN HEAD (713)
98580-04008-00
$5.60
12
YBS67-4 WASHER, SPRING
92990-04100-00
$0.86
13
SCREW, PAN
98507-05040-00
$8.49
14
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
15
. COIL, LIGHTING 2 (8V0-85514-20)
82M-85514-20-00
Unavailable
16
. SPACER
8T0-85519-20-00
Unavailable
17
. ROTOR ASSEMBLY (8K1-85550-20)
8J9-85550-20-00
Unavailable
18
SCREW, BIND (705)
98980-06016-00
Unavailable
19
WASHER, PLATE 6261117600
90201-06043-00
Unavailable
20
GEAR, RING
8H8-81891-00-00
Unavailable
21
STAY, RING GEAR
8H8-81895-00-00
Unavailable
22
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
23
BOLT, HEX SKT HEADSOCKET HEAD
90110-08028-00
Unavailable
24
BOLT(3JP)
97017-06010-00
Unavailable
25
WASHER, SPRING
92995-06100-00
Unavailable
