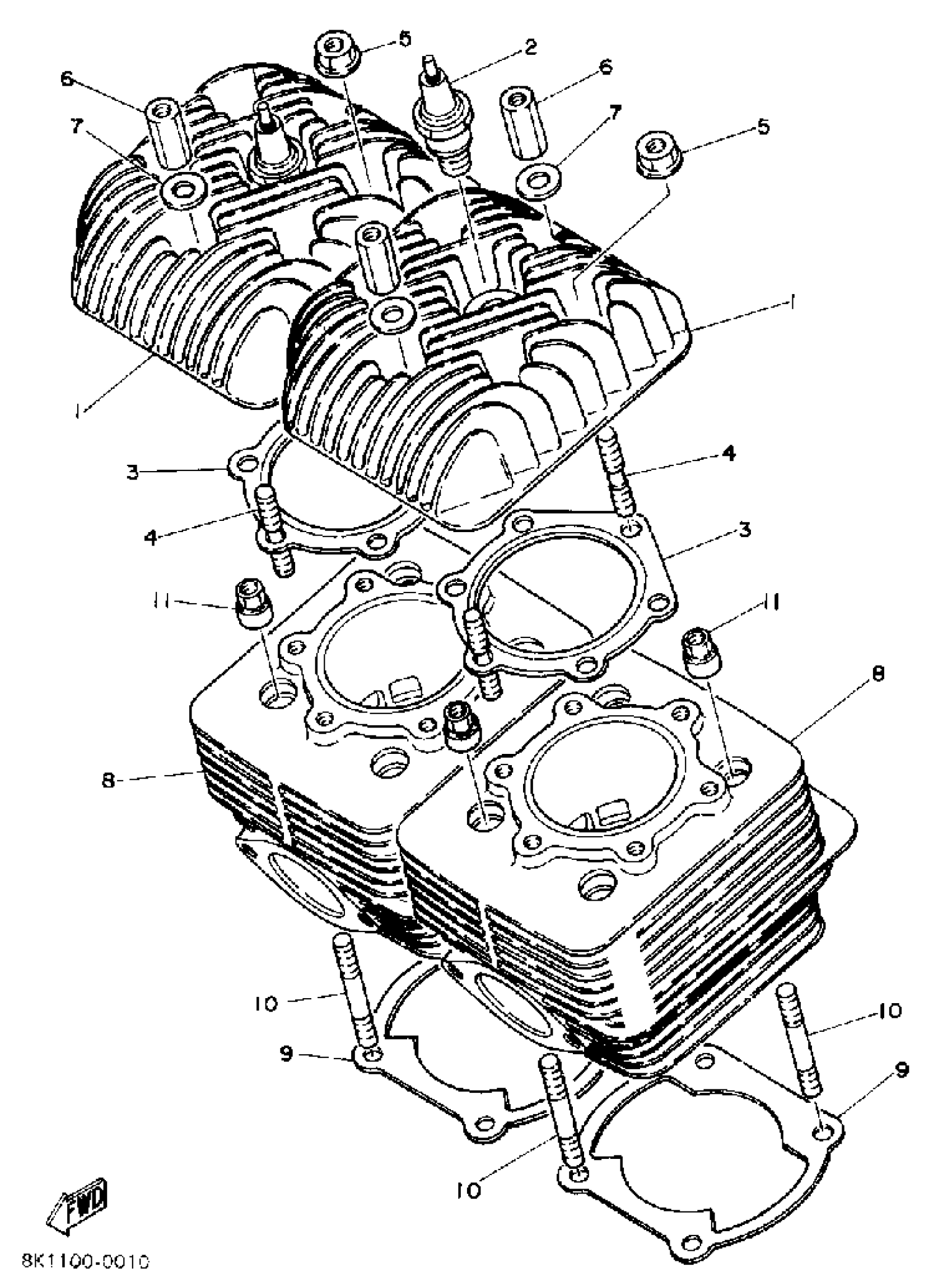

Yamaha SR540L (SRV) 1987 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

8H8-11111-00-00

Unavailable

1

HEAD, CYLINDER 1

8R6-11111-00-00

Unavailable

2

PLUG, SPARK (NGK BR-9EVX)

BR9-EIX00-00-00

Unavailable

3

GASKET, CYLINDER HEAD 1

83R-11181-00-00

$37.99

4

BOLT STUD 363111790000

90116-08104-00

$17.99

5

NUT, FLANGE

95704-08500-00

$8.49

6

NUT (8H8)

90179-08269-00

$11.49

7

WASHER, PLATE (397)

90201-08100-00

$8.49

8

CYLINDER 1

8H8-11311-00-00

Unavailable

8

CYLINDER 1

8R6-11311-00-00

Unavailable

9

GASKET, CYLINDER

89N-11351-00-00

$8.99

10

BOLT, STUD (8H8)

90116-08302-00

$10.49

11

NUT (8H8)

90179-08268-00

$10.49
