AIR SHROUD - FAN

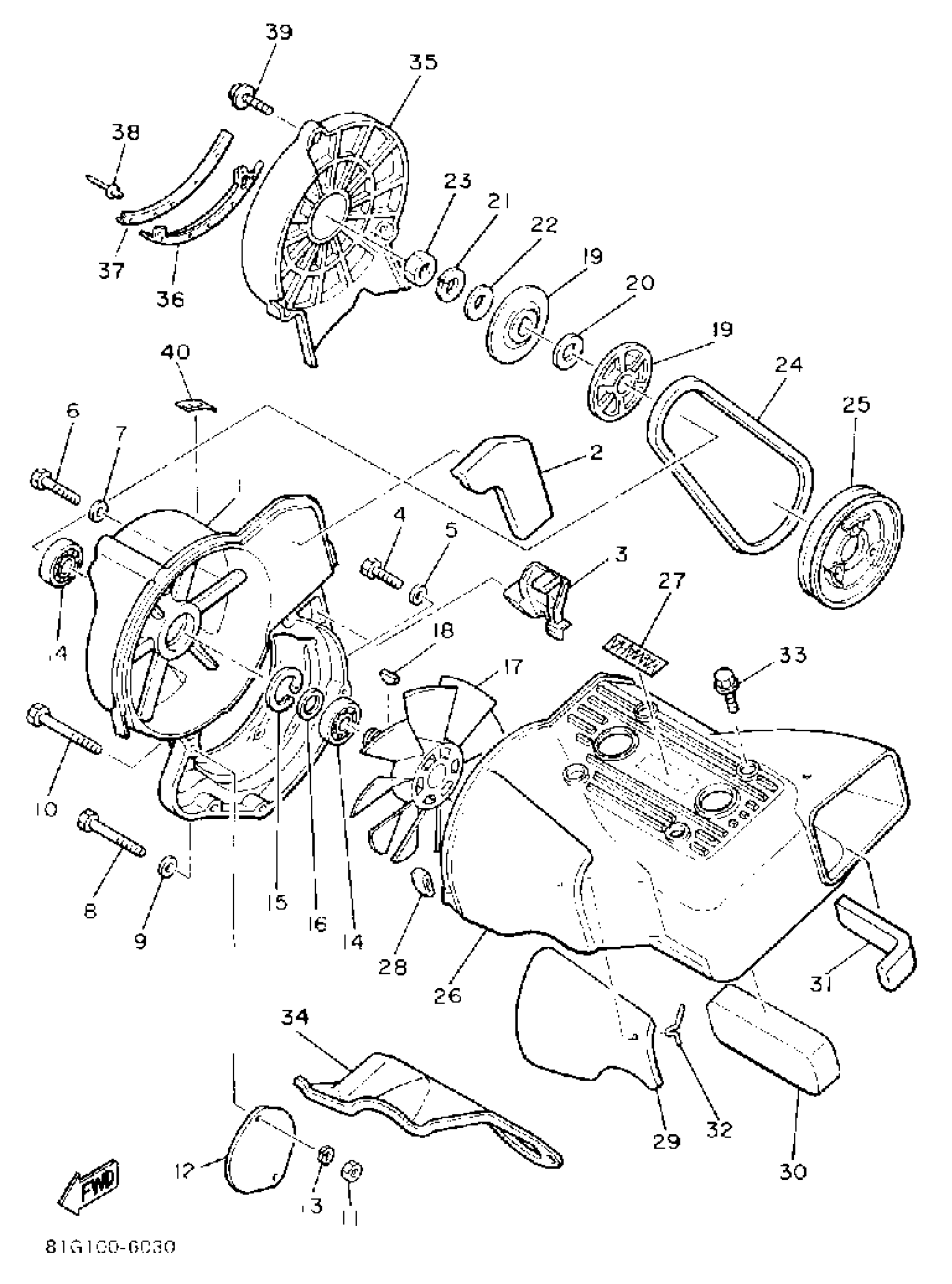

Yamaha SR540L (SRV) 1987 AIR SHROUD - FAN Diagram
#
1
CASE, FAN
88T-12621-01-00
Unavailable
2
DAMPER, SHROUD 6
8Y0-12679-00-00
Unavailable
3
DAMPER, AIR SHROUD 1
8Y0-12658-00-00
Unavailable
4
BOLT
97013-08035-00
$5.60
5
.. WASHER, PLATE
92990-08600-00
Unavailable
6
BOLT, HEXAGON
97013-08050-00
Unavailable
7
.. WASHER, PLATE
92990-08600-00
Unavailable
8
BOLT (6K8)
97013-08075-00
$7.49
9
.. WASHER, PLATE
92990-08600-00
Unavailable
10
BOLT (6K8)
97013-08075-00
$7.49
11
NUT(6L2)
95333-08600-00
$2.49
12
PLATE
8K4-12633-00-00
Unavailable
13
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
14
BEARING
93306-20348-00
$40.99
15
CIR-CLIP (70R)
93420-40064-00
Unavailable
16
WASHER, PLATE (8H8)
90201-17713-00
Unavailable
17
FAN
8H8-12611-01-00
Unavailable
18
KEY, WOOD RUFF (324)
90280-05014-00
Unavailable
19
PULLEY 2
8H8-12619-01-00
Unavailable
20
WASHER, CLAW (8H8)
90214-17017-00
Unavailable
20
WASHER, CLAW (1.0T)
90214-17018-00
Unavailable
21
WASHER(JN5)
92907-16100-00
Unavailable
22
WASHER, PLATE (8H8)
90201-17713-00
Unavailable
23
NUT
90170-16425-00
Unavailable
24
BELT
8H8-12612-00-00
Unavailable
25
PULLEY 1
8H8-12618-01-00
Unavailable
26
AIR SHROUD CYL. 1
8H8-12651-02-00
Unavailable
27
EMBLEM
8H8-12629-00-00
Unavailable
28
DAMPER, AIR SHROUD CYLINDER
8H8-12658-00-00
Unavailable
29
DAMPER, SHROUD 2
8H8-12659-00-00
Unavailable
30
DAMPER, SHROUD 4
8H8-12669-00-00
Unavailable
31
DAMPER, AIR SHROUD 5
8V8-12678-00-00
Unavailable
32
PIN, COTTER
91401-16030-00
Unavailable
33
BOLT, WITH WASHER(8V7)
90119-06108-00
Unavailable
34
AIR SHROUD, CYLINDER 2
8H8-12652-00-00
Unavailable
35
COVER, FAN CASE
8L0-12616-00-00
Unavailable
36
STAY 1
8Y0-12637-02-00
Unavailable
37
DAMPER, DUCT
8Y0-12687-02-00
Unavailable
38
RIVET(8Y0)
90269-05051-00
Unavailable
39
SCREW, WITH WASHER
90159-06108-00
Unavailable
40
LABEL, CAUTION
8K4-12628-00-00
Unavailable
