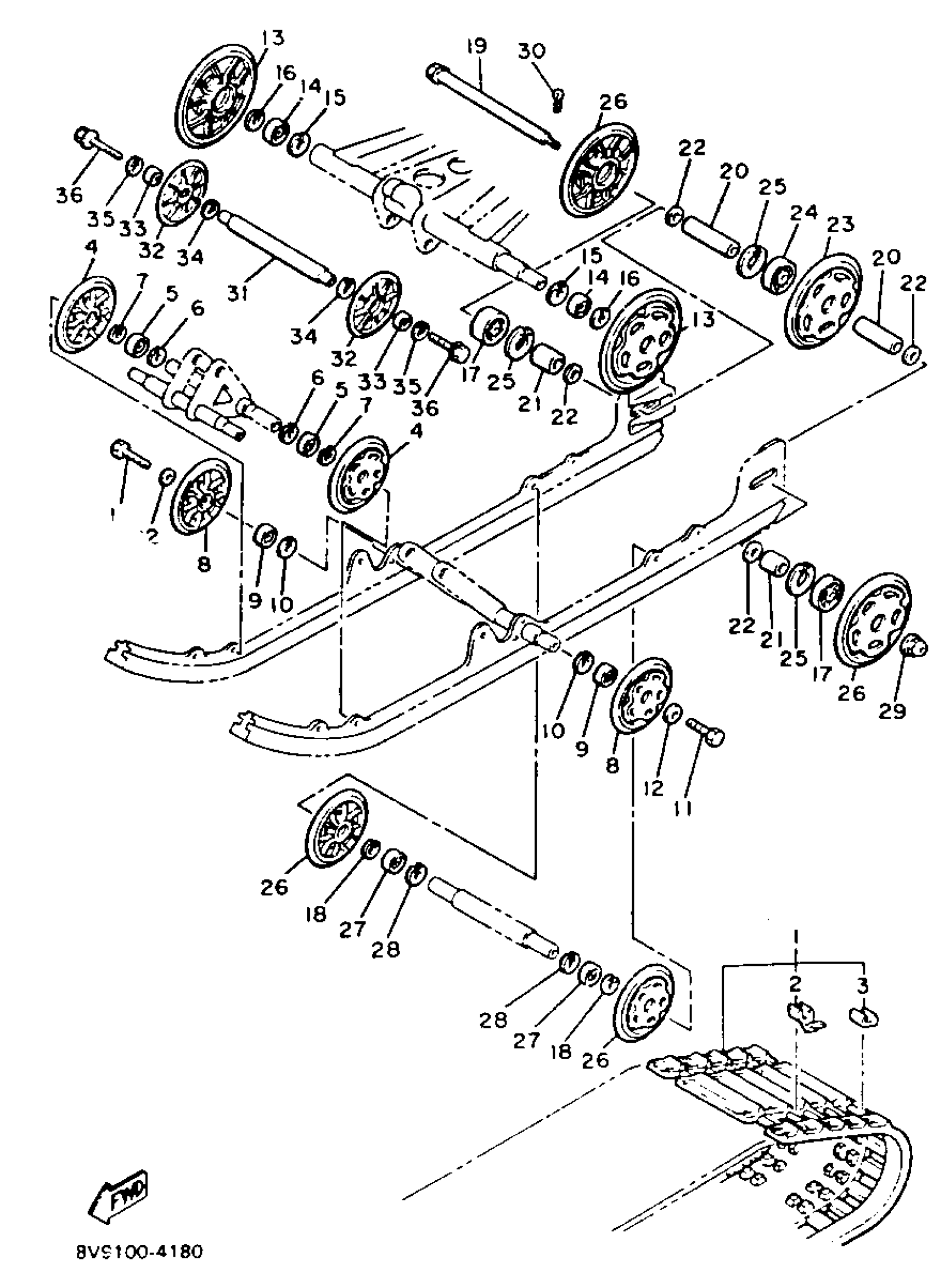

Yamaha SR540H (SRV) 1984 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

TRACK ASSEMBLY

87F-47110-01-00

Unavailable

2

PLATE, REINFORCEMENT

89A-47113-00-00

$5.49

3

METAL, SLIDE

8A5-47115-00-00

Unavailable

4

SUSPENTION WHEEL COMP

87M-47320-00-00

$84.99

5

BEARING(8AB)

93306-00444-00

$41.99

6

CIRCLIP(5U8)

99009-42500-00

$8.49

7

CIRCLIP(1AR)

99009-20400-00

$8.49

8

SUSPENSION WHEEL COMP.

87U-47320-00-00

Unavailable

9

BEARING(8AB)

93306-00444-00

$41.99

10

CIRCLIP(5U8)

99009-42500-00

$8.49

11

BOLT (8K2)

90109-08559-00

$8.49

12

WASHER (8G1)

90201-08681-00

$7.49

13

SUSPENSION WHEEL COMP.

8U7-47320-00-00

Unavailable

14

BEARING(8AB)

93306-00444-00

$41.99

15

CIRCLIP(5U8)

99009-42500-00

$8.49

16

CIRCLIP(1AR)

99009-20400-00

$8.49

17

BEARING(8AB)

93306-00444-00

$41.99

18

CIRCLIP(1AR)

99009-20400-00

$8.49

19

REAR AXLE COMP.

8L8-47520-02-00

Unavailable

20

COLLAR

90387-202H9-00

Unavailable

21

COLLAR

90387-20022-00

Unavailable

22

WASHER, PLATE (888)

90201-20279-00

Unavailable

23

GUIDE WHEEL COMP.

8K2-47530-00-00

Unavailable

24

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

Unavailable

25

CIRCLIP(48Y)

99009-47500-00

Unavailable

26

GUIDE WHEEL COMP.

8M6-47530-00-00

Unavailable

27

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

Unavailable

28

CIRCLIP(48Y)

99009-47500-00

Unavailable

29

NUT, SELF-LOCKING (8BF)

95607-14200-00

Unavailable

30

PIN COTTER

91490-30025-00

Unavailable

31

IDLER

8L1-47461-00-00

Unavailable

32

SUSPENSION WHEEL COMP.

8H8-47320-00-00

Unavailable

33

BEARING(8AB)

93306-00444-00

$41.99

34

CIRCLIP(5U8)

99009-42500-00

$8.49

35

CIRCLIP(1AR)

99009-20400-00

$8.49

36

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable
