STEERING

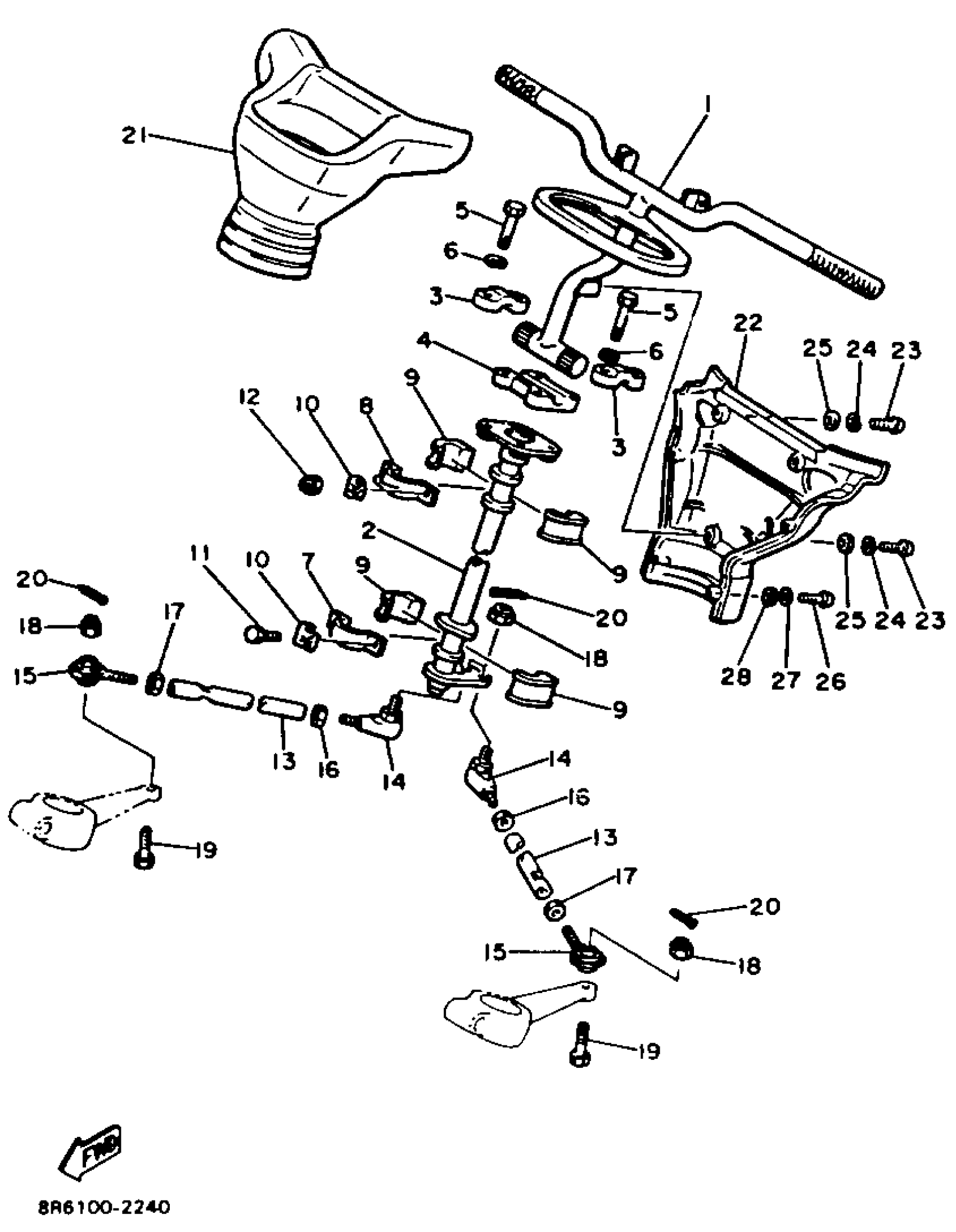

Yamaha SR540H (SRV) 1984 STEERING Diagram
#
1
COLUMN, STEERING
81R-23811-00-00
Unavailable
2
COLUMN, STEERING 2
8L8-23813-00-00
Unavailable
3
HOLDER, HANDLE UPPER
1E6-23441-00-00
$27.99
4
HOLDER, handle upper (8G5-23814-00-00)
164-23814-00-98
Unavailable
5
BOLT, HEXAGON
97013-08055-00
$2.55
6
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
7
BRACKET, STEERING LOWER
84M-23868-00-00
Unavailable
8
HOLDER, BEARING
84M-23872-00-00
Unavailable
9
BEARING, STEERING
8F3-23812-00-00
Unavailable
10
WASHER, LOCK 1
8AC-23894-01-00
$4.78
11
BOLT, HEXAGON
97013-08016-00
$1.01
12
NUT, NYLON
95717-08300-00
$2.70
13
ROD,STEERING RELAY
85L-23821-00-00
Unavailable
14
JOINT, UNIVERSAL 1
86X-23841-00-00
$59.99
15
JOINT, UNIVERSAL 3
87S-23847-01-00
$50.99
16
NUT (682)
95380-10700-00
Unavailable
17
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
18
NUT, NYLON
95707-10300-00
Unavailable
19
BOLT, WITH HOLE
90102-10031-00
Unavailable
20
PIN, COTTER
91490-20025-00
Unavailable
21
PAD, STEERING
8L8-23815-01-00
Unavailable
22
. PAD, STEERING
8L8-23817-02-00
Unavailable
22
COVER, STEERING
8Y0-23818-00-00
Unavailable
22
PAD KIT (8L8-23817-01)
99999-01429-00
Unavailable
23
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
24
WASHER(3SX)
92907-05100-00
Unavailable
25
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
26
SCREW, PAN HEAD
98517-04012-00
Unavailable
27
WASHER(6TA)
92907-04100-00
Unavailable
28
WASHER(JF2)
92907-04600-00
Unavailable
