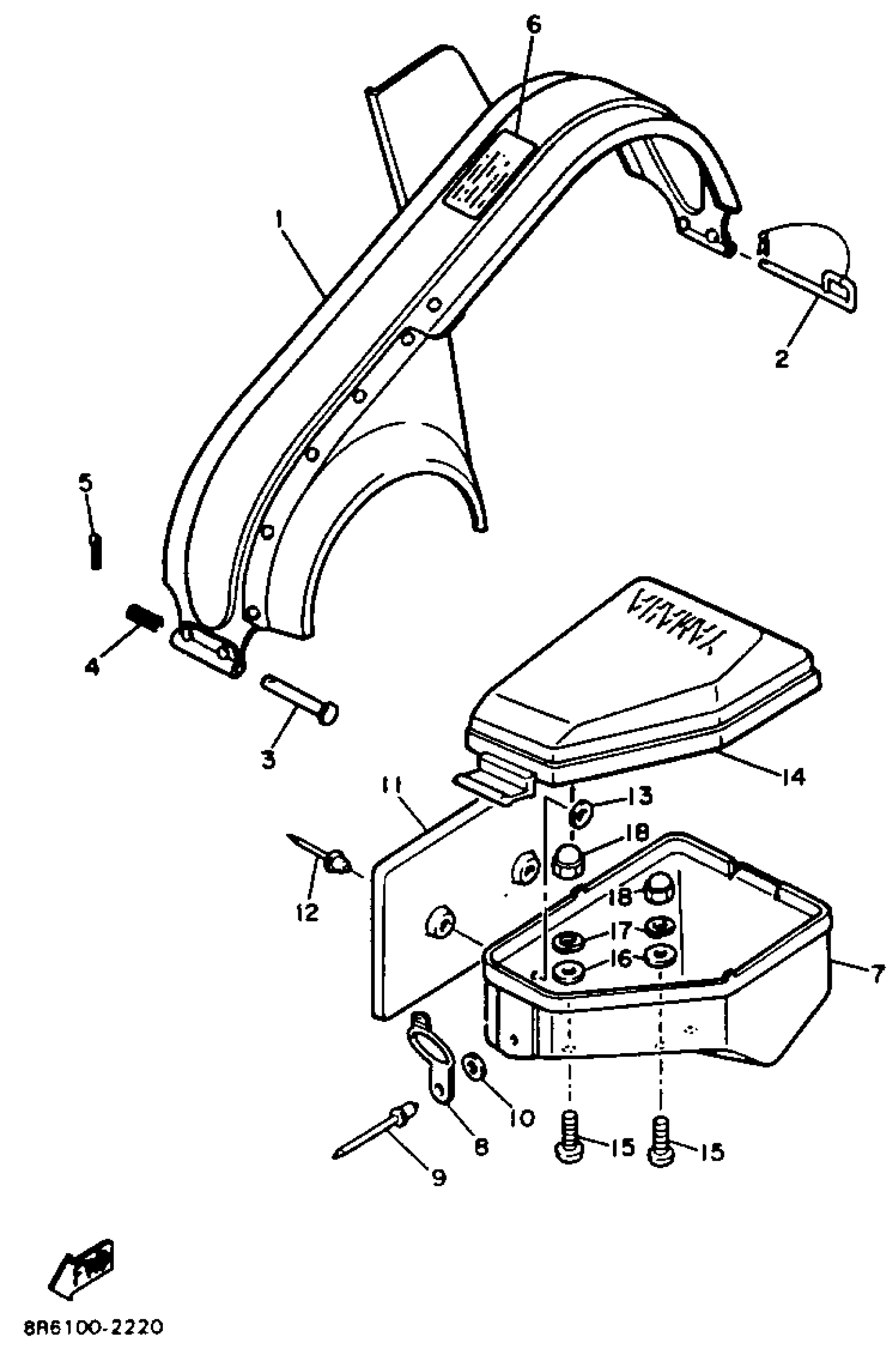

Yamaha SR540H (SRV) 1984 GUARD - LUGGAGE BOX Diagram

#

Description
Price

1

GUARD, DRIVE

8R6-77311-02-00

Unavailable

2

SHAFT

8F3-77327-00-00

Unavailable

3

PIN(8E7)

91701-06082-00

$5.60

4

SPRING, COMPRESSION

90501-08661-00

Unavailable

5

CLIP

90468-18008-00

Unavailable

6

LABEL, WARNING 1

8R6-77761-00-00

Unavailable

7

BOX, TOOL

8N8-77381-00-00

Unavailable

8

HOOK 1

8K4-77386-00-00

Unavailable

9

RIVET, BLIND (8R6)

90267-48086-00

$4.14

10

WASHER, PLATE

90201-04027-00

$3.02

11

PROTECTOR

8N8-77373-00-00

Unavailable

12

RIVET, BLIND (8K2)

90267-48079-00

$3.50

13

WASHER, PLATE

90201-04027-00

$3.02

14

LID, TOOL BOX

8N8-77382-00-00

Unavailable

15

SCREW, BINDING

98907-06014-00

$7.99

16

WASHER, PLATE

90201-06380-00

Unavailable

17

WASHER, SPRING

92907-06100-00

Unavailable

18

NUT(4MY)

95307-06800-00

Unavailable
