1984 Yamaha SRV (SR540H) Engine Bracket Diagram

← All diagrams

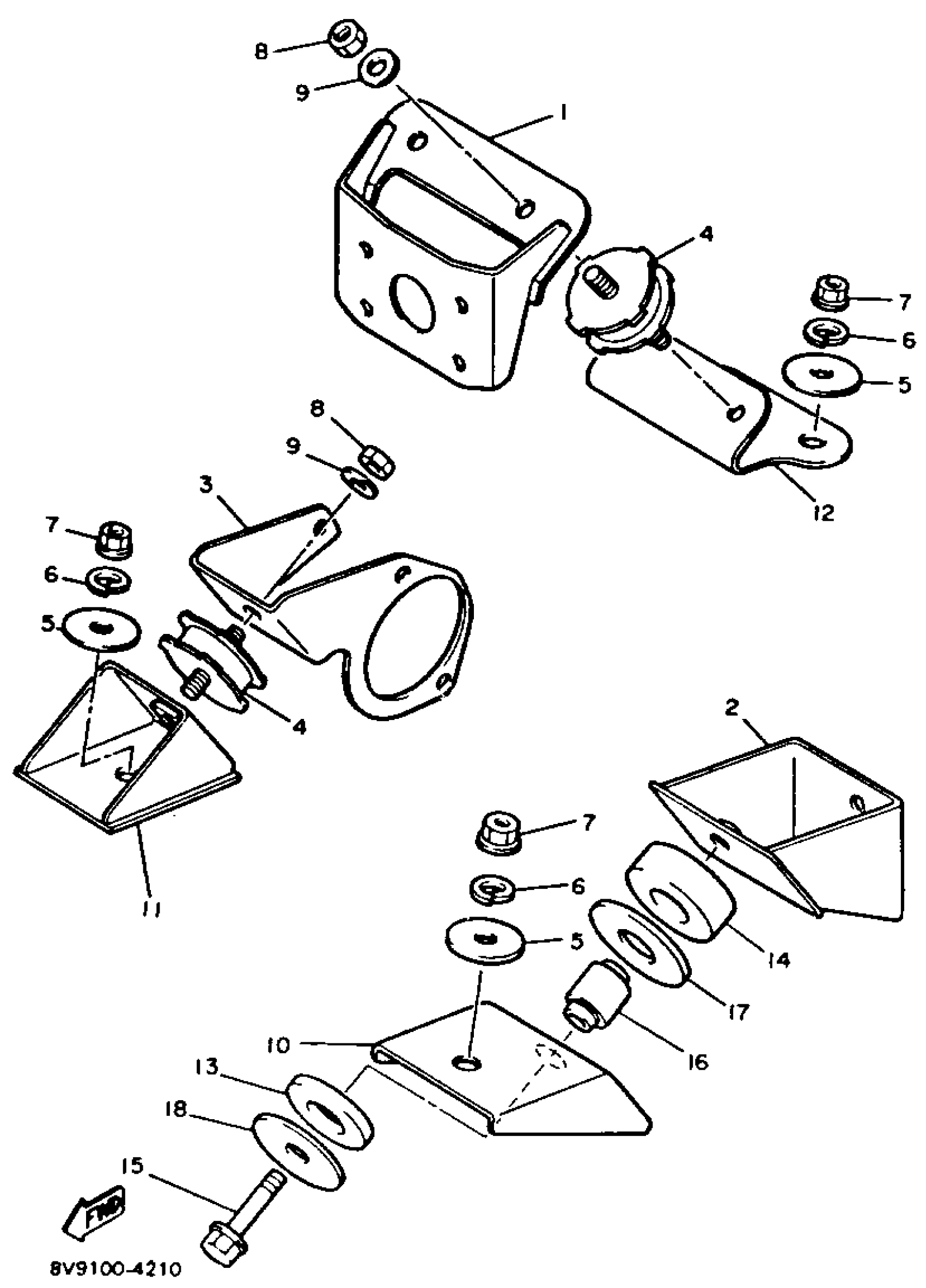

Find the part on the Engine Bracket diagram for your 1984 Yamaha SRV (SR540H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1984 Yamaha SRV (SR540H) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

8K4-21411-00-00

1
Out of stock

2

BRACKET,ENGINE 2

99999-02583-00

1
Out of stock

3

BRACKET, ENGINE 3

8K4-21429-00-00

1
Out of stock

4

DAMPER 2

8N8-21486-00-00

1
Out of stock

5

WASHER, PLATE (856)

90201-10321-00

1

$5.43

In stock

6

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

7

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

8

NUT(3BM)

95314-10600-00

1

$1.74

In stock

9

WASHER, PLATE

92990-10600-00

1

$2.61

In stock

10

BRACKET, FRONT LOWER 1

8AT-21417-00-00

1

$16.71

In stock

11

BRACKET, FRONT UNDER 2

8H8-21418-01-00

—

$16.71

In stock

12

BRACKET, REAR LWR 1

8K4-21427-00-00

1
Out of stock

13

DAMPER 2

8V9-21486-00-00

—

$29.06

In stock

14

DAMPER, RUBBER 1

8V9-21485-00-00

1

$20.58

In stock

15

BOLT, FLANGE(4GB)

95817-10045-00

1

$4.52

In stock

16

BUSH, SOLID (8V9)

90380-10129-00

—

$53.78

In stock

17

WASHER, PLATE (8V9)

90201-257G7-00

—

$14.45

In stock

18

WASHER (888)

90201-10151-00

—

$3.94

In stock

19

CLAMP (3Y2)

90464-16039-00

—
Out of stock
