- SR540H (SRV) 1984
CARBURETOR

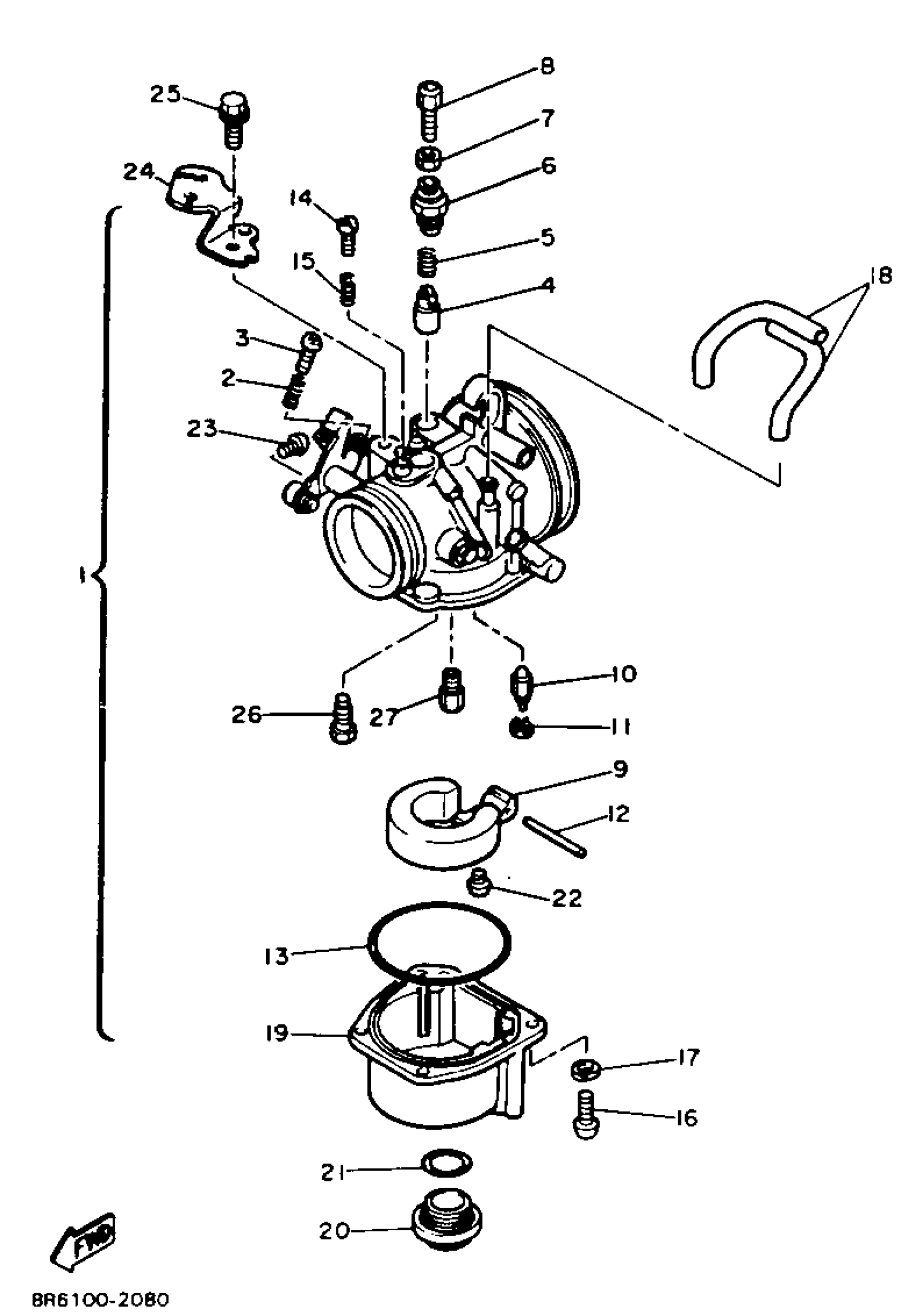

Yamaha SR540H (SRV) 1984 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
8R6-14101-01-00
Unavailable
2
. SPRING, COMPRESSION
90501-12229-00
Unavailable
3
. SCREW, PAN HEAD
90157-04010-00
Unavailable
4
PLUNGER, STARTER
371-14993-60-00
$36.99
5
SPRING (8E7)
90501-08443-00
$10.49
6
CAP, PLUNGER
8A6-14969-00-00
$28.99
7
. NUT, CABLE ADJUSTING
8E7-14161-00-00
Unavailable
8
BOLT, STARTER CABLE ADJUSTING
8A6-14977-00-00
$20.99
9
FLOAT
8G6-14985-01-00
$40.99
10
VALVE,FLOAT
8E7-14546-01-00
$62.99
11
CLIP
633-14159-00-00
$15.49
12
. PIN, FLOAT ARM
663-14548-00-00
Unavailable
13
WASHER, FLOAT CHAMBER
8G6-14984-00-00
$18.99
14
SCREW, ADJUST
8G6-14521-00-00
Unavailable
15
SPRING, COMPRESSION
90501-08214-00
$7.49
16
. SCREW, pan head (98502-04040)
[97-60204-11-40
Unavailable
17
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
18
. NET, FILTER
8G6-14994-01-00
Unavailable
19
. BODY, FLOAT CHAMBER
8K4-14980-00-00
Unavailable
20
. ROD
8M7-14992-00-00
Unavailable
21
O-RING (8A6)
93210-19309-00
Unavailable
22
SCREW, FLAT
98707-04008-00
Unavailable
23
SCREW
(8F3-14591-00-00)
Unavailable
24
. PLATE, STAY
8R6-14572-00-00
Unavailable
25
. SCREW
8G6-14592-00-00
Unavailable
26
. JET #92
8G6-14948-24-00
Unavailable
27
. JET, main (#115)
8A6-14516-15-00
Unavailable
27
. JET, MAIN #120
8A6-14516-20-00
Unavailable
27
. JET, MAIN #125
8A6-14516-25-00
Unavailable
27
. JET, MAIN #130
8A6-14516-30-00
Unavailable
27
. JET, MAIN #135
8A6-14516-35-00
Unavailable
27
. JET, MAIN #140
8A6-14516-40-00
Unavailable
27
. JET, MAIN #145
8A6-14516-45-00
Unavailable
27
. JET, MAIN #150
8A6-14516-50-00
Unavailable
27
. JET, MAIN #155
8A6-14516-55-00
Unavailable
