AIR FILTER

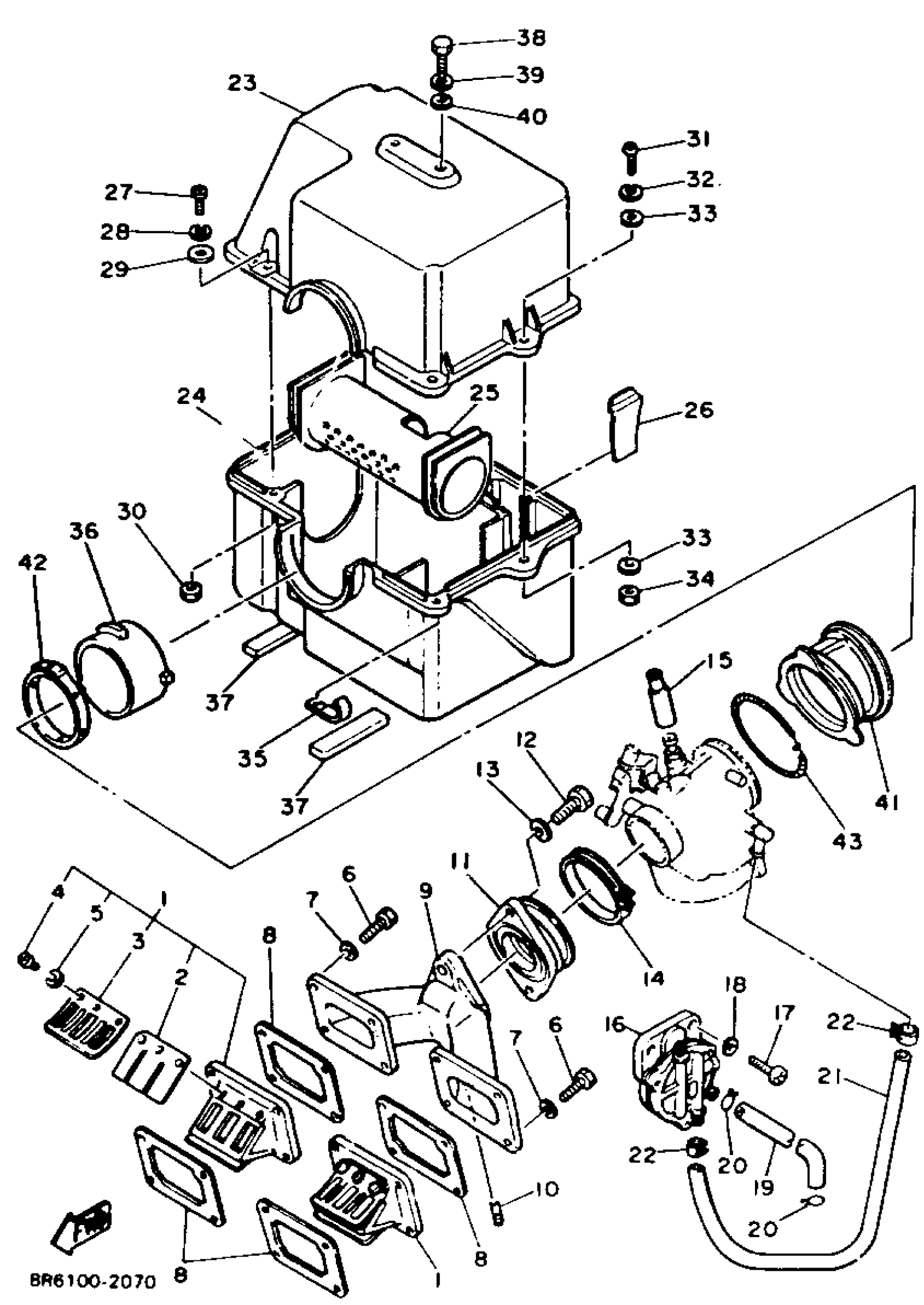

Yamaha SR540H (SRV) 1984 AIR FILTER Diagram
#
1
REED VALVE ASSEMBLY
3R5-13610-00-00
Unavailable
2
REED, VALVE
3R5-13613-00-00
$45.99
3
. STOPPER, REED VALVE
2X5-13616-00-00
Unavailable
4
SCREW, PAN HEAD (J10)
98580-03008-00
$3.55
5
WASHER, SPRING
92990-03100-00
$8.49
6
BOLT, HEXAGON
97017-06025-00
$4.24
7
WASHER, PLAIN (646)
92990-06600-00
$2.80
8
GASKET, VALVE SEAT
80L-13621-01-00
$10.99
9
JOINT, CARBURETOR
8R6-13565-00-00
Unavailable
10
NOZZLE
824-13552-00-00
Unavailable
11
MANIFOLD, INTAKE
8H8-13555-01-00
Unavailable
12
BOLT, HEXAGON
97017-08025-00
$10.49
13
.. WASHER, PLATE
92990-08600-00
Unavailable
14
CLAMP, HOSE
90460-60084-00
Unavailable
15
BOOT
8J5-26352-00-00
Unavailable
16
FUEL PUMP ASSY
8K4-24410-01-00
Unavailable
17
SCREW PAN HEAD
98580-06020-00
Unavailable
18
WASHER, SPRING
92995-06100-00
Unavailable
19
HOSE (L450)
90445-10144-00
Unavailable
20
CLIP
90467-090A2-00
Unavailable
21
HOSE
90446-11326-00
Unavailable
22
CLIP
90467-11028-00
Unavailable
23
SILENCER, INTAKE 1
8K4-14431-00-00
Unavailable
24
SILENCER, INTAKE 2
8K4-14441-01-00
Unavailable
25
PIPE
8L0-14466-00-00
Unavailable
26
PLATE
8K4-14477-00-00
Unavailable
27
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
28
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
29
WASHER, PLAIN (646)
92990-05600-00
Unavailable
30
NUT, HEXAGON SMALL
95317-05700-00
Unavailable
31
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
32
WASHER, SPRING
92995-06100-00
Unavailable
33
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
34
NUT, HEXAGON
95380-06600-00
Unavailable
35
CLAMP(7RG)
90462-06232-00
Unavailable
36
PIPE
8N8-14465-00-00
Unavailable
37
DAMPER 1
8K4-14425-00-00
Unavailable
38
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
39
WASHER, SPRING
92995-06100-00
Unavailable
40
WASHER, PLATE (4L0)
90201-062A8-00
Unavailable
41
JOINT, AIR CLEANER1
8N8-14453-01-00
Unavailable
42
SPRING TENSION 808144550000
90506-06083-00
Unavailable
43
HOSE CLAMP ASSY
90450-75002-00
Unavailable
