1983 Yamaha SRV (SR540G) Stabilizer KIT Optional Diagram

← All diagrams

Find the part on the Stabilizer KIT Optional diagram for your 1983 Yamaha SRV (SR540G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

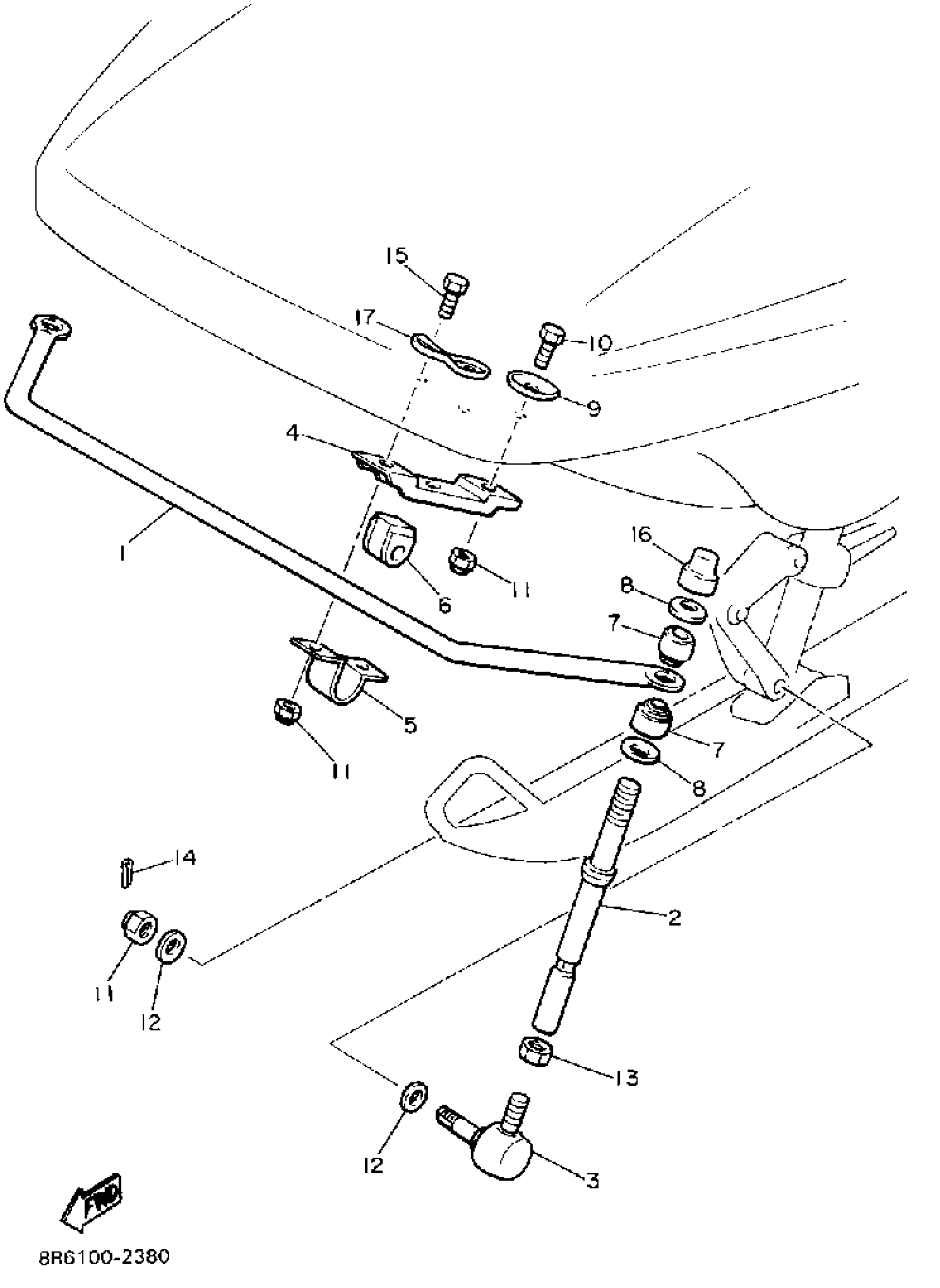

1983 Yamaha SRV (SR540G) Stabilizer KIT Optional Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STABILIZER KIT-SRV (8L9-W0051-00)

8U7-W0051-00-00

1
Out of stock

2

LINK, STABLZR FRONT

8L9-2386F-10-00

1
Out of stock

3

JOINT, UNIVERSAL 1

8L9-23841-10-00

1
Out of stock

4

BRACKET 15

8L9-23896-10-00

1
Out of stock

5

COVER, STABLZR FRT

8M6-2386H-10-00

1
Out of stock

6

BUSH, STABLZR FRONT

8L9-2386G-10-00

1
Out of stock

7

CUSHION

8L9-2386J-10-00

1
Out of stock

8

RETAINER

8L9-2386K-10-00

1
Out of stock

9

WASHER

8L9-23779-10-00

1
Out of stock

10

BOLT, HEXAGON

(97306-10020-00)

1
Out of stock

11

NUT, NYLON

95707-10300-00

1

$6.68

In stock

12

WASHER, PLATE (8M6)

90201-115A7-00

1

$2.49

In stock

13

NUT (3WP1)

95317-10700-00

1

$6.17

In stock

14

PIN, COTTER

91490-20025-00

1

$1.31

In stock

15

BOLT, HEXAGON

(97306-10025-00)

1
Out of stock

16

CAP 2

8L9-23742-10-00

1
Out of stock

17

PLATE

8L9-23774-10-00

1
Out of stock
