1983 Yamaha SRV (SR540G) SKI Diagram

← All diagrams

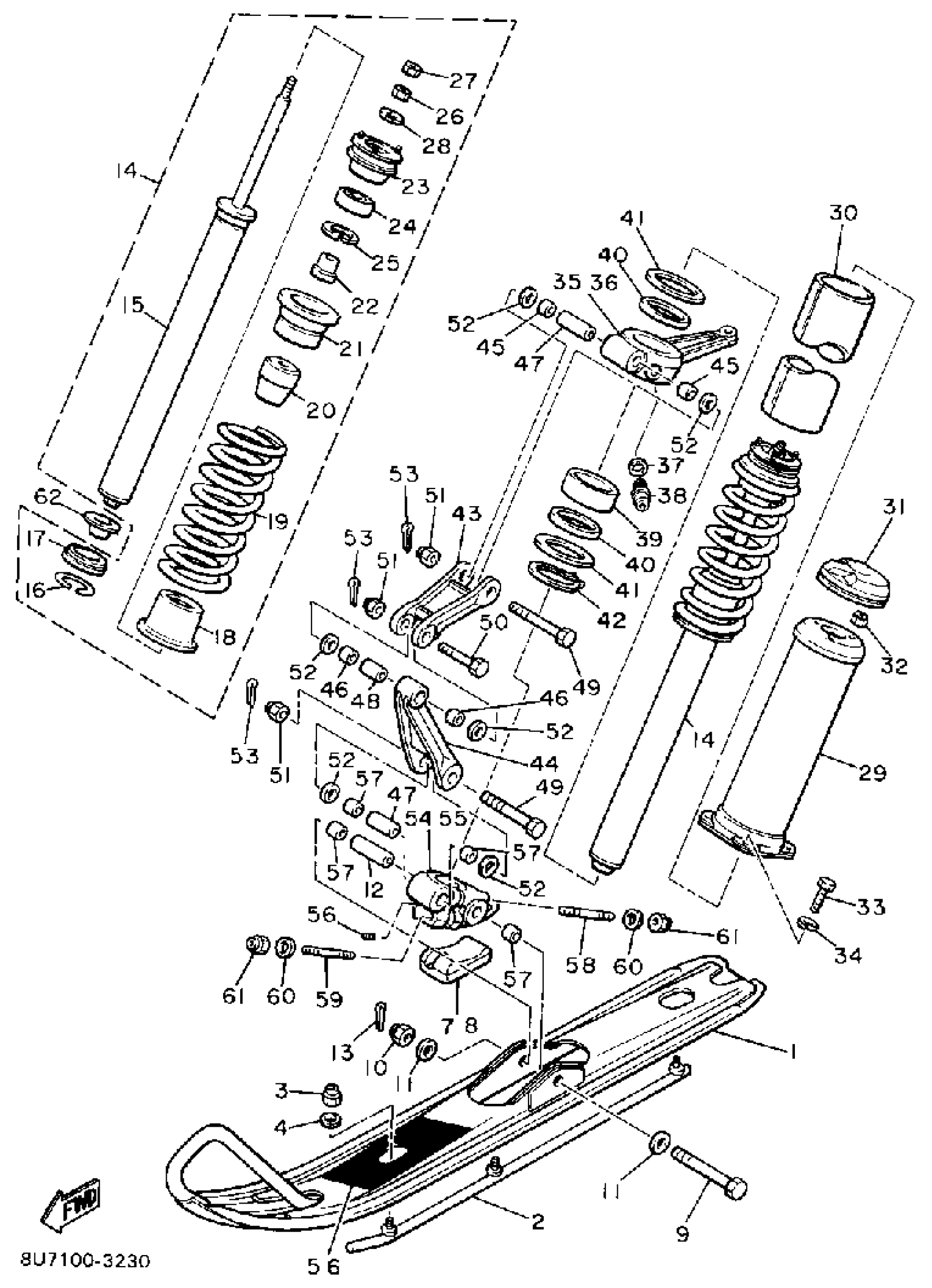

Find the part on the SKI diagram for your 1983 Yamaha SRV (SR540G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Yamaha SRV (SR540G) SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8L0-23710-00-00

1
Out of stock

2

SKI RUNNER, 1

888-23731-01-XX

1
Out of stock

3

NUT, U

95617-08100-00

1

$6.78

In stock

4

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

5

EMBLEM 10

8U7-77365-00-00

1
Out of stock

6

EMBLEM 11

8U7-77366-00-00

1
Out of stock

7

STOPPER 1

8L0-23743-01-00

1
Out of stock

8

STOPPER 2

8L0-23744-01-00

1
Out of stock

9

BOLT, WITH HOLE

90102-10040-00

1
Out of stock

10

NUT, NYLON

95707-10300-00

1

$6.68

In stock

11

WASHER(6TA)

92907-10600-00

1
Out of stock

12

COLLAR 802473690000

90387-10090-00

1

$17.48

In stock

13

PIN, COTTER

91490-20025-00

1

$1.31

In stock

14

ABSORBER ASSEMBLY 1

8L9-2376A-00-00

1
Out of stock

15

. DAMPER SUB-ASSEMBLY

8L9-22401-00-00

1
Out of stock

16

. CIRCLIP, OUTER

93440-36087-00

1
Out of stock

17

SEAT, SPRING 1

(8L9-23768-00-00)

1
Out of stock

18

. SEAT, SPRING 2

8L9-23777-00-00

1
Out of stock

19

SPRING, COMPRESSION (8L9)

90501-75612-00

—

$38.49

In stock

20

. BUMP, STOP

8L0-22493-00-00

1
Out of stock

21

PLATE, BACK UP

8AB-23788-00-00

1
Out of stock

22

. COLLAR

90387-100A5-00

1
Out of stock

23

. HOLDER, BEARING

8L0-2376H-00-00

1
Out of stock

24

BEARING(3DL)

93306-20226-00

—

$33.15

In stock

25

CIRCLIP(47Y)

99009-35500-00

—

$6.17

In stock

26

. NUT

90170-08220-00

1
Out of stock

27

NUT(6L2)

95333-08600-00

—

$3.20

In stock

28

WASHER, PLATE (4W3)

90201-086A3-00

—

$6.29

In stock

29

HOLDER, ABSORBER

8L9-2376J-00-00

1
Out of stock

30

PROTECTOR

8L0-2376R-00-00

—

$6.58

In stock

31

PROTECTOR 3

8M6-77553-00-00

1
Out of stock

32

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

33

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

34

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

35

ARM, OUTSIDE 1

8U7-23851-00-00

1
Out of stock

36

ARM, OUTSIDE 2

8U7-23852-00-00

1
Out of stock

37

WASHER, PLATE (8U7)

90201-067F9-00

—

$2.78

In stock

38

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

39

—

$33.18

In stock

40

OIL SEAL (8U7)

93109-53036-00

—

$10.34

In stock

41

WASHER, PLATE (8L9)

90201-536A1-00

—

$3.66

In stock

42

CIRCLIP (8L9)

93410-52061-00

—

$10.51

In stock

43

ARM, FRONT 1

8L0-2382E-01-00

—

$35.28

In stock

44

ARM, FRONT 2

8L0-2382F-00-00

—

$36.58

In stock

45

—

$9.15

In stock

46

—

$9.29

In stock

47

COLLAR(89A)

90387-101Y9-00

—

$20.45

In stock

48

COLLAR (8L0)

90387-100A4-00

—

$5.62

In stock

49

BOLT, WITH HOLE (8L0)

90102-10039-00

—

$10.38

In stock

50

BOLT, WITH HOLE

90102-10038-00

1
Out of stock

51

NUT, NYLON

95707-10300-00

1

$6.68

In stock

52

WASHER PLATE 626441260000

90202-14037-00

—
Out of stock

53

PIN, COTTER

91490-20025-00

1

$1.31

In stock

54

BRACKET, 1 (L.H)

8L9-2376E-00-00

1
Out of stock

55

BRACKET 2 (R.H)

8L9-2377E-00-00

1
Out of stock

56

BOLT, SET (8K2)

90113-06039-00

—

$6.97

In stock

57

—

$9.15

In stock

58

BOLT, STUD

90116-08323-00

1
Out of stock

59

BOLT, STUD 3

95617-08640-00

—

$3.98

In stock

60

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

61

NUT, NYLON

95717-08300-00

—

$2.57

In stock

62

CAP 1

8L0-23741-00-00

1
Out of stock
