Description

Price

1

SEC FXD SHV

8K4-17660-00-00

Unavailable

2

SEC SLIDING SHEAVE

8V8-17670-10-00

Unavailable

3

SHOE RAMP

8X6-17688-00-00

$8.49

4

SEAT, SEC SPRING

8U7-17684-01-00

Unavailable

5

SHAFT, SECONDARY

82M-17681-00-00

Unavailable

6

BOLT, WASHER BASED

90105-14236-00

Unavailable

7

WASHER, PLATE

90201-140A6-00

Unavailable

8

COLLAR

90387-143G0-00

Unavailable

9

WASHER, PLATE (T=0.5)

90201-222F0-00

Unavailable

10

WASHER, PLATE (8L8)

90201-225A4-00

$9.49

11

WASHER, PLATE (888)

90201-25526-00

$9.49

12

WASHER, PLATE (888)

90201-25527-00

$10.49

13

WASHER, PLATE (8R6)

90201-252F1-00

$8.49

14

BEARING

888-17678-00-00

Unavailable

15

HOUSING, BEARING

8K4-47631-01-00

Unavailable

16

BOLT, HEXAGON

97017-08016-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

BOLT

(90109-08680-00)

Unavailable

19

NUT, NYLON

95717-08300-00

Unavailable

20

WASHER (8A7)

90201-08452-00

Unavailable

21

SPRING, TORSION (8U7)

90508-50571-00

Unavailable

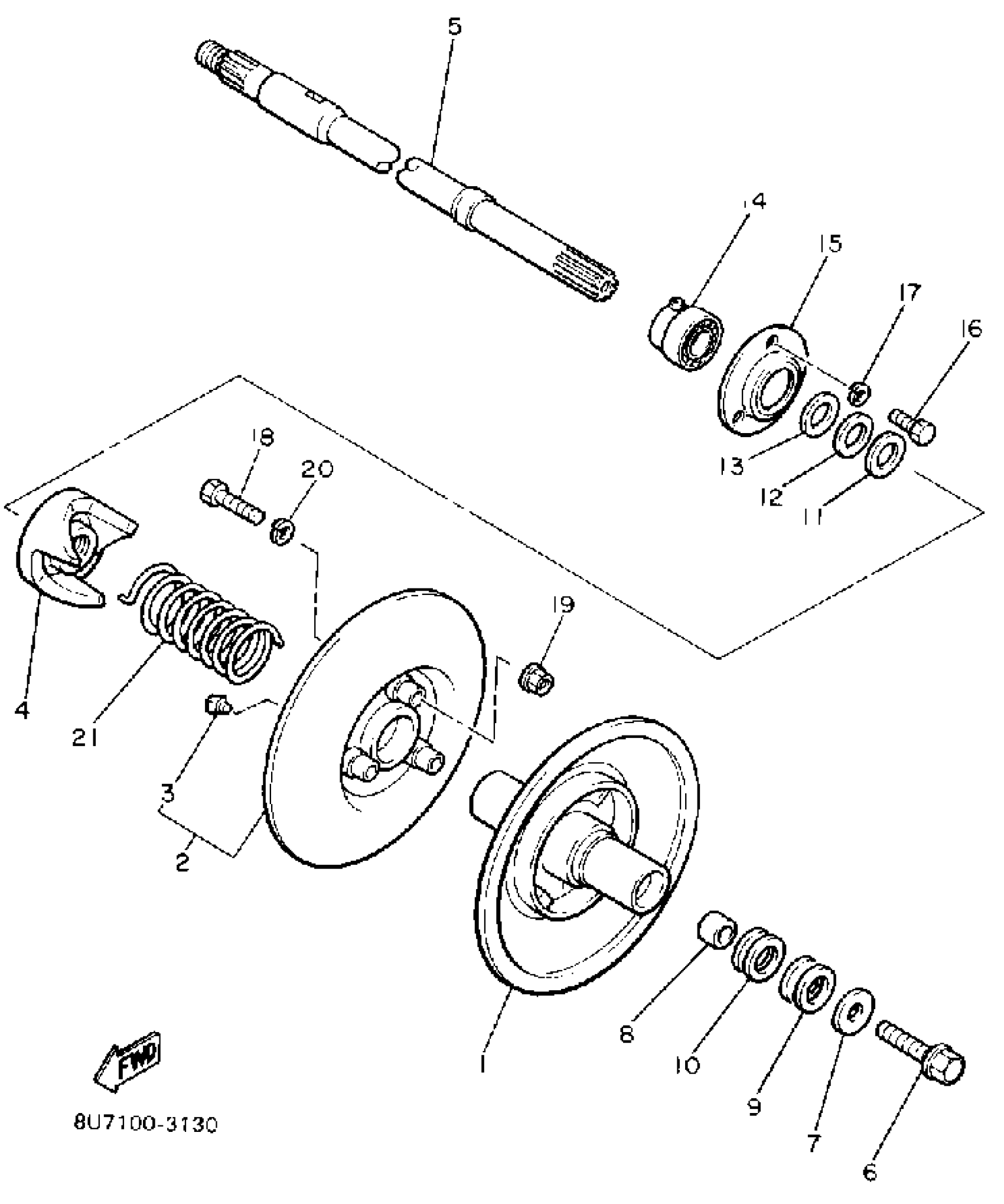

Yamaha SR540G (SRV) 1983 SECONDARY SHEAVE Diagram

SEC FXD SHV

SEC SLIDING SHEAVE

SHOE RAMP

SEAT, SEC SPRING

SHAFT, SECONDARY

BOLT, WASHER BASED

WASHER, PLATE

COLLAR

WASHER, PLATE (T=0.5)

WASHER, PLATE (8L8)

WASHER, PLATE (888)

WASHER, PLATE (888)

WASHER, PLATE (8R6)

BEARING

HOUSING, BEARING

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

BOLT

NUT, NYLON

WASHER (8A7)

SPRING, TORSION (8U7)
