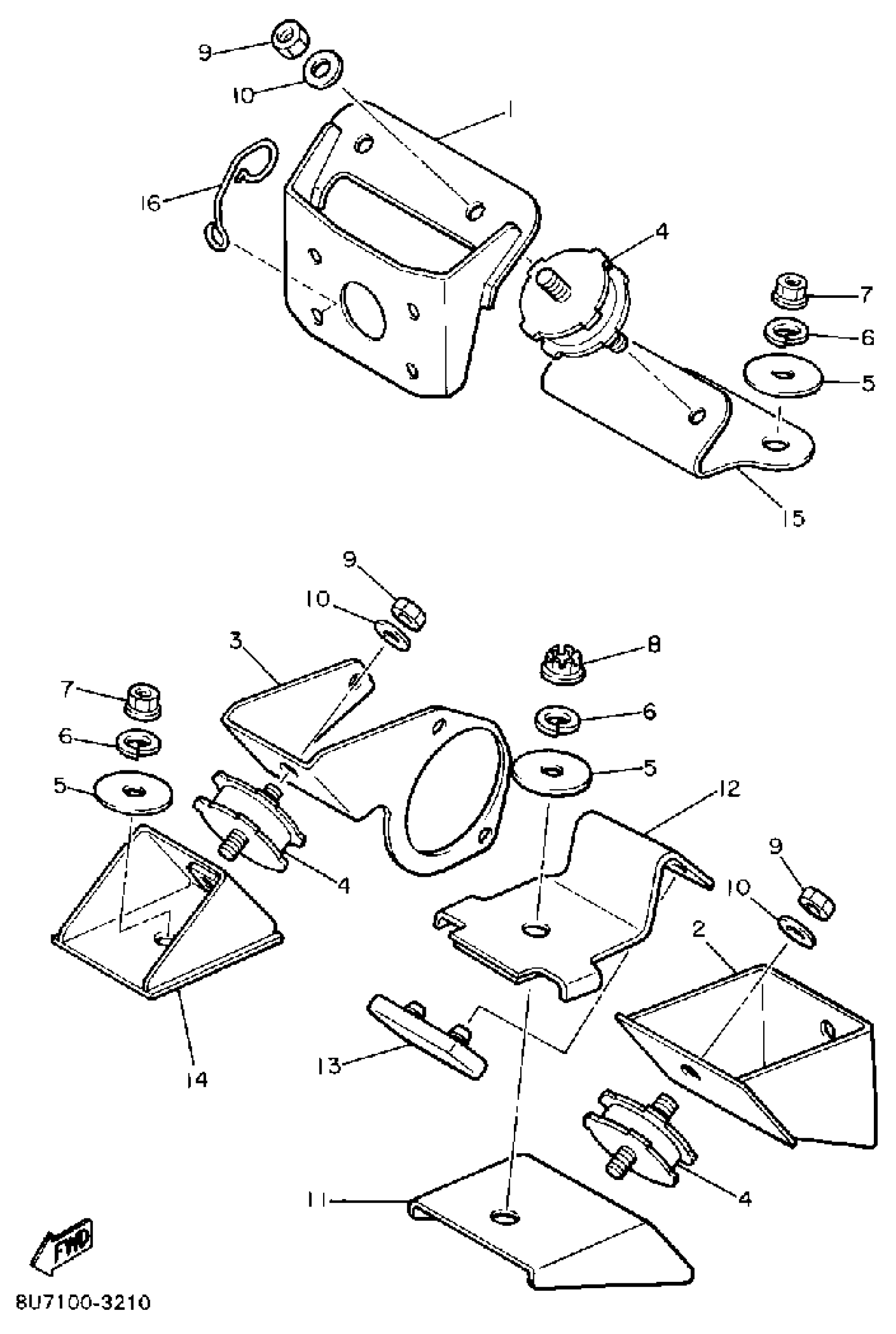

Yamaha SR540G (SRV) 1983 ENGINE BRACKET Diagram

#

Description
Price

1

BRACKET, ENGINE 1

8K4-21411-00-00

Unavailable

2

BRACKET, ENGINE 2

8R6-21419-00-00

Unavailable

3

BRACKET, ENGINE 3

8K4-21429-00-00

Unavailable

4

DAMPER 2

8N8-21486-00-00

Unavailable

5

WASHER, PLATE (856)

90201-10321-00

$8.49

6

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

7

NUT, FLANGE(3BM)

95704-10500-00

$4.29

8

NUT, SELF-LOCKING (8U7)

90185-10115-00

Unavailable

9

NUT(3BM)

95314-10600-00

$2.39

10

WASHER, PLATE

92990-10600-00

Unavailable

11

BRACKET, FRONT LOWER 1

85L-21417-00-00

Unavailable

12

STOPPER

8R6-2149E-00-00

Unavailable

13

DAMPER, STOPPER

8R6-2140A-00-00

Unavailable

14

BRACKET, FRONT UNDER 2

8H8-21418-01-00

Unavailable

15

BRACKET, REAR LWR 1

8K4-21427-00-00

Unavailable

16

CLAMP (706)

90465-06100-00

Unavailable
