1983 Yamaha SRV (SR540G) Crankshaft Piston Diagram

← All diagrams

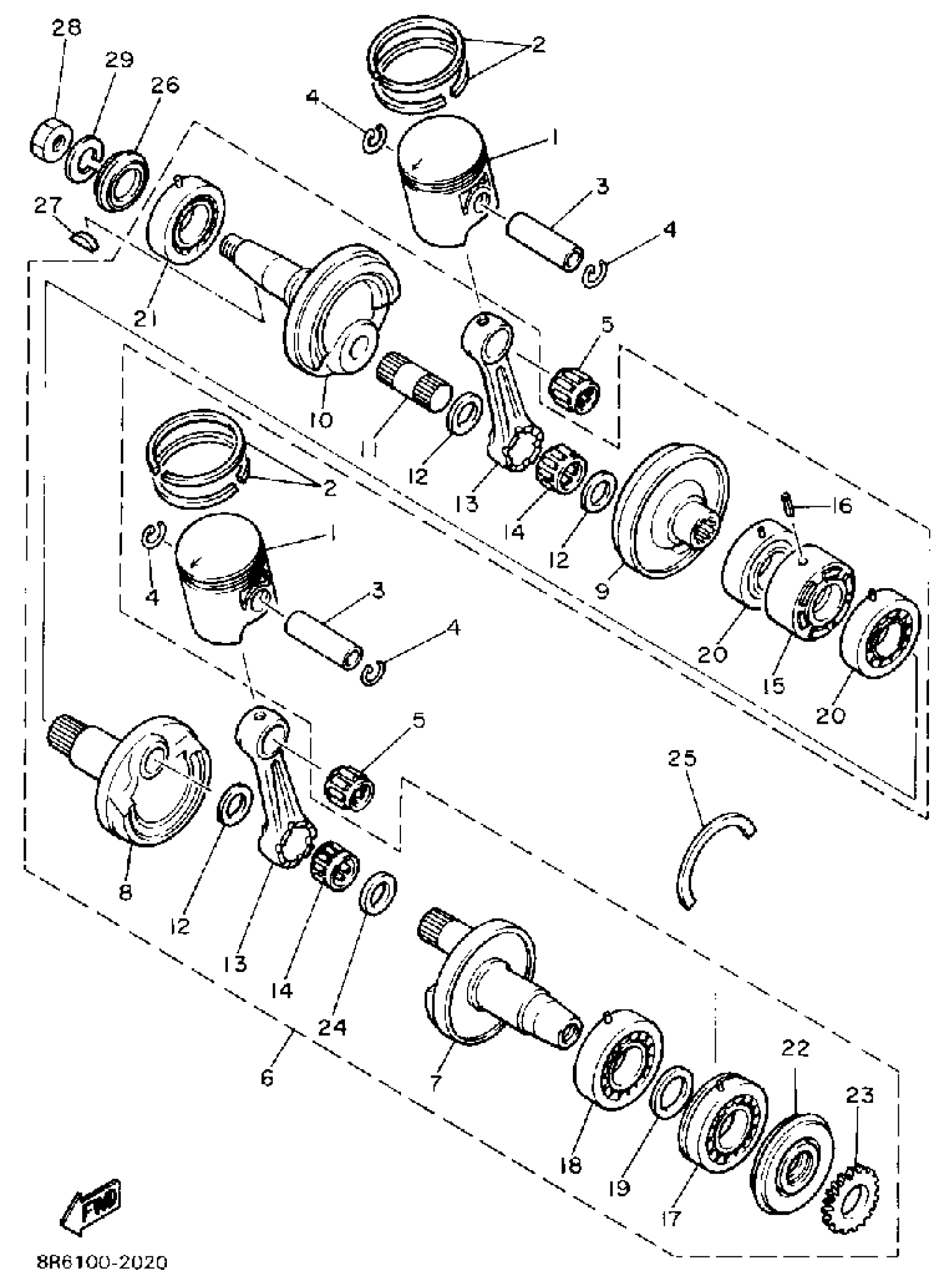

Find the part on the Crankshaft Piston diagram for your 1983 Yamaha SRV (SR540G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Yamaha SRV (SR540G) Crankshaft Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON (STD)

8R6-11631-00-95

1

$158.29

In stock

1

PISTON (0.25MM O/S)

8R6-11635-00-00

1

$168.63

In stock

1

PISTON (2ND 0/S 0.50MM)

8R6-11636-00-00

—

$155.82

In stock

2

PISTON RING SET (STD)

8R6-11601-00-00

1

$60.03

In stock

2

PISTON RING SET (1ST O/S)

8R6-11601-10-00

1

$58.52

In stock

2

PISTON RING SET (2ND O/S)

8R6-11601-20-00

1

$36.29

In stock

3

PIN, PISTON

8H8-11633-00-00

1

$30.72

In stock

4

CIRCLIP (8H0)

93450-21053-00

1

$3.43

In stock

5

BRG,CYL-CAL ROLLER 25G KY

93310-320G0-00

1

$40.32

In stock

6

CRANKSHAFT ASSEMBLY

8R6-11400-01-00

1
Out of stock

7

CRANK 1

99999-03170-00

1
Out of stock

8

. CRANK 2

8R6-11422-00-00

1
Out of stock

9

. CRANK 3

8R6-11432-01-00

1
Out of stock

10

. CRANK 4

8H8-11442-00-00

1
Out of stock

11

. PIN, CRANK 1

8H8-11681-00-00

1
Out of stock

12

WASHER (152-11685-00)

90209-24073-00

—

$10.08

In stock

13

ROD, CONNECTING

8R6-11651-00-00

—

$117.28

In stock

14

BRG,CYL-CAL ROLLER (8R6)

93310-524K4-00

—

$110.95

In stock

15

SEAL, LABYRINTH 1

8H8-11515-00-00

—

$35.92

In stock

16

PIN, SPRING (663)

91690-30010-00

1

$5.46

In stock

17

BEARING (8R6)

93306-30625-00

—

$76.42

In stock

18

BEARING (8R6)

93306-30625-00

—

$76.42

In stock

19

WASHER (8H0)

90201-34683-00

—
Out of stock

20

BEARING (8G8)

93306-20617-00

—

$69.94

In stock

21

BEARING (8G8)

93306-20617-00

—

$69.94

In stock

22

OIL SEAL (878).

93103-32095-00

—

$30.09

In stock

23

GEAR, PUMP DRIVE

8K2-13178-00-00

—

$36.28

In stock

24

WASHER, CRANK PIN

8A7-11685-00-00

—

$10.68

In stock

25

CIRCLIP (8H8)

93440-78069-00

—

$5.72

In stock

26

OIL SEAL(83R)

93103-32156-00

—

$26.08

In stock

27

KEY, WOOD RUFF (324)

90280-05014-00

—

$7.82

In stock

28

NUT

90170-16425-00

—
Out of stock

29

WASHER(JN5)

92907-16100-00

—

$12.08

In stock
