Description

Price

1

CDI MAGNETO ASSEMBLY

8N8-85500-20-00

Unavailable

2

. COIL SOURCE 1

8N4-85511-20-00

Unavailable

3

. COIL, LIGHTING 1

8G8-85513-20-00

Unavailable

4

. COIL, PULSER (8N5-85580-20)

82M-85580-20-00

Unavailable

5

LEAD WIRE ASSEMBLY

(8N5-85515-20-00)

Unavailable

6

CLAMP, LEAD

104-81328-20-00

$6.99

7

SCREW, PAN

98507-05035-00

$8.49

8

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

9

SCREW, PAN HEAD

98507-04018-00

$2.19

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

. ROTOR ASSEMBLY (8K1-85550-20)

8J9-85550-20-00

Unavailable

16

SCREW, BIND(J39)

98980-06014-00

Unavailable

17

WASHER, PLATE 6261117600

90201-06043-00

Unavailable

18

GEAR, RING

8H8-81891-00-00

Unavailable

19

STAY, RING GEAR

8H8-81895-00-00

Unavailable

20

WASHER(JN5)

92907-08100-00

Unavailable

21

BOLT, HEX SKT HEADSOCKET HEAD

90110-08028-00

Unavailable

22

BOLT (661)

97013-06012-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

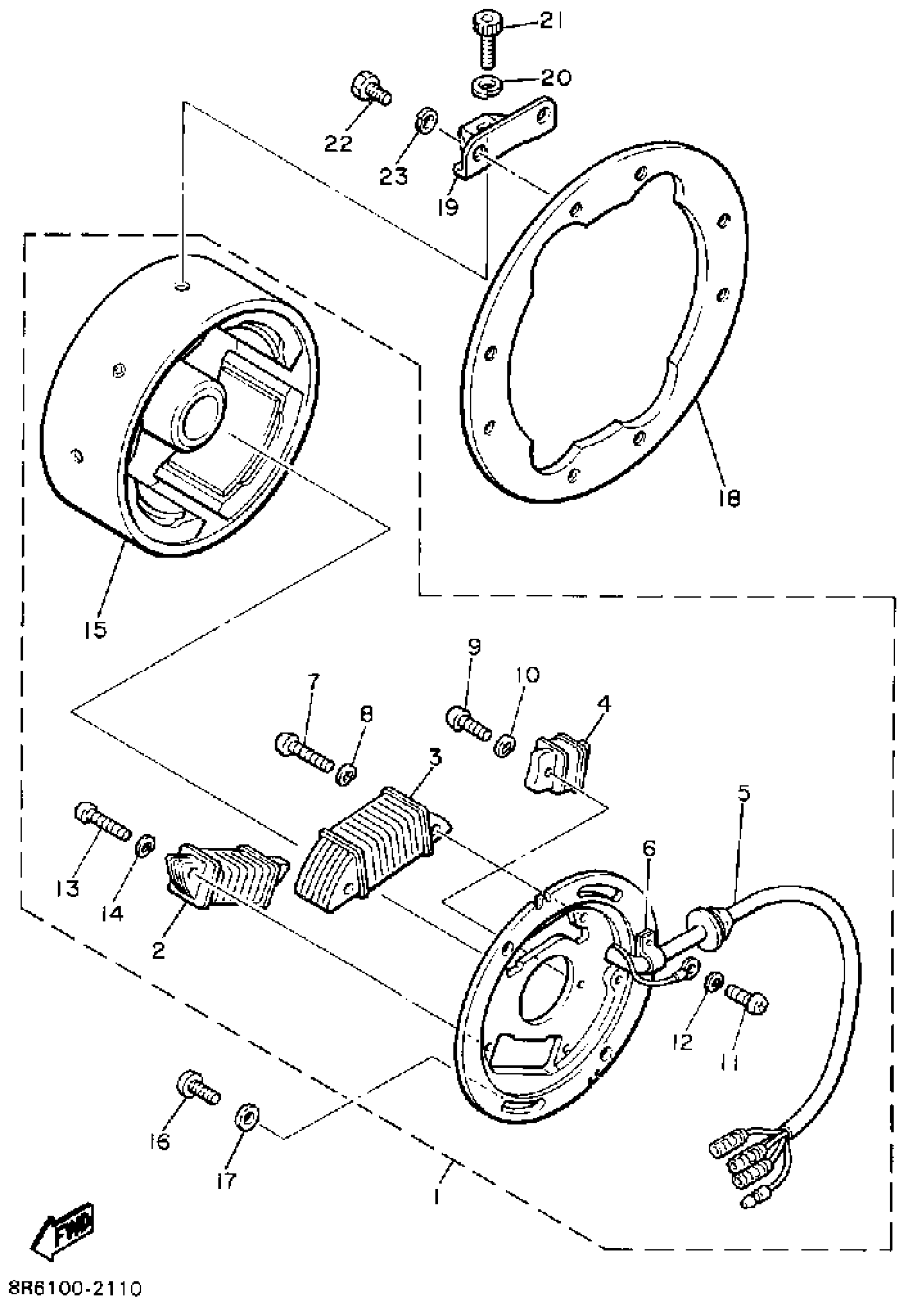

Yamaha SR540G (SRV) 1983 CDI MAGNETO Diagram

CDI MAGNETO ASSEMBLY

. COIL SOURCE 1

. COIL, LIGHTING 1

. COIL, PULSER (8N5-85580-20)

LEAD WIRE ASSEMBLY

CLAMP, LEAD

SCREW, PAN

YBS67-5 WASHER, SPRING

SCREW, PAN HEAD

YBS67-4 WASHER, SPRING

SCREW, PAN HEAD (713)

YBS67-4 WASHER, SPRING

SCREW, PAN HEAD(4MY)

YBS67-5 WASHER, SPRING

. ROTOR ASSEMBLY (8K1-85550-20)

SCREW, BIND(J39)

WASHER, PLATE 6261117600

GEAR, RING

STAY, RING GEAR

WASHER(JN5)

BOLT, HEX SKT HEADSOCKET HEAD

BOLT (661)

WASHER, SPRING
