AIR SHROUD FAN

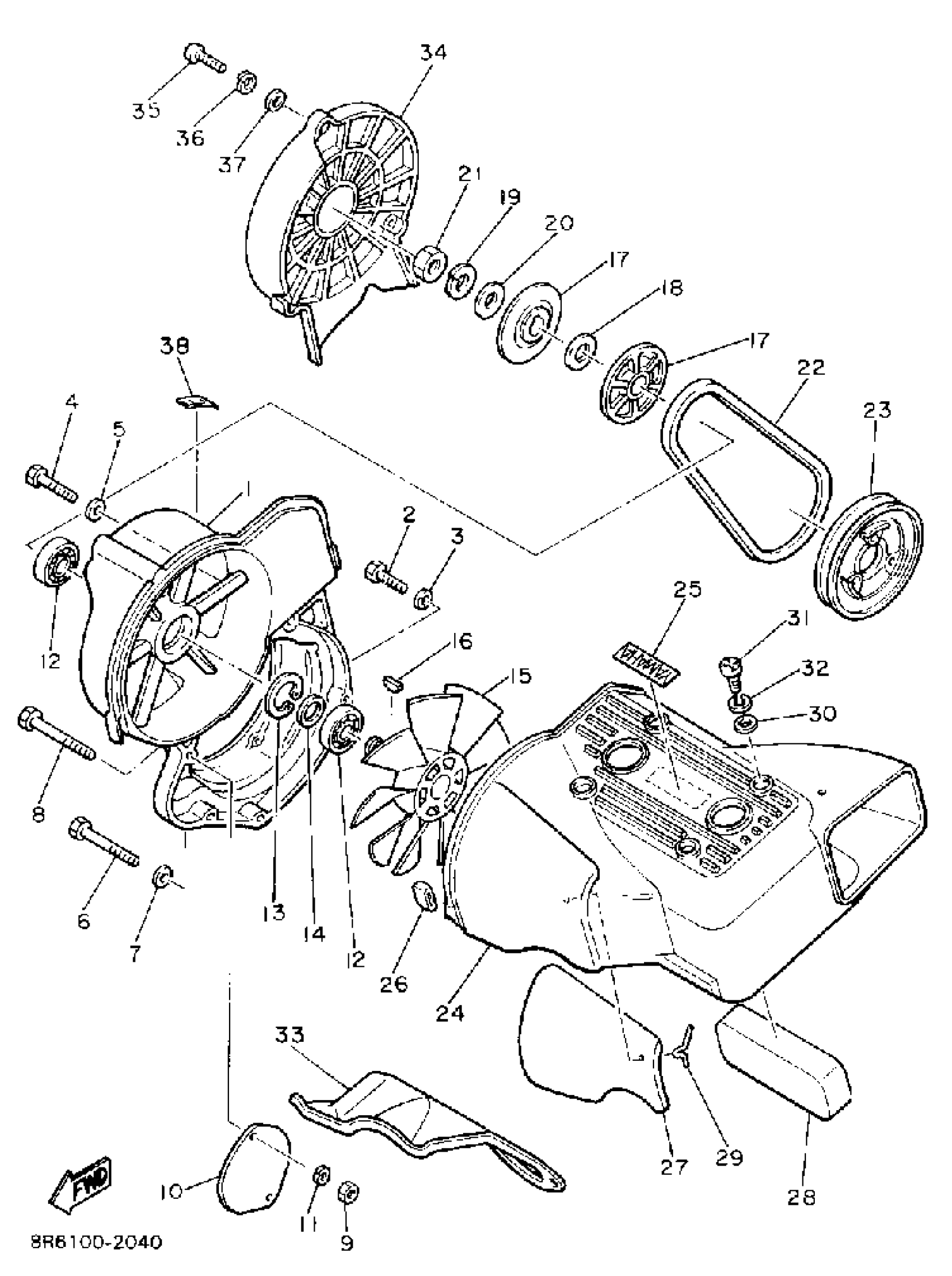

Yamaha SR540G (SRV) 1983 AIR SHROUD FAN Diagram
#
1
CASE, FAN
88T-12621-01-00
Unavailable
2
BOLT
97013-08035-00
$5.60
3
.. WASHER, PLATE
92990-08600-00
Unavailable
4
BOLT, HEXAGON
97013-08050-00
Unavailable
5
.. WASHER, PLATE
92990-08600-00
Unavailable
6
BOLT (6K8)
97013-08075-00
$7.49
7
.. WASHER, PLATE
92990-08600-00
Unavailable
8
BOLT (6K8)
97013-08075-00
$7.49
9
NUT(6L2)
95333-08600-00
$2.49
10
PLATE
8K4-12633-00-00
Unavailable
11
YBS67-8 WASHER, SPRING
92990-08100-00
$5.60
12
BEARING
93306-20348-00
$40.99
13
CIR-CLIP (70R)
93420-40064-00
Unavailable
14
WASHER, PLATE (8H8)
90201-17713-00
$7.49
15
FAN
8H8-12611-01-00
$89.99
16
KEY, WOOD RUFF (324)
90280-05014-00
Unavailable
17
PULLEY 2
8H8-12619-01-00
Unavailable
18
WASHER, CLAW (8H8)
90214-17017-00
Unavailable
18
WASHER, CLAW (1.0T)
90214-17018-00
Unavailable
19
WASHER(JN5)
92907-16100-00
Unavailable
20
WASHER, PLATE (8H8)
90201-17713-00
$7.49
21
NUT
90170-16425-00
Unavailable
22
BELT
8H8-12612-00-00
Unavailable
23
PULLEY 1
8H8-12618-01-00
Unavailable
24
AIR SHROUD CYL. 1
8H8-12651-02-00
Unavailable
25
EMBLEM
8H8-12629-00-00
Unavailable
26
DAMPER, AIR SHROUD CYLINDER
8H8-12658-00-00
Unavailable
27
DAMPER, SHROUD 2
8H8-12659-00-00
Unavailable
28
DAMPER, SHROUD 4
8H8-12669-00-00
Unavailable
29
PIN, COTTER
91401-16030-00
Unavailable
30
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
31
SCREW, BINDING
98907-06016-00
Unavailable
32
WASHER, SPRING
92907-06100-00
Unavailable
33
AIR SHROUD, CYLINDER 2
8H8-12652-00-00
Unavailable
34
COVER, FAN CASE
8L0-12616-00-00
Unavailable
35
SCREW, PAN HEAD (76T)
98517-06025-00
Unavailable
36
WASHER, SPRING
92907-06100-00
Unavailable
37
WASHER, PLATE (4L0)
90201-062A8-00
Unavailable
38
LABEL, CAUTION
8K4-12628-00-00
Unavailable
