TRACK SUSPENSION 1 SR540E

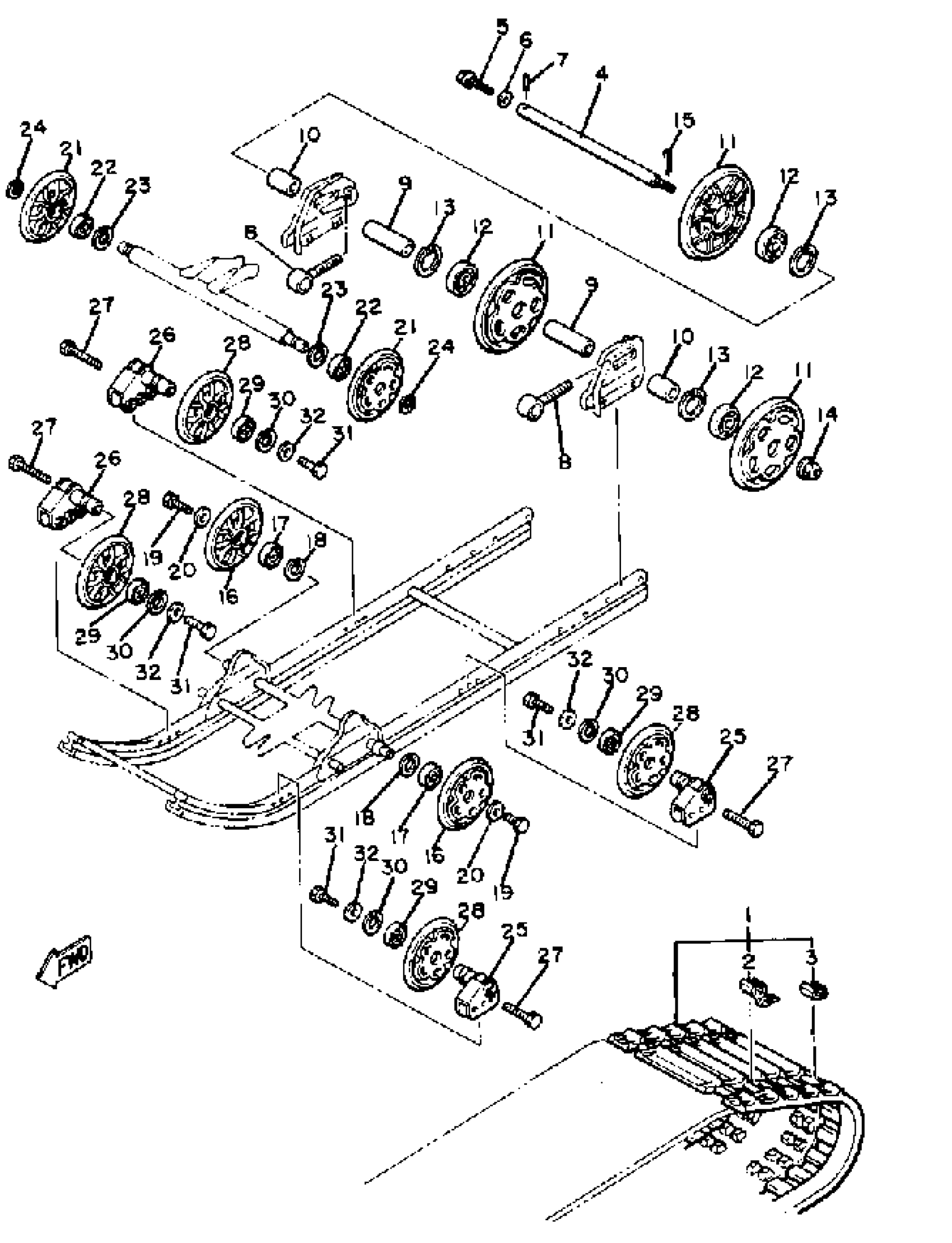

Yamaha SR540D 1980 TRACK SUSPENSION 1 SR540E Diagram
#
1
TRACK ASSEMBLY
87F-47110-01-00
Unavailable
2
PLATE, REINFORCEMENT
89A-47113-00-00
$5.49
3
METAL, SLIDE
8A5-47115-00-00
Unavailable
4
REAR AXLE COMP.
8L8-47520-02-00
$89.99
5
BOLT,FLANGE
95817-12025-00
Unavailable
6
WASHER, PLATE (8K2)
90201-120A5-00
$7.49
7
PIN SPRING(664)
91690-40018-00
Unavailable
8
COLLAR 3
8K2-47479-01-00
$30.99
9
COLLAR
90387-20756-00
Unavailable
10
COLLAR
90387-21757-00
Unavailable
11
GUIDE WHEEL COMP.
8K2-47530-00-00
$127.99
12
BRG,R-B 62042RS 47MM 110G KY
93306-20417-00
$40.99
13
CIRCLIP(48Y)
99009-47500-00
$9.49
14
NUT, SELF-LOCKING (8BF)
95607-14200-00
$12.49
15
PIN COTTER
91490-30025-00
$3.99
16
SUSPENTION WHEEL COMP
87M-47320-00-00
Unavailable
17
BEARING(8AB)
93306-00444-00
Unavailable
18
CIRCLIP(5U8)
99009-42500-00
Unavailable
19
BOLT (8K2)
90109-08559-00
Unavailable
20
WASHER (8G1)
90201-08681-00
Unavailable
21
SUSPENTION WHEEL COMP
87M-47320-00-00
Unavailable
22
BEARING(8AB)
93306-00444-00
Unavailable
23
CIRCLIP(5U8)
99009-42500-00
Unavailable
24
CIRCLIP(1AR)
99009-20400-00
Unavailable
25
BRACKET 4
8L8-47418-00-00
Unavailable
26
. BRACKET 7
8L8-47419-00-00
Unavailable
27
BOLT(21W)
97017-06035-00
Unavailable
28
SUSPENTION WHEEL COMP
87M-47320-00-00
Unavailable
29
BEARING(8AB)
93306-00444-00
Unavailable
30
CIRCLIP(5U8)
99009-42500-00
Unavailable
31
BOLT (8K2)
90109-08559-00
Unavailable
32
WASHER (8G1)
90201-08681-00
Unavailable
