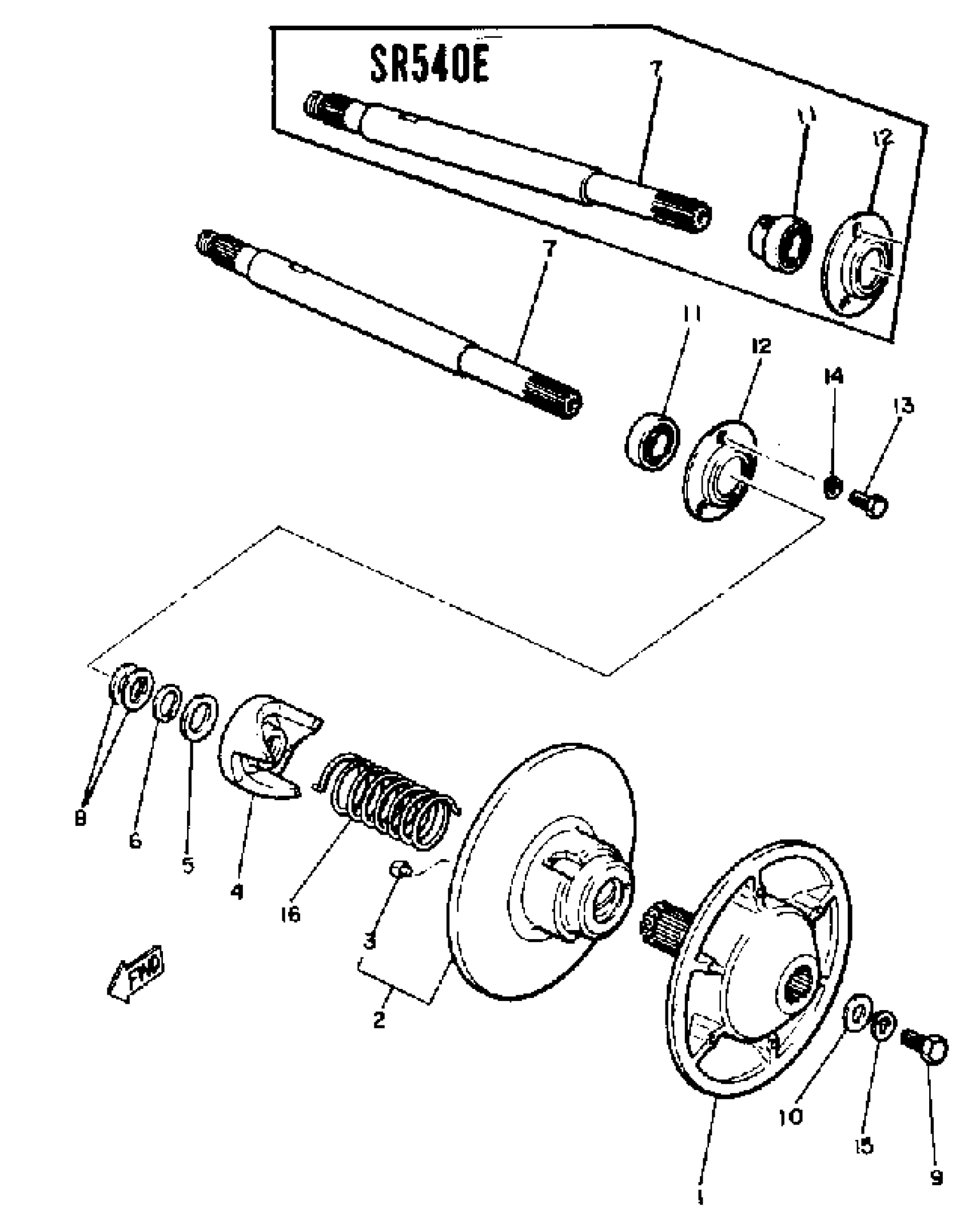

Yamaha SR540D 1980 SECONDARY SHEAVE SR540DE Diagram

#

Description

Price

1

SEC FXD SHV

8K4-17660-00-00

Unavailable

2

SEC SLIDING SHEAVE

8V8-17670-10-00

Unavailable

3

SHOE RAMP

8X6-17688-00-00

$8.49

4

SEAT, SEC SPRING

8K4-17684-00-00

Unavailable

5

WASHER, PLATE

90201-34684-00

Unavailable

6

CIRCLIP(86F)

93440-34170-00

$8.49

7

SHAFT, SECONDARY

8L0-17681-00-00

Unavailable

8

WASHER, PLATE (888)

90201-25526-00

$9.49

8

WASHER, PLATE (888)

90201-25527-00

$10.49

9

BOLT

90101-14468-00

Unavailable

9

BOLT, WASHER BASED

90105-14175-00

Unavailable

10

WASHER, PLATE

90201-140A6-00

Unavailable

11

BEARING

888-17678-00-00

Unavailable

11

BEARING

93306-20537-00

Unavailable

12

HOUSING, BEARING

8K4-47631-01-00

Unavailable

13

BOLT, HEXAGON

97017-08016-00

Unavailable

14

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

15

WASHER(6TC)

92907-14100-00

Unavailable

15

WASHER(6TC)

92907-14100-00

Unavailable

16

SPRING, TORSION

90508-45286-00

Unavailable
