Description

Price

1

SWITCH, HANDLE 1

8L8-83976-00-00

Unavailable

2

. COIL SOURCE 1

8H4-85511-20-00

Unavailable

3

. COIL, CHARGE

8H5-85541-20-00

Unavailable

4

. COIL, LIGHTING 1

8G8-85513-20-00

Unavailable

5

. COIL, PULSER (8G8-85580-20)

8H4-85580-20-00

Unavailable

6

. SPACER

8G8-85519-20-00

Unavailable

7

. LEAD WIRE ASSEMBLY

8G8-85515-20-00

Unavailable

8

CLAMP, LEAD

104-81328-20-00

$6.99

9

SCREW, PAN

98507-05035-00

$8.49

10

SCREW, PAN

98507-05035-00

$8.49

11

SCREW, PAN

98507-05035-00

$8.49

12

. ROTOR ASSEMBLY (8K1-85550-20)

8J9-85550-20-00

Unavailable

13

SCREW, BIND(J39)

98980-06014-00

$9.49

14

WASHER, PLATE 6261117600

90201-06043-00

$7.49

15

GEAR, RING

8H8-81891-00-00

Unavailable

16

STAY, RING GEAR

8H8-81895-00-00

Unavailable

17

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

18

BOLT, HEX SKT HEADSOCKET HEAD

90110-08028-00

Unavailable

19

BOLT (661)

97013-06012-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

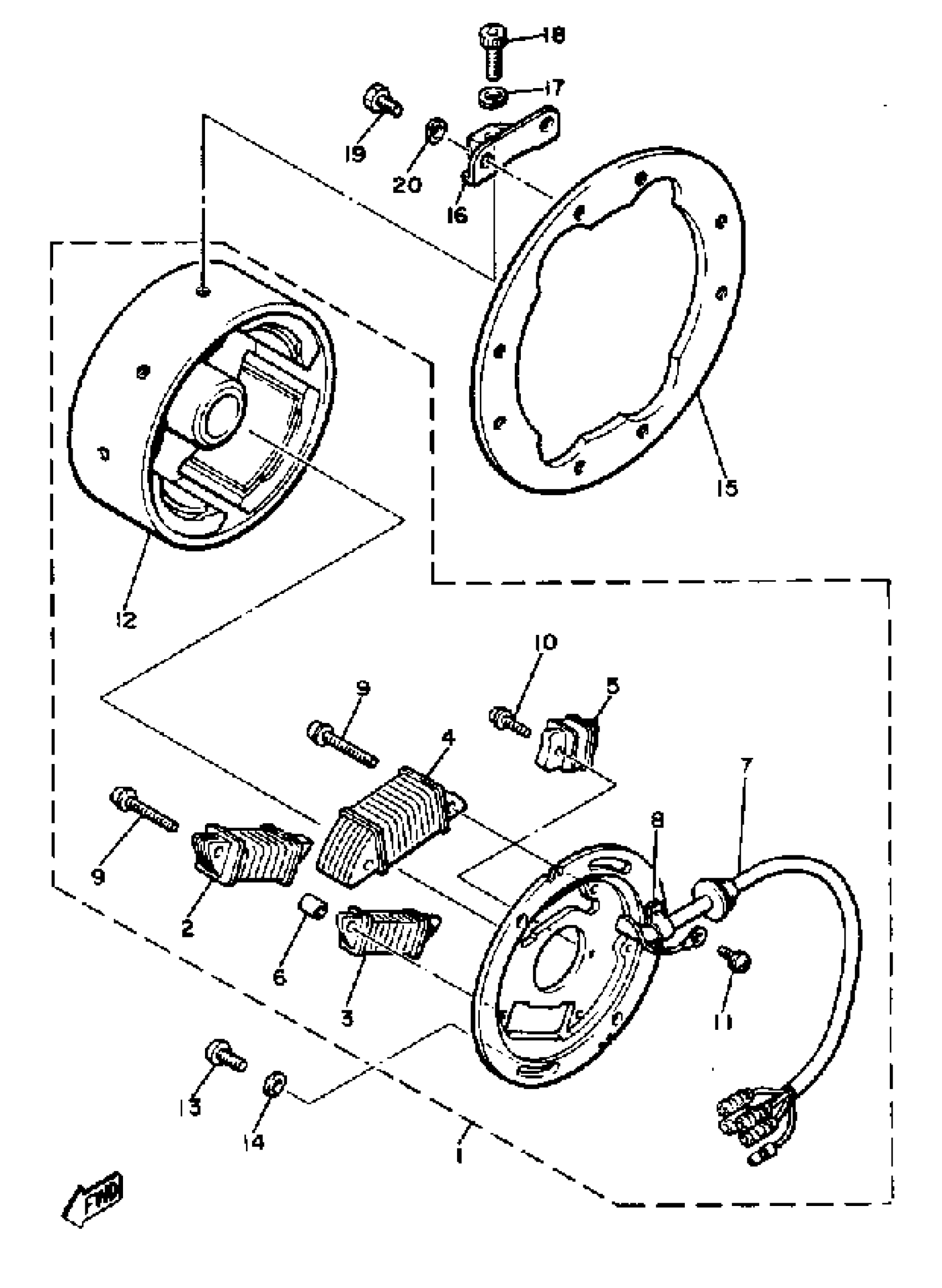

Yamaha SR540D 1980 C - D - I - MAGNETO SR540E Diagram

SWITCH, HANDLE 1

. COIL SOURCE 1

. COIL, CHARGE

. COIL, LIGHTING 1

. COIL, PULSER (8G8-85580-20)

. SPACER

. LEAD WIRE ASSEMBLY

CLAMP, LEAD

SCREW, PAN

SCREW, PAN

SCREW, PAN

. ROTOR ASSEMBLY (8K1-85550-20)

SCREW, BIND(J39)

WASHER, PLATE 6261117600

GEAR, RING

STAY, RING GEAR

YBS67-8 WASHER, SPRING

BOLT, HEX SKT HEADSOCKET HEAD

BOLT (661)

WASHER, SPRING
