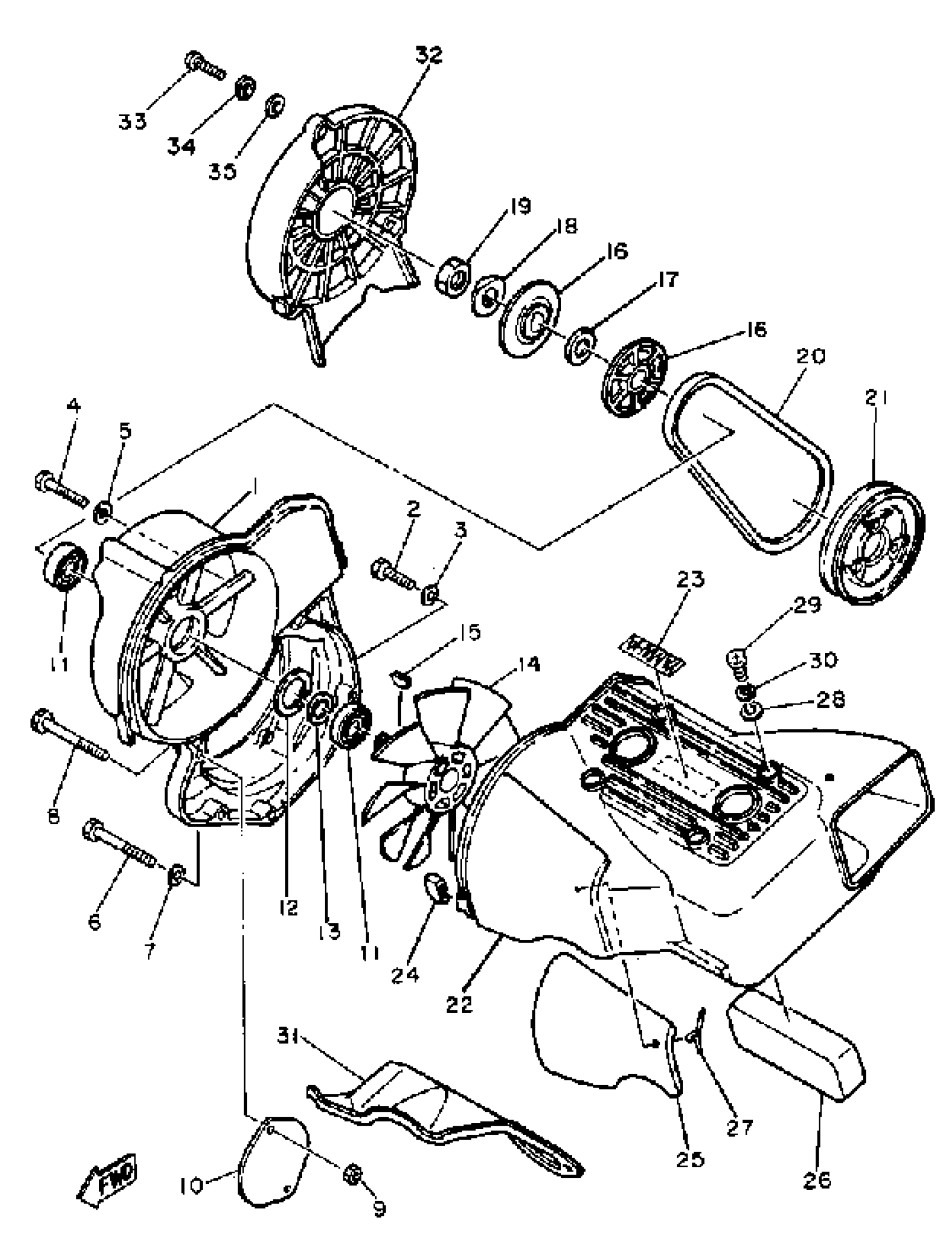

Yamaha SR540D 1980 AIR SHROUD - FAN SR540D Diagram

#

Description
Price

1

CASE, FAN

88T-12621-01-00

Unavailable

2

BOLT

97013-08035-00

$5.60

3

.. WASHER, PLATE

92990-08600-00

Unavailable

4

BOLT, HEXAGON

97013-08050-00

Unavailable

5

.. WASHER, PLATE

92990-08600-00

Unavailable

6

BOLT (6K8)

97013-08075-00

$7.49

7

.. WASHER, PLATE

92990-08600-00

Unavailable

8

BOLT (6K8)

97013-08075-00

$7.49

9

NUT, FLANGE

95704-08500-00

$8.49

10

PLATE

8K4-12633-00-00

Unavailable

11

BEARING

93306-20348-00

$40.99

12

CIR-CLIP (70R)

93420-40064-00

Unavailable

13

WASHER, PLATE (8H8)

90201-17713-00

$7.49

14

FAN

99999-01134-00

Unavailable

15

KEY, WOOD RUFF (324)

90280-05014-00

$9.49

16

PULLEY 2

8H8-12619-01-00

Unavailable

17

WASHER, CLAW (8H8)

90214-17017-00

Unavailable

17

WASHER, CLAW (1.0T)

90214-17018-00

Unavailable

18

WASHER, LOCK

90215-16149-00

Unavailable

19

NUT, HEXAGON

90170-16239-00

Unavailable

20

BELT

8H8-12612-00-00

Unavailable

21

PULLEY 1

8H8-12618-01-00

Unavailable

22

AIR SHROUD CYL. 1

8H8-12651-02-00

Unavailable

23

EMBLEM

8H8-12629-00-00

Unavailable

24

DAMPER, AIR SHROUD CYLINDER

8H8-12658-00-00

Unavailable

25

DAMPER, SHROUD 2

8H8-12659-00-00

Unavailable

26

DAMPER, SHROUD 4

8H8-12669-00-00

Unavailable

27

PIN, COTTER

91401-16030-00

Unavailable

28

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

29

SCREW, BINDING

98907-06016-00

Unavailable

30

WASHER, SPRING

92907-06100-00

Unavailable

31

AIR SHROUD, CYLINDER 2

8H8-12652-00-00

Unavailable

32

COVER, FAN CASE

8L0-12616-00-00

Unavailable

33

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

34

WASHER, SPRING

92907-06100-00

Unavailable

35

WASHER, PLATE (4L0)

90201-062A8-00

Unavailable
