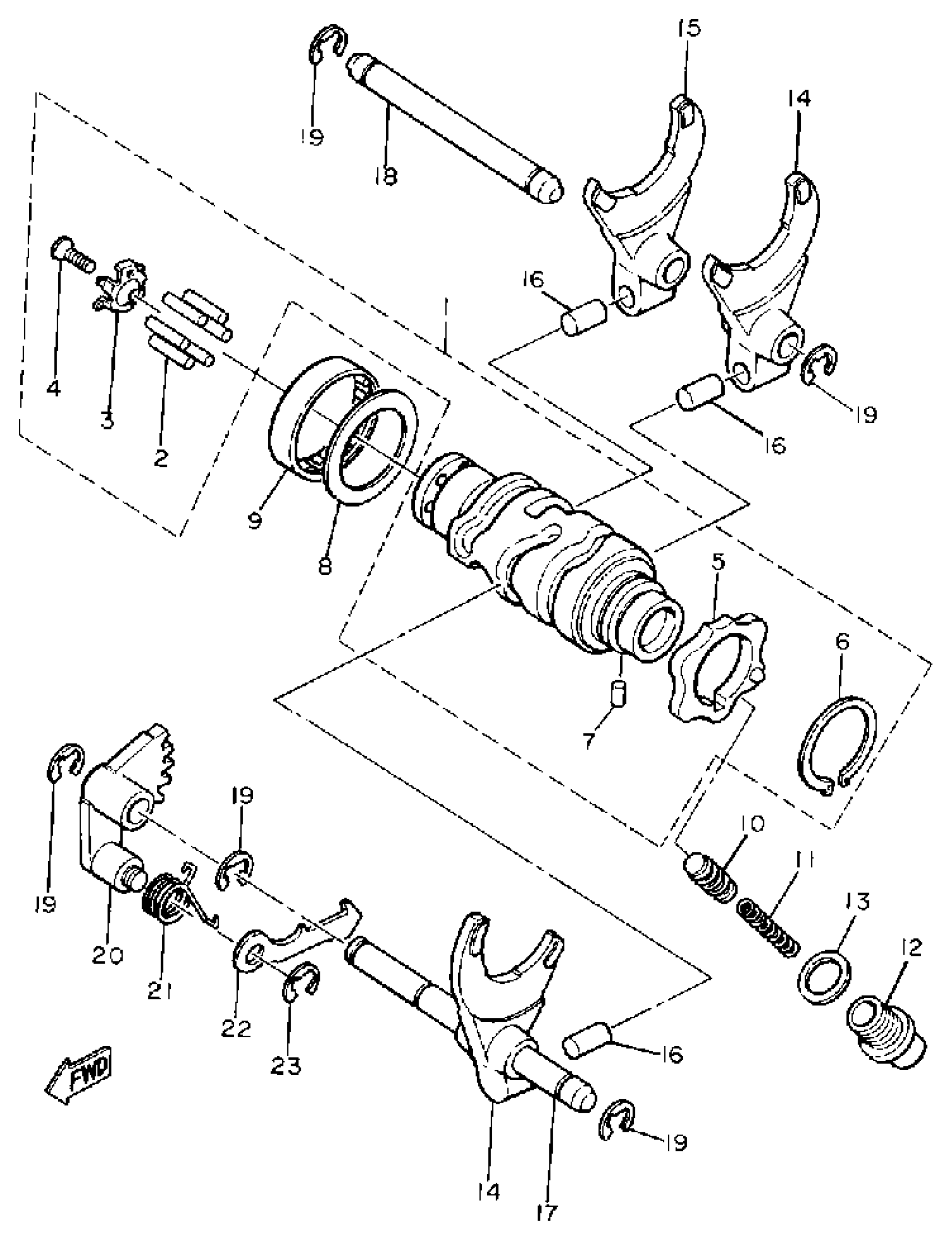

Yamaha SR500H (SR500H) 1981 SHIFT CAM FORK Diagram

#

Description
Price

1

SHIFT CAM ASSY

2J2-18540-00-00

Unavailable

2

PIN, DOWEL (363)

93604-18100-00

$3.55

3

PLATE, SIDE

434-18561-00-00

$5.49

4

SCREW, FLAT

98707-05012-00

$1.71

5

PLATE STOPPER SET

2J2-W1814-00-00

Unavailable

6

CIRCLIP(4A6)

99009-30400-00

$8.49

7

PIN, DOWEL (278)

93604-08071-00

$8.49

8

WASHER, PLATE (2J2)

90201-32673-00

$3.71

9

BRG,CYL-CAL ROLLER 18G KY

93315-23208-00

$34.99

10

STOPPER, CAM

1J7-18547-00-00

$9.99

11

SPRING COMPRESSION278185570000

90501-10062-00

$9.49

12

BOLT

90109-14002-00

$12.49

13

WASHER, PROTECTOR

4F4-14766-00-00

$6.99

14

FORK, SHIFT

364-18511-00-00

Unavailable

15

FORK, SHIFT 1

363-18511-00-00

Unavailable

16

PIN, STRAIGHT

90250-08017-00

Unavailable

17

BAR, SHIF FRK GDE 1

(363-18531-00-00)

Unavailable

18

BAR, SHIFT FORK GUIDE 2

363-18535-00-00

Unavailable

19

CIRCLIP(2R6)

99001-08600-00

Unavailable

20

LEVER, CHANGE 2

434-18122-00-00

Unavailable

21

SPRING, TORSION (1M1)

90508-08334-00

Unavailable

22

LEVER, CHANGE 3

498-18151-03-00

Unavailable

23

CIRCLIP

99080-07600-00

Unavailable
