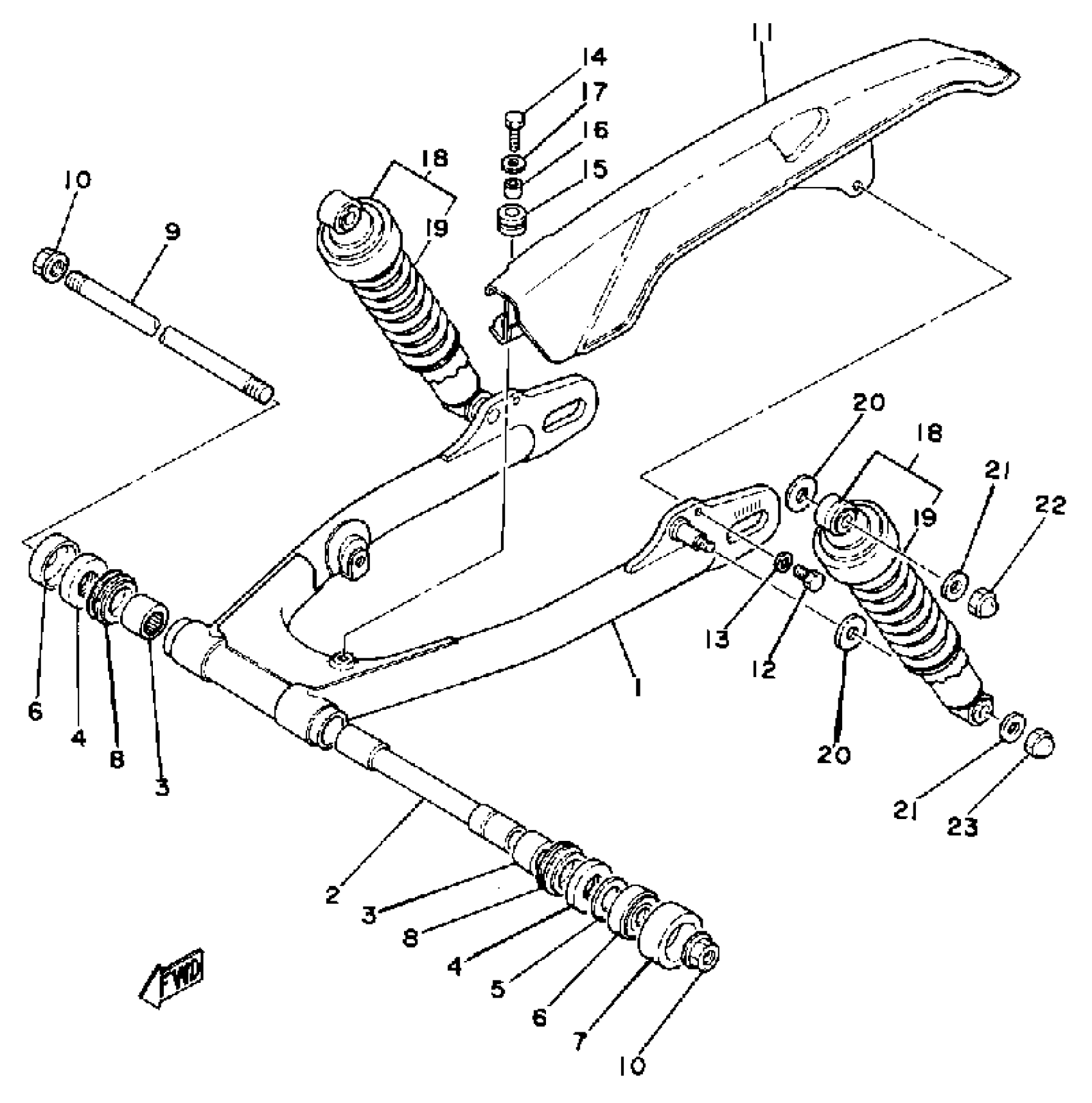

Yamaha SR500H (SR500H) 1981 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

3H0-22110-01-00

Unavailable

2

BUSH 2

483-22124-00-00

Unavailable

3

BRG,CYL-CAL ROLLER 28.5G NT

93317-22208-00

$46.99

4

BEARING, THRUST

93342-22205-00

$70.99

5

WASHER, PLATE

90201-22284-04

$2.82

6

COVER, THRUST 2

2K8-22129-00-00

$37.99

7

SEAL, GUARD

431-22151-03-00

$27.99

8

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

9

SHAFT, PIVOT

33Y-22141-01-00

Unavailable

10

NUT (2J2)

90179-16256-00

Unavailable

11

CHAIN CASE

2J2-22311-01-00

Unavailable

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

13

WASHER, SPRING

92995-06100-00

Unavailable

14

BOLT, HEXAGON

97017-06020-00

$4.06

15

GROMMET

90480-13014-00

$8.49

16

COLLAR (3H5)

90387-060A3-00

Unavailable

17

WASHER, PLATE 1012832300

90201-06066-00

Unavailable

18

SHK/ABS ASSEMBLY, REAR

33Y-22210-00-00

Unavailable

19

SPRING

(2J2-22212-02-00)

Unavailable

20

WASHER PLATE 148272190000

90201-14215-00

Unavailable

21

WASHER, PLATE (2J2)

90201-10696-00

Unavailable

22

NUT, CAP (371)

90176-10009-00

Unavailable

23

NUT, CROWN(3BM)

90176-10073-00

Unavailable
