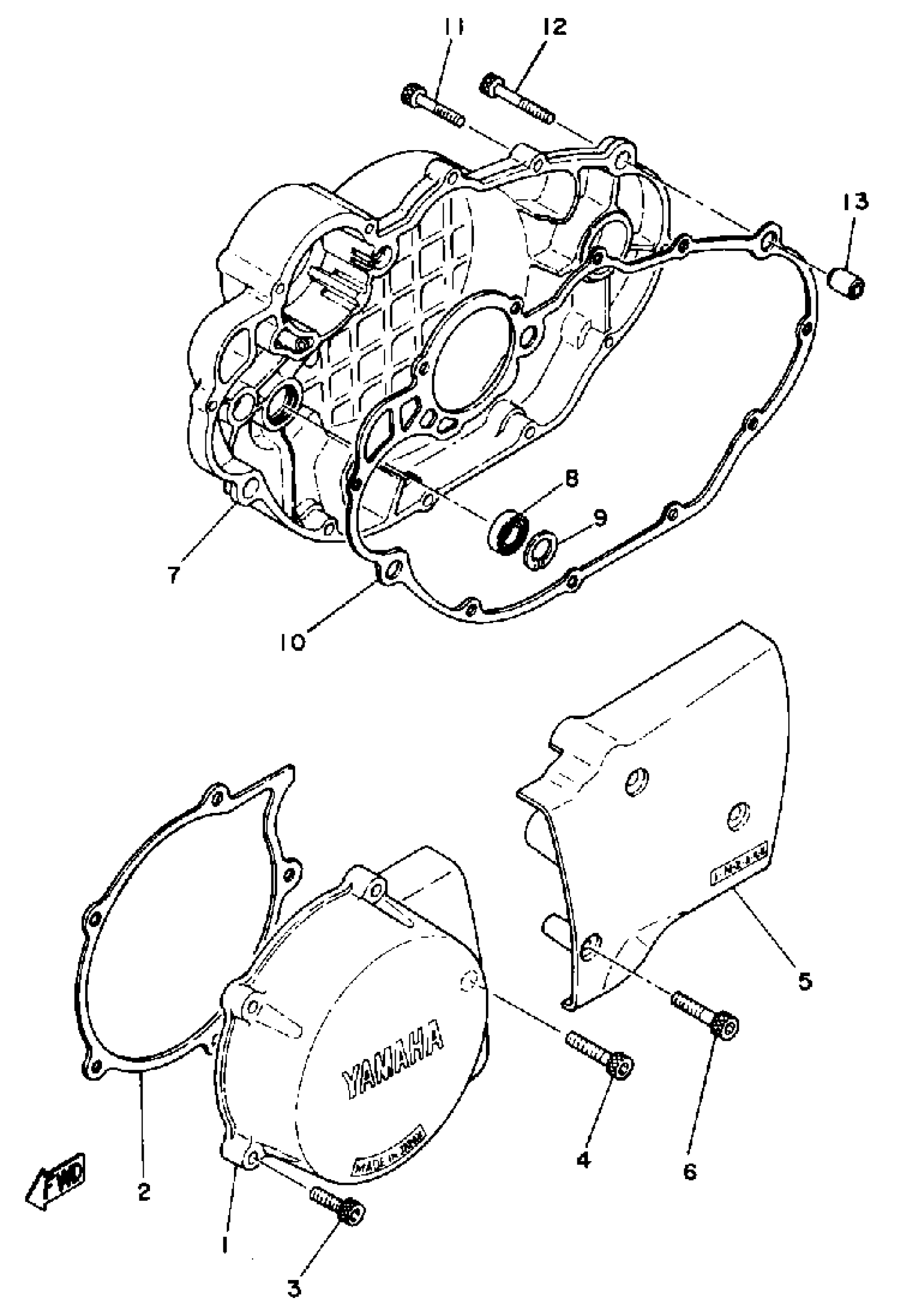

Yamaha SR500H (SR500H) 1981 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

2J2-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

3HT-15451-00-00

$24.99

3

BOLT,SOCKET HEAD

91314-06025-00

$8.49

4

BOLT, SOCKET

91314-06035-00

$8.49

5

COVER, CRANKCASE 2

3GW-15421-00-00

Unavailable

6

BOLT, SOCKET

91314-06035-00

$8.49

7

COVER, CRANKCASE (R.H)

2J2-W1542-00-00

Unavailable

8

OIL SEAL (14X25X5.5-583)

93101-14089-00

$12.49

9

CIRCLIP

99009-25500-00

$7.49

10

CRANKCASE COVER 3 GASKET

3HT-15462-R1-00

$22.99

11

BOLT, SOCKET

91314-06030-00

$8.49

12

BOLT, SOCKET

91314-06040-00

$8.49

13

PIN, DOWEL

99530-12016-00

$4.89
