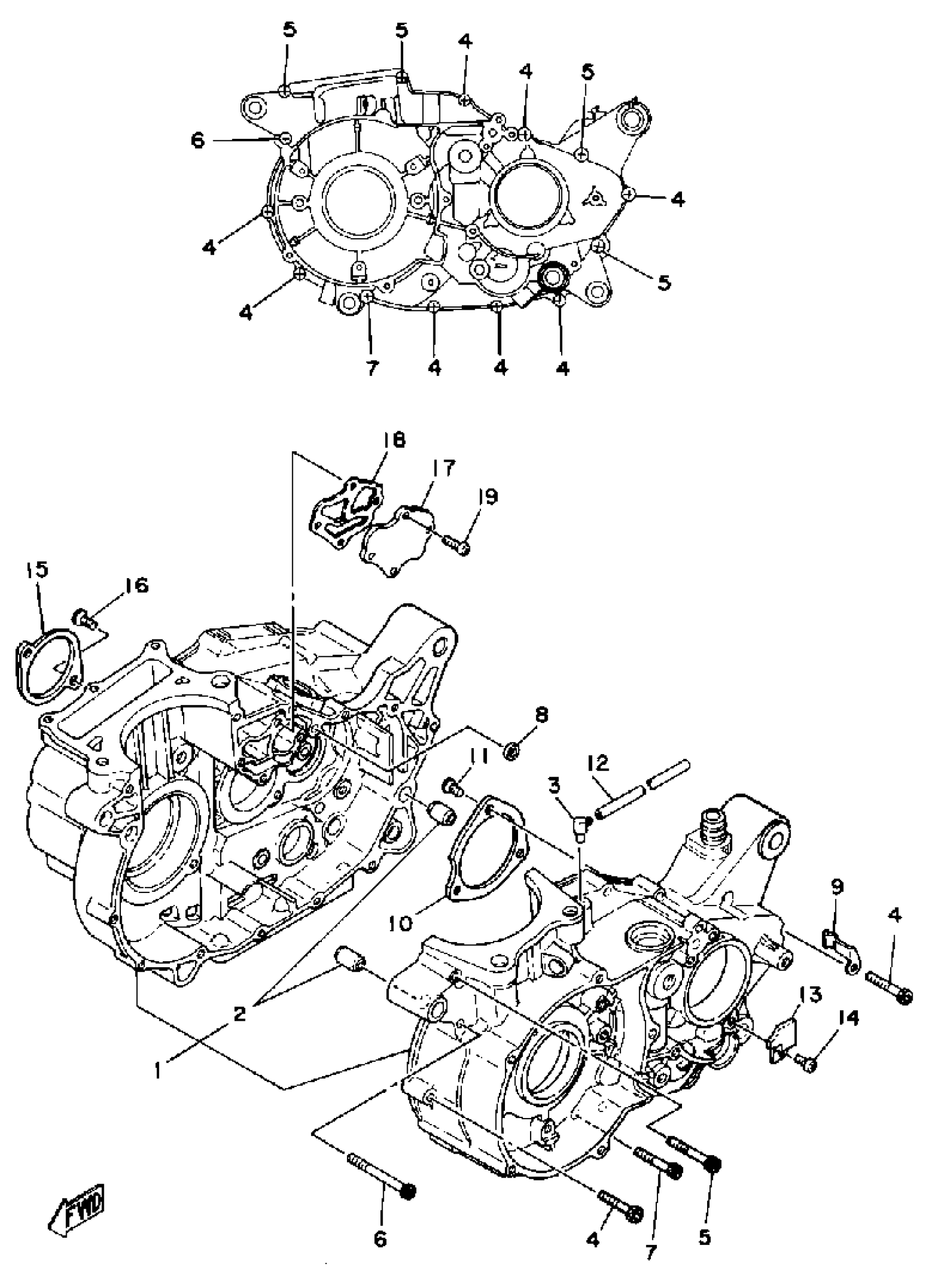

Yamaha SR500H (SR500H) 1981 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(3H1-15100-00-00)

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

BREATHER

583-15371-00-00

$6.99

4

BOLT, SOCKET

91314-06035-00

$8.49

5

BOLT, SOCKET

91314-06045-00

$8.49

6

BOLT, SOCKET

91314-06065-00

$8.49

7

BOLT,SOCKET

91314-06055-00

$8.49

8

GASKET (583 CRANKCASE)

90430-09121-00

$7.49

9

CLAMP(51Y)

90465-08277-00

Unavailable

10

PLATE, BRNG COVER

(363-15381-00-00)

Unavailable

11

SCREW, FLAT

98707-05012-00

$1.71

12

HOSE (L1050)

90445-072G8-00

$29.99

13

CLAMP

(90465-05132-00)

Unavailable

14

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

15

PLATE, BEARING COVER

583-15383-00-00

Unavailable

16

SCREW, FLAT

98707-06014-00

Unavailable

17

COVER, OIL PUMP 2

583-15426-10-00

Unavailable

18

GASKET 2

3HT-15466-00-00

Unavailable

19

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable
