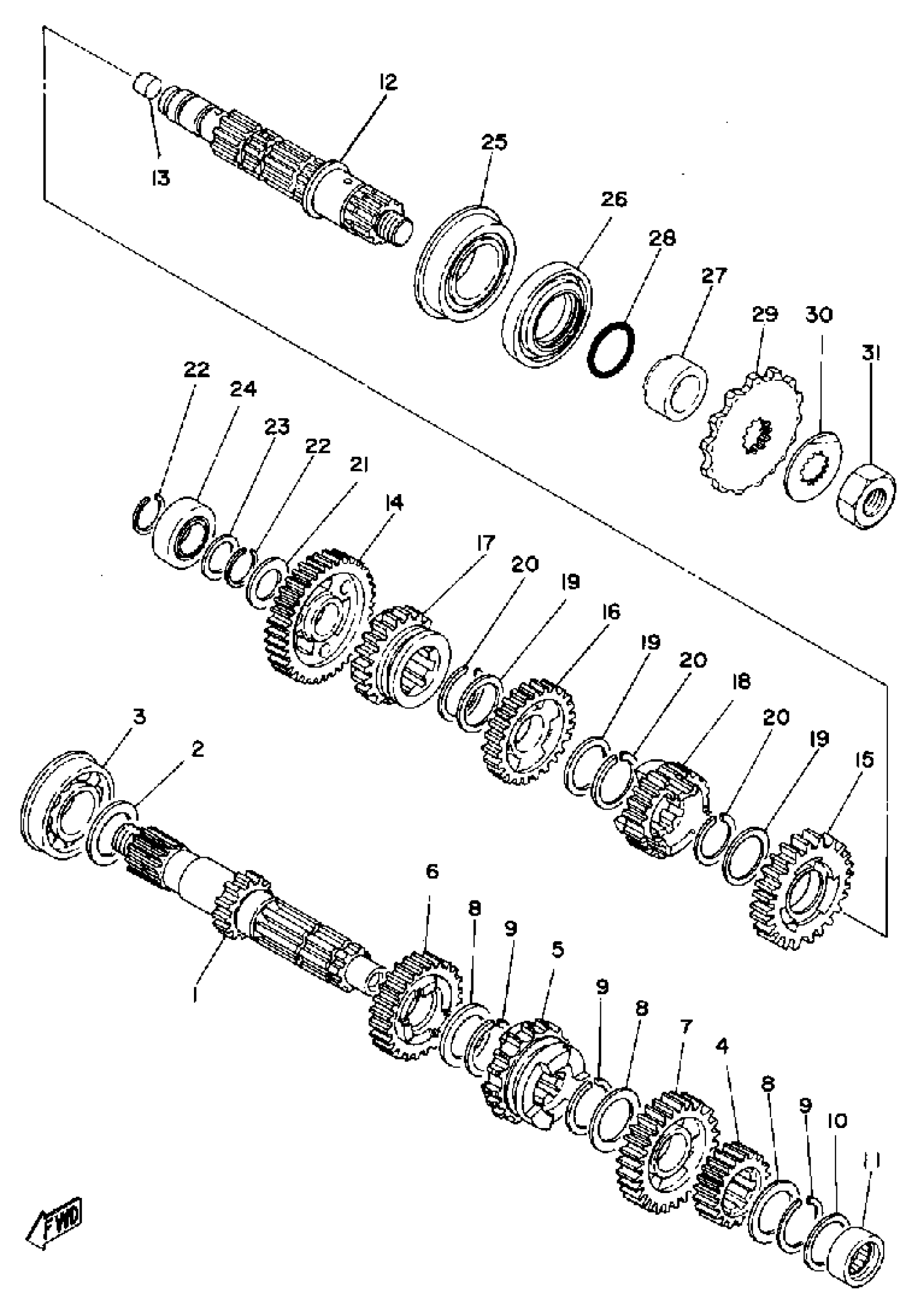

Yamaha SR500G (SR500G) 1980 TRANSMISSION Diagram

AXLE, MAIN

583-17411-01-00

Unavailable

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

BRG,R-B 4205 52MM 185G KY

93304-20501-00

$96.99

GEAR, 2ND PINION

583-17121-00-00

Unavailable

GEAR, 3RD PINION

583-17131-02-00

Unavailable

GEAR, 4TH PINION

583-17141-00-00

$79.99

GEAR, 5TH PINION

583-17151-01-00

Unavailable

WASHER, PLATE(59W)

90201-253K0-00

$8.49

CIRCLIP

93440-25020-00

$9.49

WASHER PLATE 132172160000

90201-20266-00

$9.49

BEARING

93311-42077-00

$55.99

AXLE, DRIVE

99999-01986-00

Unavailable

PLUG, SPEC''L SHAPE

90338-09066-00

Unavailable

GEAR, 1ST WHEEL

583-17211-00-00

Unavailable

GEAR, 2ND WHEEL

583-17221-00-00

Unavailable

GEAR, 3RD WHEEL

583-17231-01-00

Unavailable

GEAR, 4TH WHEEL

583-17241-00-00

Unavailable

GEAR, 5TH WHEEL

583-17251-01-00

Unavailable

WASHER, PLATE(59W)

90201-253K0-00

$8.49

CIRCLIP

93440-25020-00

$9.49

WASHER PLATE 168171160000

90201-20278-00

Unavailable

CIRCLIP (525)

93410-20038-00

Unavailable

WASHER PLATE 132172160000

90201-20266-00

$9.49

BRG,CYL-CAL ROLLER 52G TM

93313-32008-00

Unavailable

BRG,R-B 6305 62MM 232.35G NT

93306-30517-00

Unavailable

OIL SEAL, SD-TYPE

93102-35180-00

Unavailable

COLLAR

90387-25646-00

Unavailable

O-RING

93210-22298-00

Unavailable

SPROCKET, DRIVE 16T

9385E-16114-00

Unavailable

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

NUT 152174630000

90179-18020-00

Unavailable
