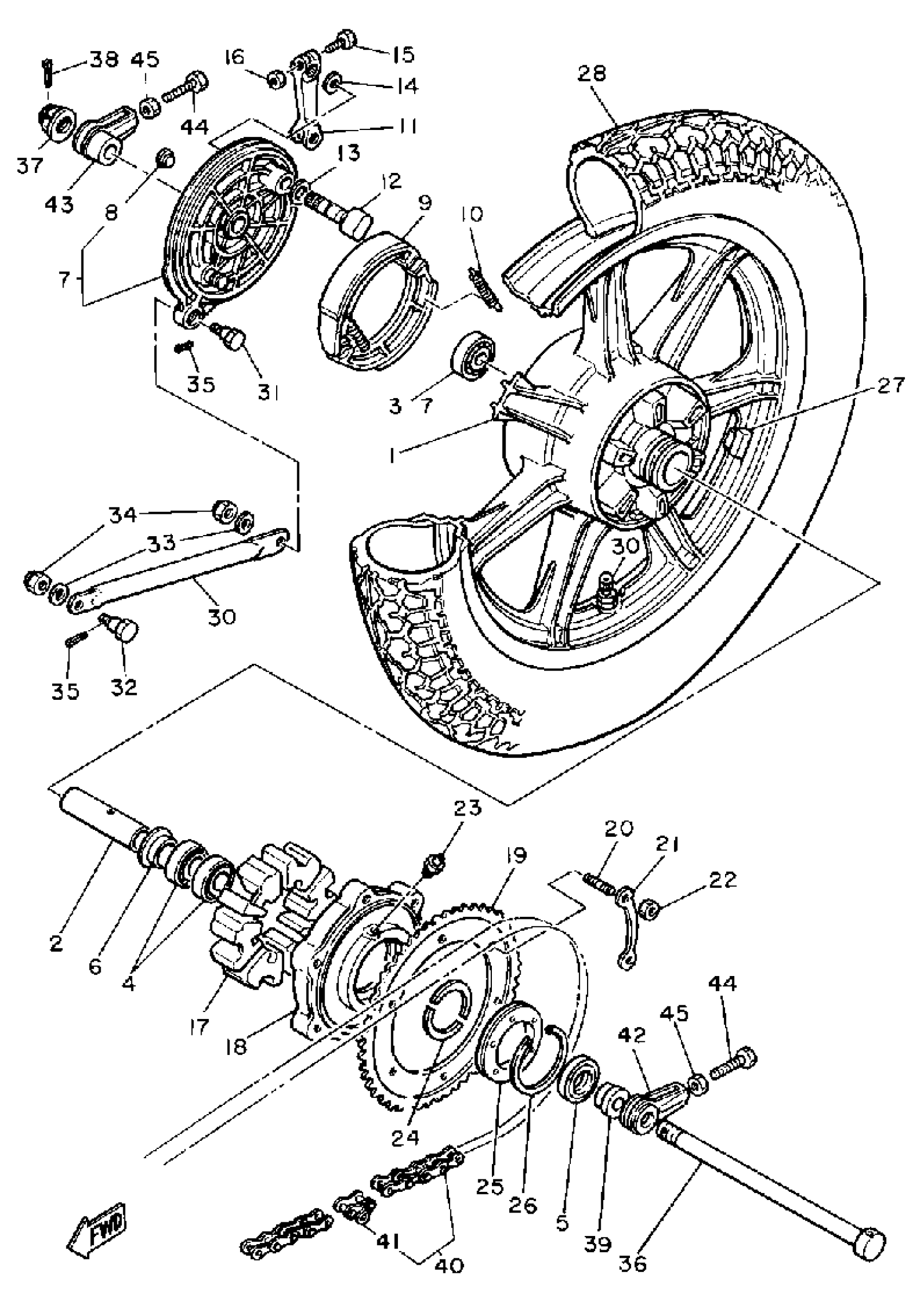

Yamaha SR500G (SR500G) 1980 REAR WHEEL Diagram

#

Description
Price

1

WHEEL, CAST REAR

(3H1-25338-00-98)

Unavailable

2

SPACER

90560-17311-00

Unavailable

3

BEARING

93306-20320-00

Unavailable

3

BEARING

93306-20320-00

Unavailable

4

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

5

OIL SEAL (25X40X8-248)

93102-25061-00

$13.49

6

FLANGE, SPACER

146-25315-00-00

$7.99

7

BRAKE SHOE PLT ASSEMBLY

1E6-25321-12-98

Unavailable

8

GROMMET (397)

90480-10068-00

$8.49

9

BRAKE SHOE KIT

3GW-W253A-00-00

$42.99

10

SPRING, TENSION 2462533300

90507-20002-00

$8.49

11

LEVER, CAMSHAFT

42X-25355-00-00

Unavailable

12

CAMSHAFT

4L0-25351-00-00

Unavailable

13

SHIM, CAM SHAFT

148-25353-00-00

$6.99

14

SEAL, CAM SHAFT

148-25359-00-00

$4.78

15

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

16

NUT(650)

95380-06700-00

Unavailable

17

DAMPER, CLUTCH

2J2-25364-00-00

Unavailable

18

CLUTCH, HUB

1E6-25366-00-98

Unavailable

19

SPROCKET, DRIVN 44T

2J2-25444-10-00

Unavailable

20

BOLT, STUD (483)

90116-08218-00

Unavailable

21

WASHER

2XJ-25412-00-00

Unavailable

22

NUT (583)

90170-08193-00

Unavailable

23

NIPPLE, GREASE

93700-06M03-00

Unavailable

24

STOPPER, HUB

1E6-25318-01-00

Unavailable

25

SEAL, HUB DUST

1E6-25319-01-00

Unavailable

26

CIRCLIP (1E6)

93450-78080-00

Unavailable

27

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

27

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

27

BALANCER, WHEEL

5MT-25398-00-00

Unavailable

28

400S18 G503TL

(94140-18411-00)

Unavailable

29

400S18 G503TL

(94140-18411-00)

Unavailable

30

BAR, TENSION

3H0-25371-00-00

Unavailable

31

BOLT (537 TENSION BAR)

90109-08406-00

Unavailable

32

BOLT (183-25378-00)

90109-08368-00

Unavailable

33

WASHER, PLAIN

92990-08200-00

Unavailable

34

NUT

90185-08055-00

Unavailable

35

PIN, COTTER

91490-20025-00

Unavailable

36

AXLE,WHEEL

150-25381-01-00

Unavailable

37

NUT, CASTLE (2H6)

90171-16024-00

Unavailable

38

PIN, COTTER

91490-30030-00

Unavailable

39

COLLAR (1E6)

90387-17530-00

Unavailable

40

CHAIN 50HDS-104L

94580-05104-00

Unavailable

41

. JOINT CHAIN

94680-20011-00

Unavailable

42

PULLER, CHAIN 1

48U-25388-00-00

Unavailable

43

PULLER, CHAIN 2

341-25389-00-00

Unavailable

44

BOLT

90101-08060-00

Unavailable

45

. NUT

95380-08700-00

Unavailable
