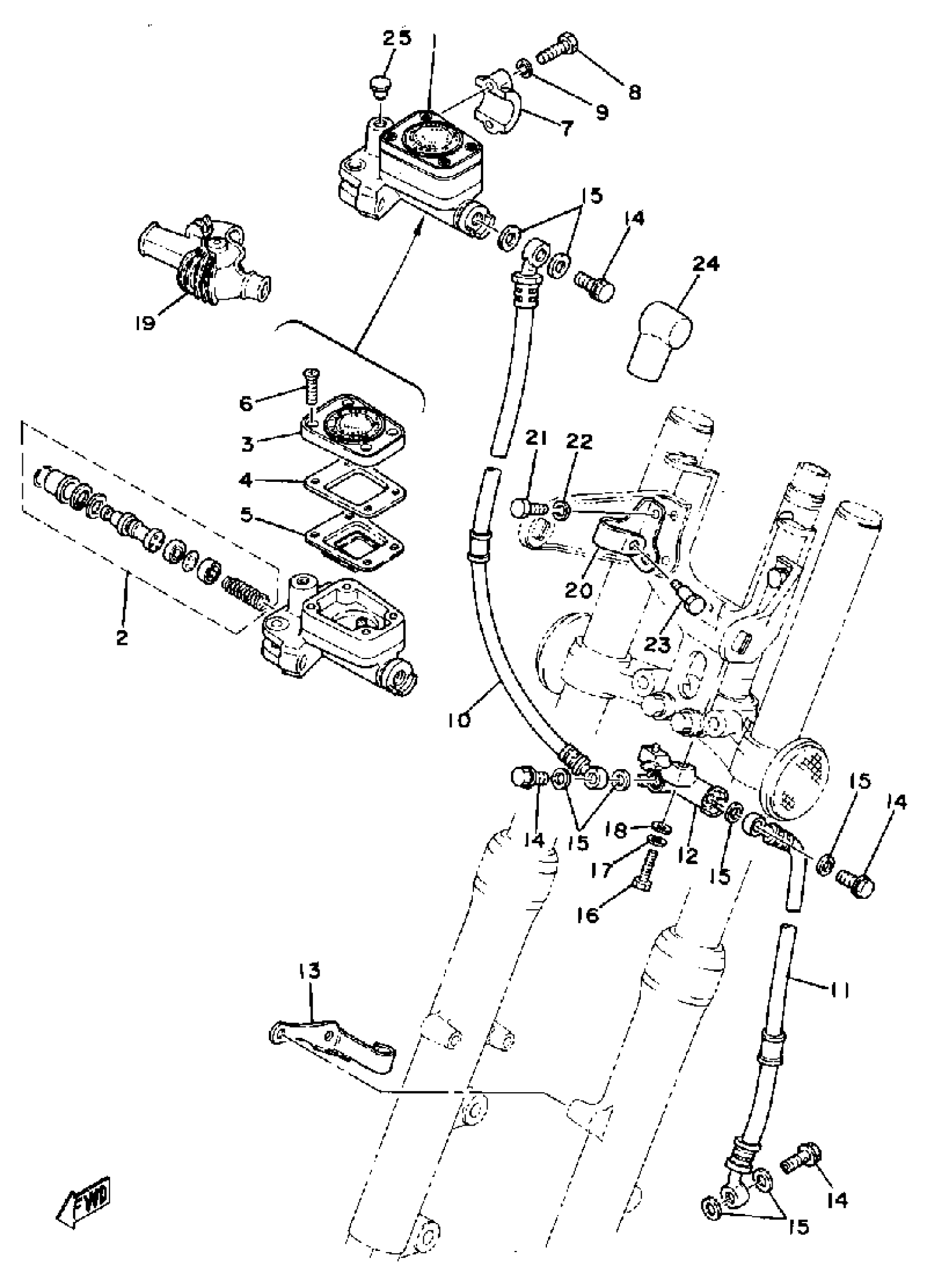

Yamaha SR500G (SR500G) 1980 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

1J3-25850-02-00

Unavailable

2

CYLINDER KIT, MASTER

535-W0041-60-00

$144.99

3

. RESERVOIR CAP ASSY

1J3-25852-01-00

Unavailable

4

. GASKET

1J3-25855-01-00

Unavailable

5

DIAPHRAGM, RESERVOIR

1J3-25854-01-00

$40.99

6

SCREW, FLAT

98707-05035-00

$8.49

7

BRACKET, MASTER

1J3-25867-00-00

Unavailable

8

BOLT

90101-06M27-00

Unavailable

9

WASHER, SPRING

92995-06100-00

Unavailable

10

HOSE, BRAKE 1

2J2-25872-01-00

Unavailable

11

HOSE, BRAKE 2

2J2-25873-00-00

Unavailable

12

JOINT

(2J2-25885-01-00)

Unavailable

13

HOLDER, BRKE HOSE 2

1J3-25876-02-00

Unavailable

14

BOLT, UNION(3GM)

90401-10159-00

$11.49

15

WASHER, PLATE(481)

90201-10118-00

Unavailable

16

BOLT, HEXAGON

97017-06025-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER, PLAIN (646)

92990-06600-00

Unavailable

19

COVER, HANDLE LEVER (R.H)

1T5-26372-00-00

Unavailable

20

HOLDER, BRKE HOSE 2

(2J2-25876-00-00)

Unavailable

21

BOLT (661)

97013-06012-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

BOLT 337847520000

90109-06005-00

Unavailable

24

BOOT, MASTER CYLINDER

360-25862-00-00

Unavailable

25

PLUG (341-26329-00)

90338-09012-00

Unavailable
