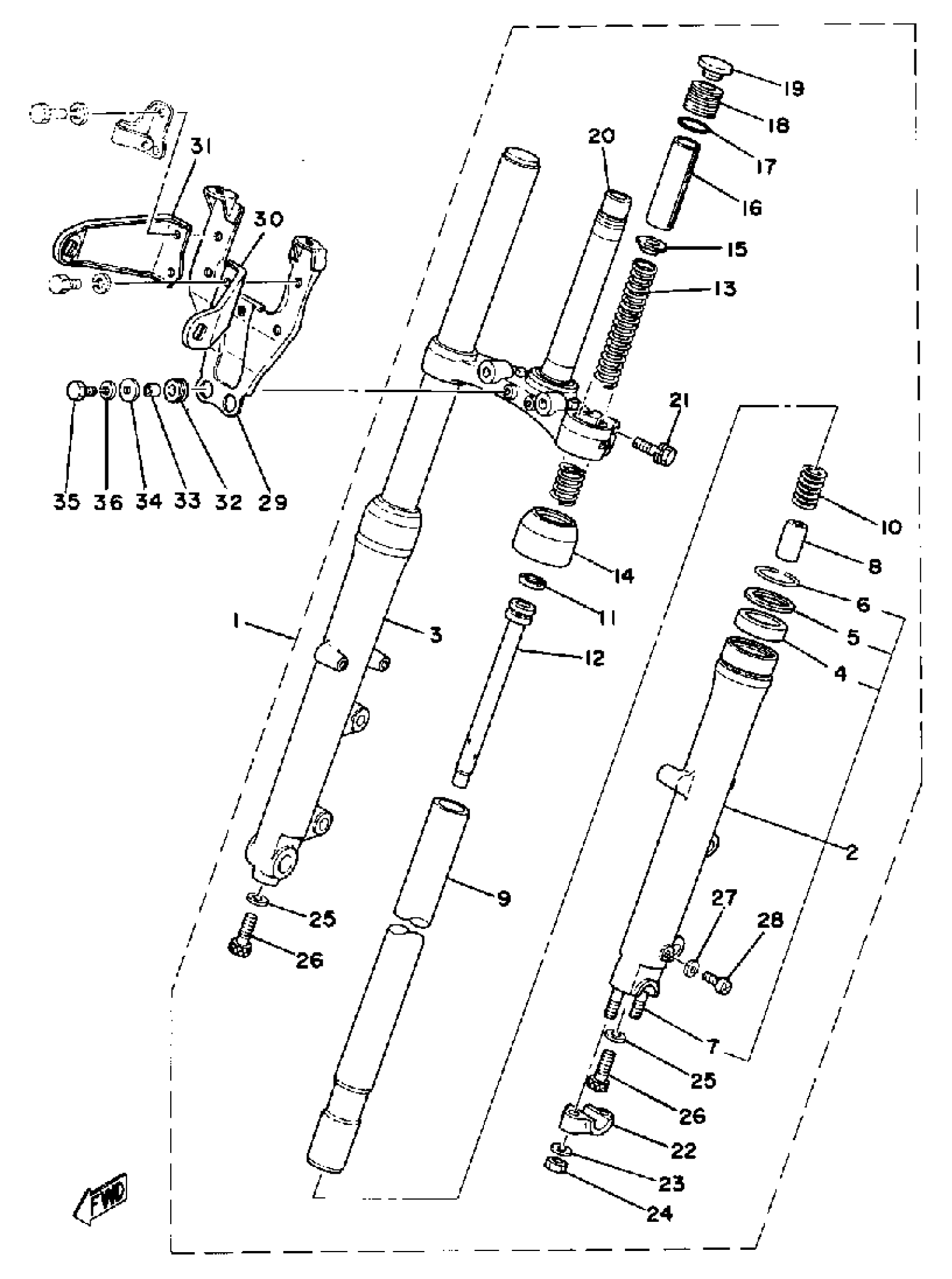

Yamaha SR500G (SR500G) 1980 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(2J2-23101-01-00)

Unavailable

2

. TUBE, OUTER 1

2F0-23126-00-00

Unavailable

3

. TUBE, OUTER 2

2F0-23136-00-00

Unavailable

4

OIL SEAL

1T3-23145-00-00

$16.49

5

WASHER, OIL SEAL

341-23146-50-00

$10.99

6

CLIP, OIL SEAL

341-23156-50-00

$32.99

7

BOLT, STUD (278)

90116-08261-00

$4.77

8

TAPER SPINDLE

1W1-23173-L0-00

$31.99

9

TUBE, INNER

2F0-23110-00-00

$209.99

10

SPRING, REBOUND

(2F0-23151-00-00)

Unavailable

11

RING, FRONT FORK PISTON

2F0-23157-00-00

$5.49

12

. CYLINDER, FRTFRK

2F0-23170-00-00

Unavailable

13

. SPRING, FRONT FORK

2J2-23141-00-00

Unavailable

14

SEAL, DUST

1T3-23144-50-00

Unavailable

15

. SEAT, SPRING UPPER

256-23142-60-00

Unavailable

16

SPACER

(33Y-23118-00-00)

Unavailable

17

RING, CAP BOLT

2F0-23114-00-00

Unavailable

18

. BOLT, CAP

1T3-23111-50-00

Unavailable

19

CAP

1T3-23168-50-00

Unavailable

20

. UNDER BRACKET

2J4-23340-30-33

Unavailable

21

BOLT, AXLE HOLDER

18G-23128-00-00

Unavailable

22

HOLDER,AXLE

341-23167-50-00

Unavailable

23

.. WASHER, PLATE

92990-08600-00

Unavailable

24

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

25

GASKET

509-23158-L0-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

27

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

28

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

28

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

29

COVER, UPPER 1

(2J2-23121-03-33)

Unavailable

30

COVER, UPPER 2

2J2-23131-01-93

Unavailable

31

STAY, HEADLIGHT

2J2-23174-01-93

Unavailable

32

GROMMET (431)

90480-14052-00

Unavailable

33

COLLAR (3H5)

90387-060A3-00

Unavailable

34

WASHER, PLATE

90201-06380-00

Unavailable

35

BOLT, HEXAGON

97017-06020-00

Unavailable

36

WASHER, SPRING

92995-06100-00

Unavailable
