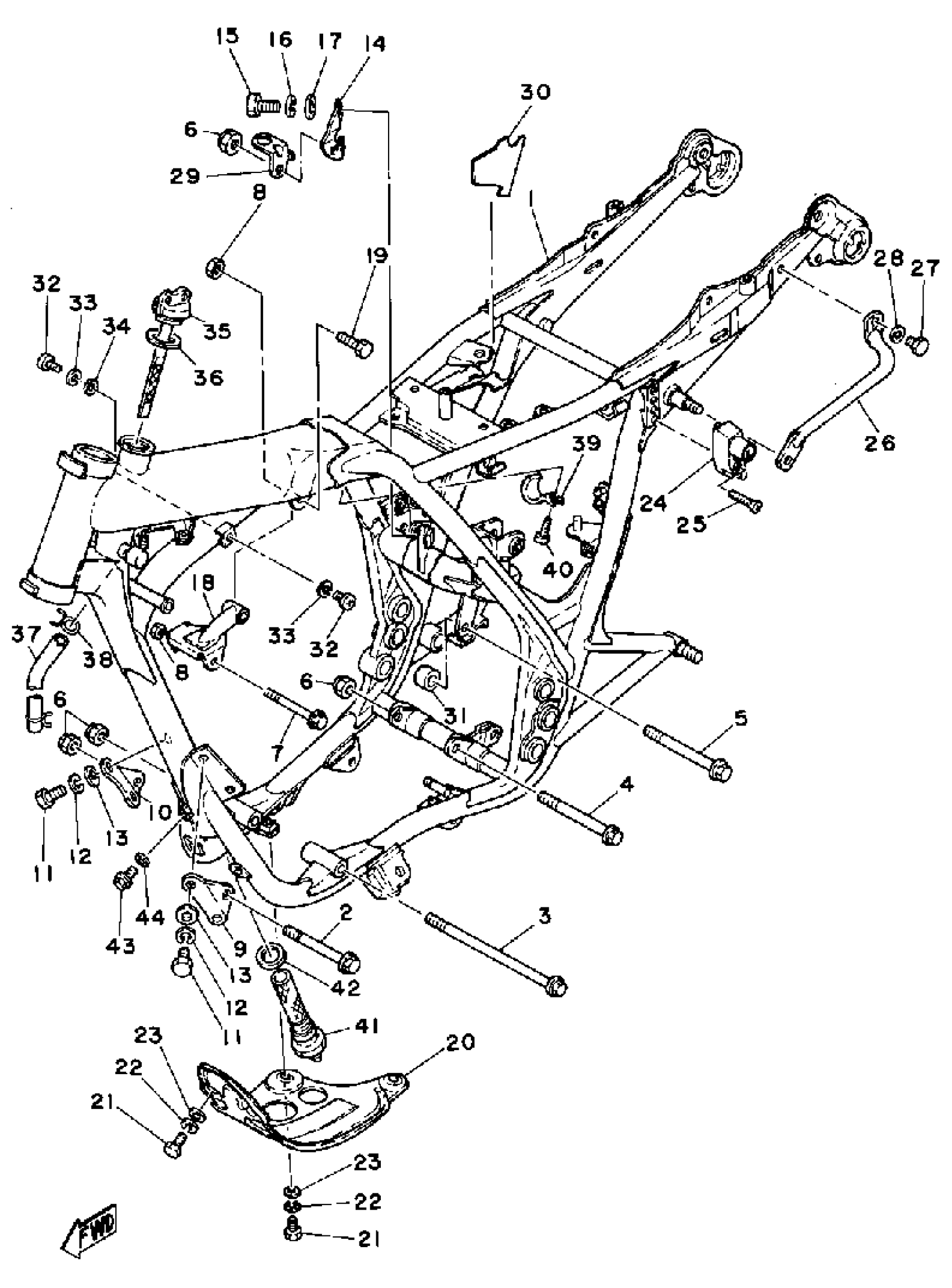

Yamaha SR500G (SR500G) 1980 FRAME Diagram
#
1
FRAME
(2J4-21110-31-33)
Unavailable
3
BOLT, WASHER BASED(4KM)
90105-10780-00
Unavailable
5
BOLT(30W)
90109-101A0-00
Unavailable
9
STAY, ENGINE 2
2J2-21315-00-33
Unavailable
10
STAY, ENGINE FRONT (R.H)
2J2-21316-00-33
Unavailable
13
.. WASHER, PLATE
92990-08600-00
Unavailable
14
STAY, ENGINE REAR
2J2-21317-01-00
Unavailable
17
.. WASHER, PLATE
92990-08600-00
Unavailable
18
STAY, ENGINE
2J2-21318-01-00
Unavailable
19
BOLT
97014-08040-00
Unavailable
20
PROTECTOR, ENGINE
3GW-21471-00-33
Unavailable
21
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
22
WASHER, SPRING
92995-06100-00
Unavailable
23
WASHER, PLATE
90201-06380-00
Unavailable
24
HELMET HANGER ASSY
26H-21308-01-00
Unavailable
25
SCREW (3H1)
90149-06150-00
Unavailable
26
HANDLE, STANDING
2J2-21165-00-00
Unavailable
27
BOLT (661)
97013-06012-00
Unavailable
28
WASHER, PLAIN (646)
92990-06600-00
Unavailable
29
STAY, STOP SWITCH
2J2-2144G-00-00
Unavailable
30
COVER
(2J2-2117F-00-00)
Unavailable
31
COLLAR, REAR ENGINE STAY
2J2-21459-01-00
Unavailable
32
SCREW,PAN HEAD (646)
98580-05012-00
Unavailable
33
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
34
. WASHER, PLAIN
92990-05200-00
Unavailable
35
BODY, CAP
2J2-21771-10-00
Unavailable
36
GASKET (583 OIL TANK CAP)
90430-27124-00
Unavailable
37
HOSE (L200)
90445-11289-00
Unavailable
38
CLIP
90467-100A1-00
Unavailable
39
CLAMP, WIRE HRNES 1
(2J2-21335-00-00)
Unavailable
40
SCREW, TAPPING(6U1)
97780-50610-00
Unavailable
41
NET, OIL TANK FILTER
583-21756-00-00
Unavailable
42
GASKET (583 OIL TANK)
90430-22123-00
Unavailable
43
BOLT, FLANGE
95817-08012-00
Unavailable
44
WASHER, PLATE 3411117500
90201-08087-00
Unavailable
