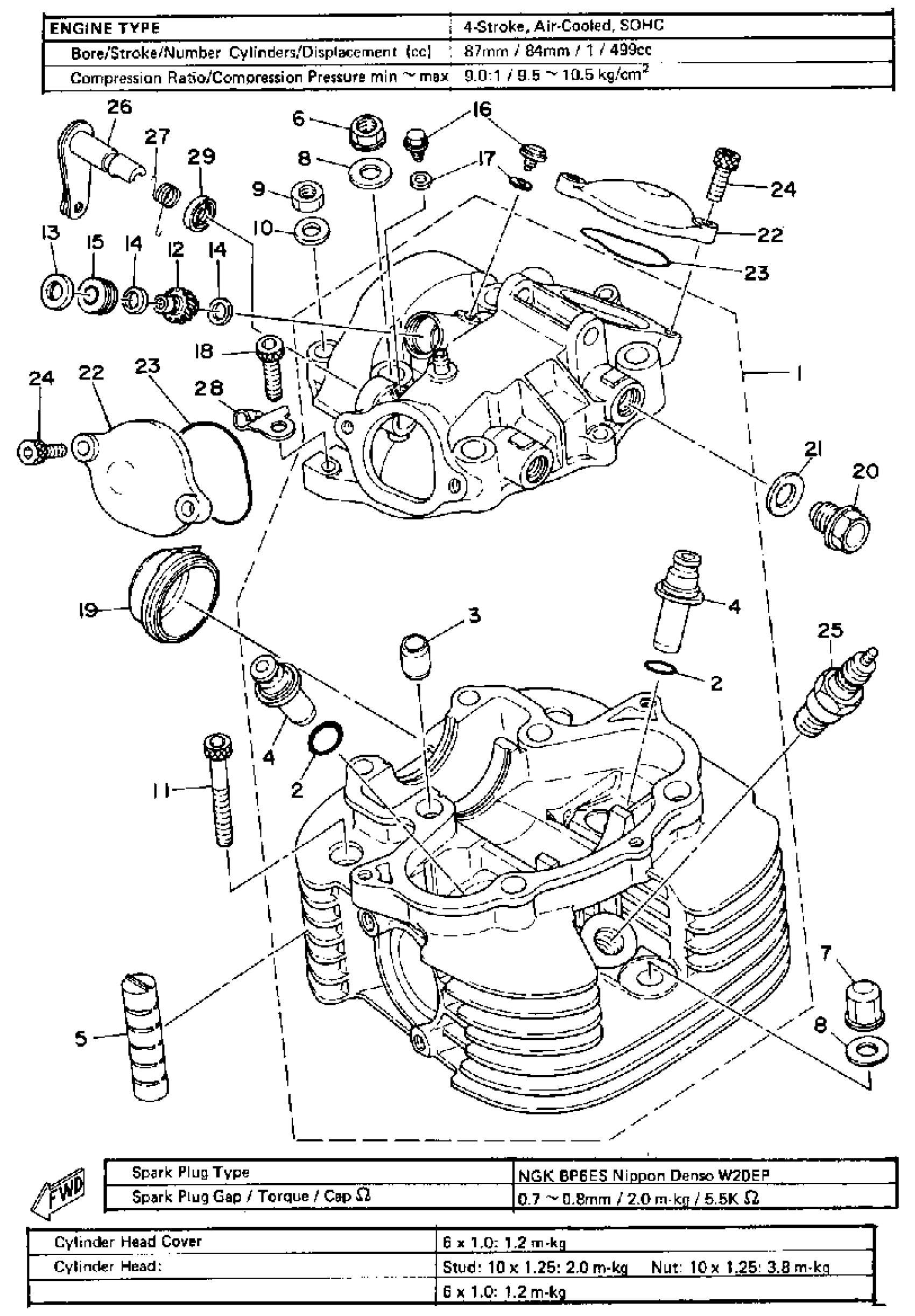

Yamaha SR500G (SR500G) 1980 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

(2J2-11101-00-00)

Unavailable

2

O-RING (583 VALVE GUIDE)

93210-14299-00

$5.60

3

PIN, DOWEL

99530-14016-00

$3.80

4

GUIDE, INTAKE VALVE 1ST O/S

583-11133-11-00

$76.99

5

ABSORBER

583-11127-00-00

$7.99

6

NUT (2Y5)

90179-10279-00

$8.49

7

NUT, CROWN(2GG)

90176-10075-00

$8.49

8

WASHER, PLATE 3711117500

90201-10124-00

$9.49

9

NUT(6L2)

95333-08600-00

$2.49

10

WASHER (1T1)

90201-08649-00

$9.49

11

BOLT,SOCKET

91317-06055-00

$4.19

12

GEAR, DRIVEN

1E6-17841-00-00

Unavailable

13

OIL SEAL (30X)

93102-08307-00

$7.49

14

WASHER PLATE 141181390000

90201-08085-00

$9.49

15

BUSHING, TACHOMETER GEAR

1E6-17843-00-00

Unavailable

16

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

17

GASKET 256113960000

90430-06014-00

Unavailable

18

BOLT,SOCKET

91317-06025-00

Unavailable

19

PLUG, VIEWER

2J2-11197-00-00

Unavailable

20

PLUG (583 ROCKER SHAFT)

90340-14038-00

Unavailable

21

GASKET 256131670000

90430-14043-00

Unavailable

22

COVER, CYLINDER HEAD SIDE

2J2-11186-00-00

Unavailable

23

O-RING (583 CYL. HEAD SIDE COV

93210-49296-00

Unavailable

24

BOLT,SOCKET

91317-06018-00

Unavailable

25

BPR6ES NGK SPLUG 4PK

BPR-6ES00-00-00

Unavailable

26

CAM, DECOMPRESSION

583-12288-01-00

Unavailable

27

SPRING, TORSION (583)

90508-16303-00

Unavailable

28

BRACKET, DECOMPRESSION

583-12283-00-00

Unavailable

29

OIL SEAL (1.2X17X2.5-583)

93104-12054-00

Unavailable
