Description

Price

1

CRANKSHAFT ASSEMBLY

(583-11400-00-00)

Unavailable

2

CRANK 1

(583-11412-00-00)

Unavailable

3

CRANK 2

(583-11422-00-00)

Unavailable

4

PIN, CRANK 1

583-11681-01-00

$63.99

5

BRG,CYL-CAL ROLLER 46.8G TM

93310-635A5-00

$76.99

6

ROD, CONNECTING

583-11651-00-00

Unavailable

7

BEARING(3KW)

93306-30630-00

$73.99

8

OIL SEAL (30X60X6-583)

93102-30145-00

$13.99

9

KEY, WOODRUFF

90280-05001-00

$12.49

10

WASHER, PLATE (583)

90201-12593-00

$9.49

11

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

12

NUT(55K)

90170-12347-00

$10.49

13

BEARING (3GV)

93306-30702-00

$74.99

14

COLLAR (2J2)

90387-20644-00

Unavailable

15

PISTON STD

2J2-11631-00-96

Unavailable

15

PISTON 1 O/S 0.25

2J2-11635-00-00

Unavailable

15

PISTON 2 O/S 0.50

2J2-11636-00-00

Unavailable

15

PISTON 3 O/S 0.75

(2J2-11637-00-00)

Unavailable

15

PISTON 4 O/S 1.00

2J2-11638-00-00

Unavailable

16

PISTON RING SET

583-11610-02-00

Unavailable

16

PISTON RING SET (1ST O/S)

583-11610-12-00

Unavailable

16

PISTON RING SET (2ND O/S)

583-11610-22-00

Unavailable

16

PISTON RINGSET 3RD (583-11610-31)

583-11610-32-00

Unavailable

16

PISTON RINGSET 4TH (4TH O/S)

583-11610-42-00

Unavailable

17

PIN, PISTON

2J2-11633-01-00

Unavailable

18

CIRCLIP 341116340000

93450-22027-00

Unavailable

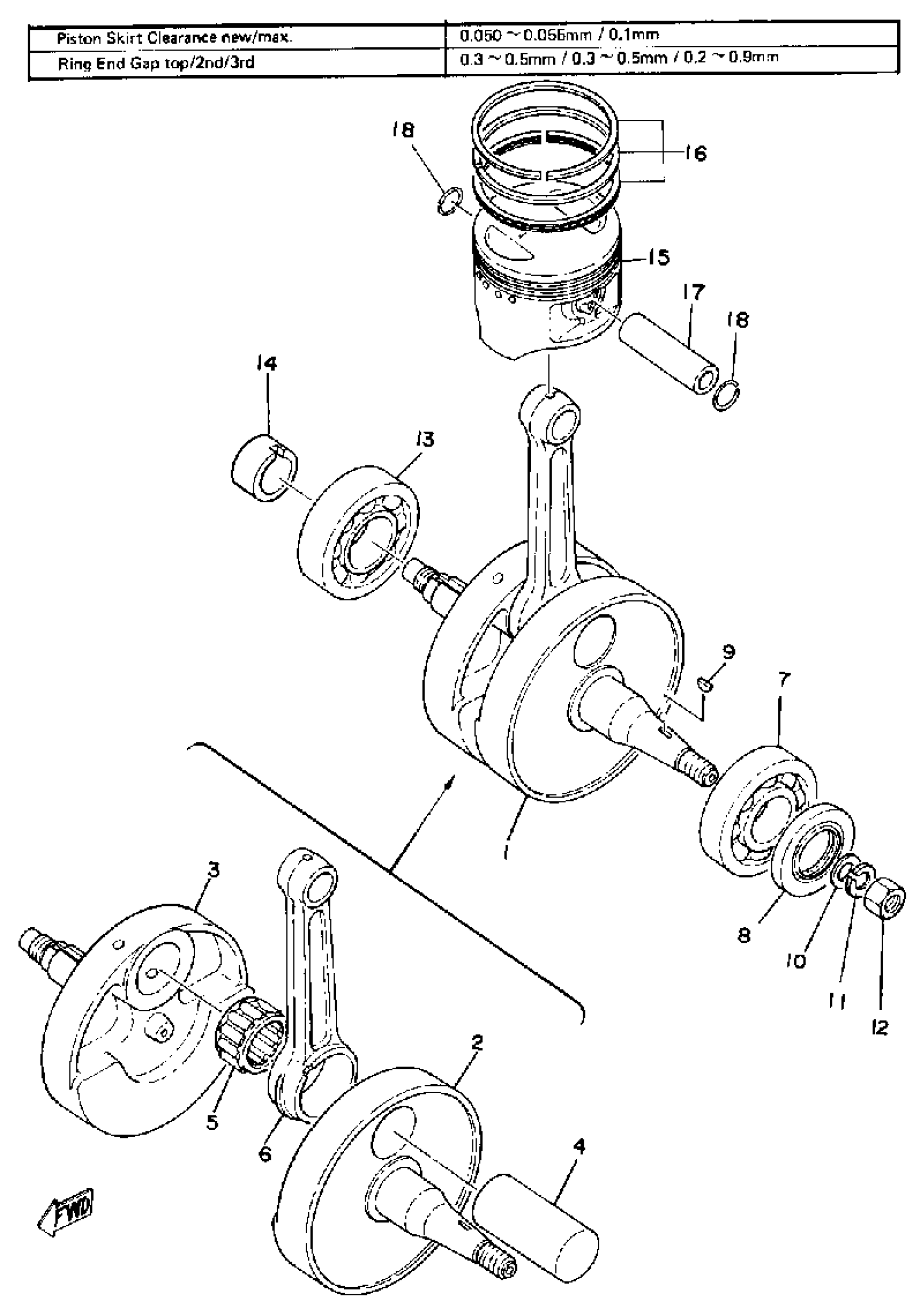

Yamaha SR500G (SR500G) 1980 CRANKSHAFT - PISTON Diagram

CRANKSHAFT ASSEMBLY

CRANK 1

CRANK 2

PIN, CRANK 1

BRG,CYL-CAL ROLLER 46.8G TM

ROD, CONNECTING

BEARING(3KW)

OIL SEAL (30X60X6-583)

KEY, WOODRUFF

WASHER, PLATE (583)

YBS67-12 WASHER,SPRING

NUT(55K)

BEARING (3GV)

COLLAR (2J2)

PISTON STD

PISTON 1 O/S 0.25

PISTON 2 O/S 0.50

PISTON 3 O/S 0.75

PISTON 4 O/S 1.00

PISTON RING SET

PISTON RING SET (1ST O/S)

PISTON RING SET (2ND O/S)

PISTON RINGSET 3RD (583-11610-31)

PISTON RINGSET 4TH (4TH O/S)

PIN, PISTON

CIRCLIP 341116340000
