1979 Yamaha SR500F (SR500F) Stand-Footrest Diagram

← All diagrams

Find the part on the Stand-Footrest diagram for your 1979 Yamaha SR500F (SR500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

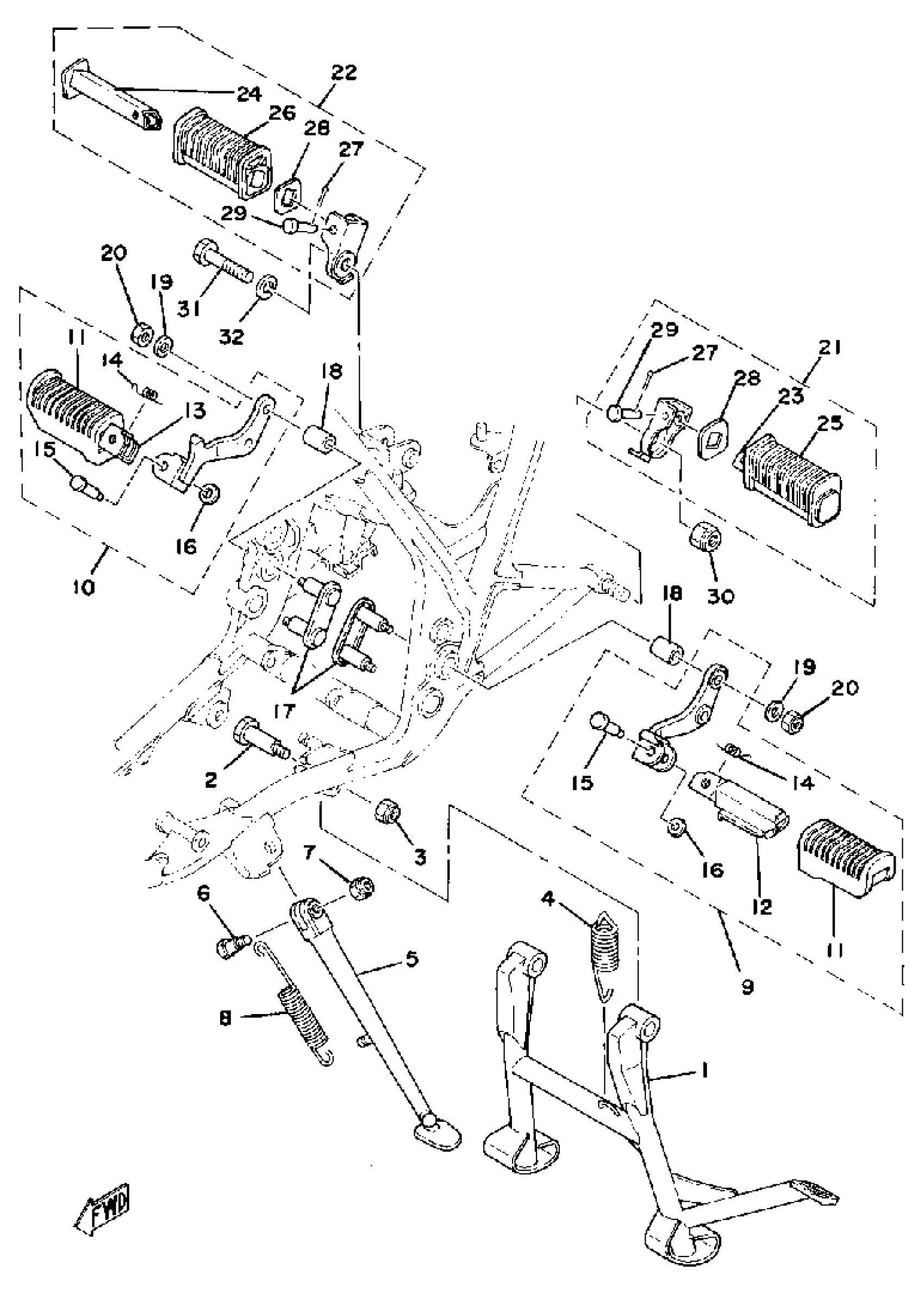

1979 Yamaha SR500F (SR500F) Stand-Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, MAIN

2J2-27111-00-00

—
Out of stock

2

BOLT(3EB)

90109-102G9-00

—
Out of stock

3

NUT, U

95617-10100-00

1
Out of stock

4

SPRING, TENSION (2J2)

90506-40175-00

—

$9.43

In stock

5

STAND, SIDE

1JN-27311-00-00

1
Out of stock

6

BOLT

90109-10473-00

1

$6.71

In stock

7

NUT, U

90185-10037-00

1

$6.68

In stock

8

SPRING, TENSION (1J7)

90506-28146-00

1

$15.78

In stock

9

FRT FOOTREST ASY L

48U-27410-00-33

1
Out of stock

10

FRT FOOTREST ASY R

48U-27420-00-33

1
Out of stock

11

COVER, FOOTREST

4L0-27423-00-00

1

$43.04

In stock

12

FOOTREST

3CK-27451-00-00

1
Out of stock

13

FOOTREST

3N6-27461-00-00

1
Out of stock

14

1

$3.26

In stock

15

PIN (214-27418-00)

90243-08006-00

1

$10.68

In stock

16

—

$6.58

In stock

17

BOLT, FOOTREST

2J2-27416-10-00

—
Out of stock

18

DAMPER, FOOTREST

2J2-27414-01-00

—
Out of stock

19

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

20

NUT, CROWN

95303-08800-00

—

$7.52

In stock

21

RR FOOTREST ASSEMBLY 1

2J2-27430-02-00

1
Out of stock

22

RR FOOTREST ASSEMBLY 2

2J2-27440-01-00

1
Out of stock

23

FOOTREST, REAR 1

447-27431-00-00

1
Out of stock

24

FOOTREST, REAR 2

447-27441-00-00

1
Out of stock

25

. COVER, RR FOOTREST

1J7-27433-00-00

1
Out of stock

26

. COVER, RR FOOTREST

1J7-27444-00-00

1
Out of stock

27

PIN, COTTER

91490-16020-00

1

$6.23

In stock

28

WASHER 447274370000

90209-18070-00

—

$2.57

In stock

29

PIN, CLEVIS (2F9)

91701-06035-00

—
Out of stock

30

NUT, SELF-LOCKING(1KH)

90185-12134-00

—

$10.11

In stock

31

BOLT(6TA)

97027-12050-00

—
Out of stock

32

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

33

WASHER 278234480000

90209-12102-00

—
Out of stock
