1979 Yamaha SR500F (SR500F) Frame Diagram

← All diagrams

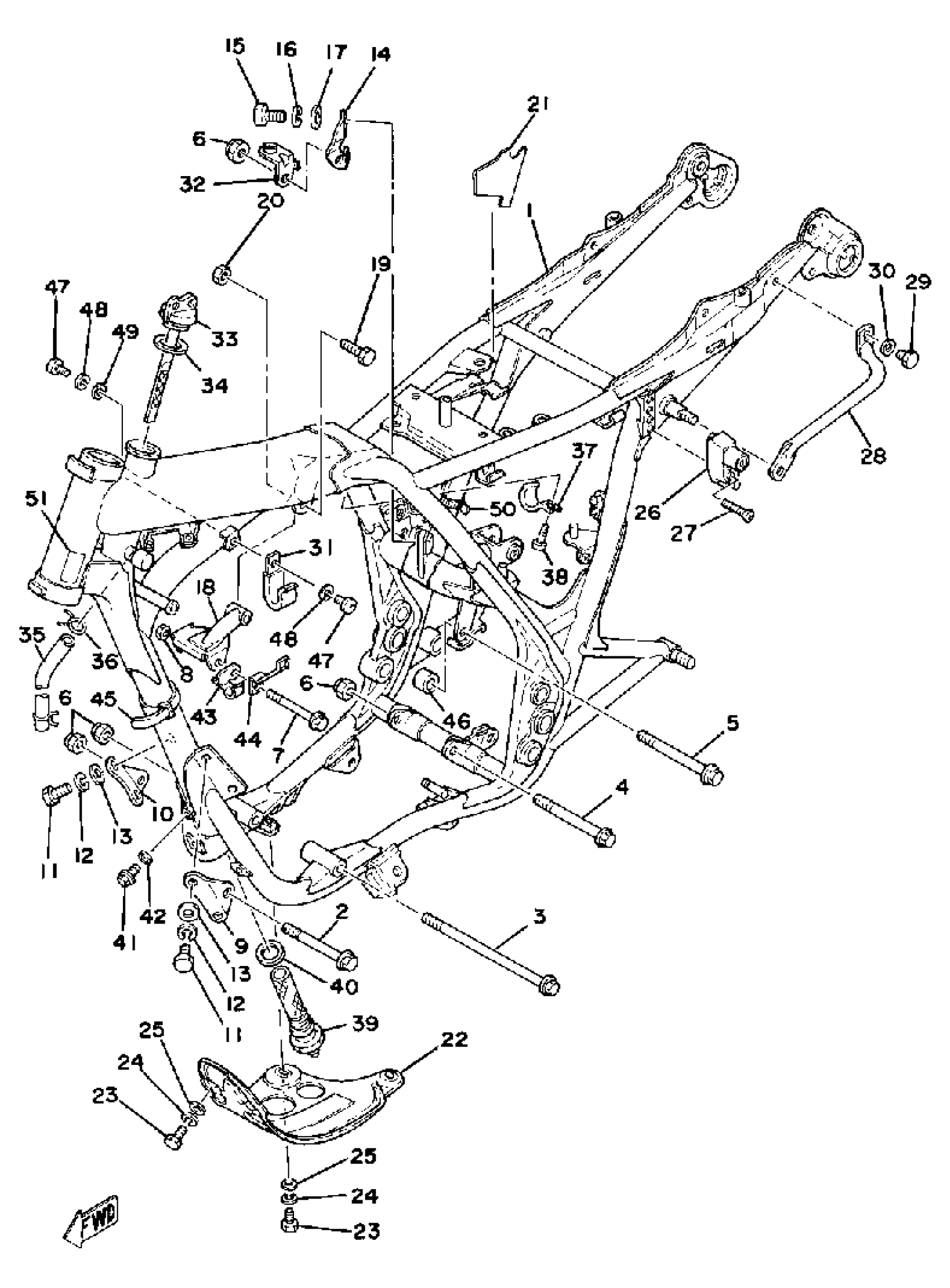

Find the part on the Frame diagram for your 1979 Yamaha SR500F (SR500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha SR500F (SR500F) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(2J2-21110-00-33)

1
Out of stock

2

BOLT, WASHER BASED(1RU)

90105-10747-00

1
Out of stock

3

BOLT, WASHER BASED(4KM)

90105-10780-00

—

$9.34

In stock

4

BOLT, WASHER BASED (2H7)

90105-10105-00

1
Out of stock

5

BOLT(30W)

90109-101A0-00

—

$14.05

In stock

6

1

$6.02

In stock

7

BOLT (2J2)

90105-08118-00

1

$5.65

In stock

8

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

9

STAY, ENGINE 2

2J2-21315-00-33

1
Out of stock

10

STAY, ENGINE FRONT (R.H)

2J2-21316-00-33

—

$8.58

In stock

11

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

13

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

14

STAY, ENGINE REAR

2J2-21317-01-00

—

$8.18

In stock

15

BOLT (682)

97013-08025-00

1

$6.80

In stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

17

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

18

STAY, ENGINE

2J2-21318-01-00

—
Out of stock

19

BOLT

97014-08040-00

—

$5.26

In stock

20

NUT, SELF-LOCKING (3Y2)

90185-08089-00

1

$7.31

In stock

21

COVER

(2J2-2117F-00-00)

1
Out of stock

22

PROTECTOR, ENGINE

3GW-21471-00-33

—
Out of stock

23

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

WASHER, PLATE

90201-06M08-00

1
Out of stock

26

HELMET HANGER ASSY

26H-21308-01-00

—

$74.80

In stock

27

SCREW, FLAT

98707-06030-00

—

$6.08

In stock

28

HANDLE, STANDING

2J2-21165-00-00

1
Out of stock

29

BOLT (661)

97013-06012-00

—

$4.71

In stock

30

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

31

CLAMP

(90465-10018-00)

1
Out of stock

32

STAY, STOP SWITCH

2J2-2144G-00-00

—
Out of stock

33

BODY, CAP

2J2-21771-10-00

—
Out of stock

34

GASKET (583 OIL TANK CAP)

90430-27124-00

—
Out of stock

35

HOSE (L200)

90445-11289-00

—
Out of stock

36

CLIP

90467-100A1-00

—
Out of stock

37

CLAMP, WIRE HRNES 1

(2J2-21335-00-00)

1
Out of stock

38

SCREW, TAPPING(6U1)

97780-50610-00

—
Out of stock

39

NET, OIL TANK FILTER

583-21756-00-00

—
Out of stock

40

GASKET (583 OIL TANK)

90430-22123-00

—

$8.06

In stock

41

BOLT, WASHER BASED(4JT)

90105-08729-00

—

$3.92

In stock

42

WASHER, PLATE 3411117500

90201-08087-00

—

$3.13

In stock

43

CLAMP

90465-10090-00

1
Out of stock

44

CLAMP

(90465-08144-00)

1
Out of stock

45

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

46

COLLAR, REAR ENGINE STAY

2J2-21459-01-00

—
Out of stock

47

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

48

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

49

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

50

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

51

PLATE, APPROVAL NO

(2F5-21181-01-00)

1
Out of stock
