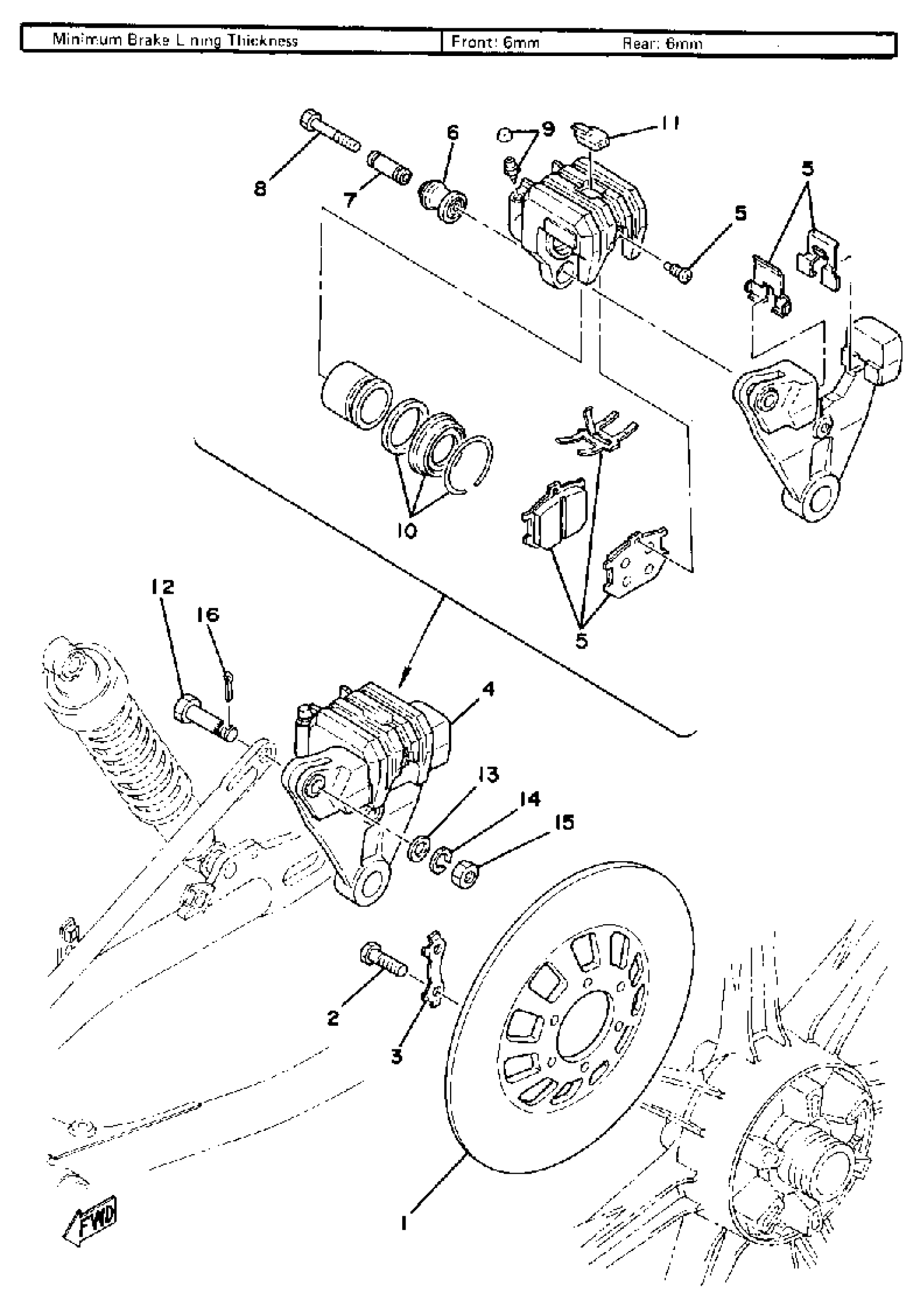

Yamaha SR500F (SR500F) 1979 REAR DISC BRAKE-CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

1L9-25831-00-00

Unavailable

2

BOLT, HEXAGON (1L9)

90101-08312-00

$9.49

3

WASHER, LOCK

1J3-25834-01-00

$6.99

4

CALIPER ASSEMBLY

(2J2-25810-51-00)

Unavailable

5

BRAKE PAD KIT, REAR

(2J2-W0046-01-00)

Unavailable

6

BOOT, CALIPER

1J3-25917-00-00

Unavailable

7

. SLEEVE, CALIPER

1J3-25838-00-00

Unavailable

8

. BOLT, WASHER BASED

90105-08145-00

Unavailable

9

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

10

CALIPER SEAL KIT

1J3-W0047-00-00

$56.99

11

. CAP, INDICATOR

1J3-25845-01-00

Unavailable

12

BOLT

(90109-08499-00)

Unavailable

13

.. WASHER, PLATE

92990-08600-00

Unavailable

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

NUT, HEXAGON (509)

90170-08158-00

$2.34

16

PIN, COTTER

91490-20025-00

Unavailable
