1979 Yamaha SR500F (SR500F) Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1979 Yamaha SR500F (SR500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

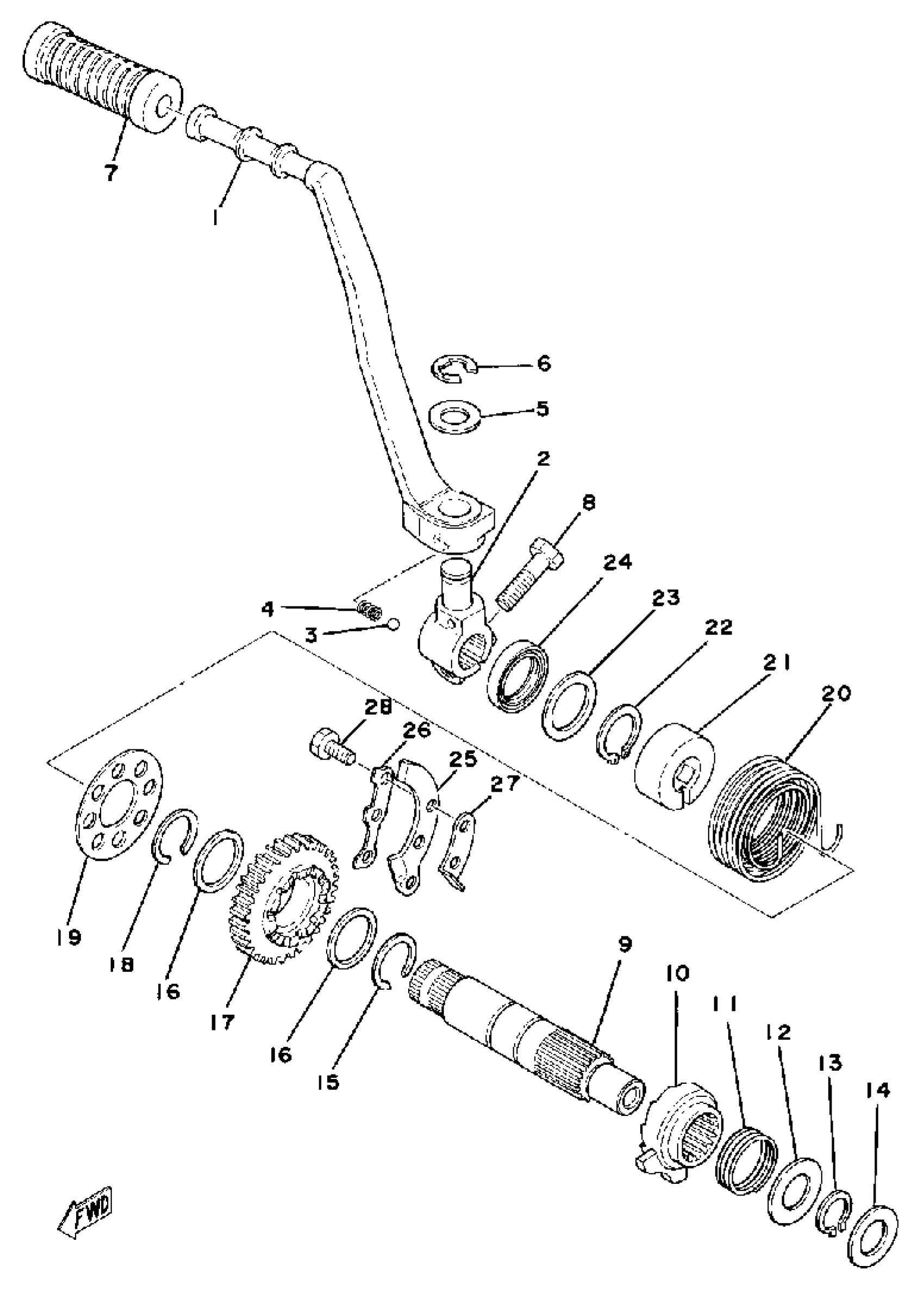

1979 Yamaha SR500F (SR500F) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASSY

1JN-15610-00-00

—

$233.95

In stock

2

BOSS, KICK CRANK

583-15621-00-00

1
Out of stock

3

BALL (12R)

93507-32031-00

1
Out of stock

4

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

5

WASHER PLATE 278156130000

90201-15234-00

1

$6.78

In stock

6

CIRCLIP

99006-10600-00

1

$6.91

In stock

7

COVER, KICK CRANK

1T1-15618-00-00

1
Out of stock

8

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

9

AXLE, KICK

583-15661-00-00

—
Out of stock

10

WHEEL, RACHET

583-15671-00-00

—
Out of stock

11

SPRING COMPRESSION363156750000

90501-23143-00

—
Out of stock

12

COVER, SPRING

363-15676-00-00

1
Out of stock

13

CIRCLIP(1EY)

99009-19400-00

1

$6.17

In stock

14

WASHER PLATE 168171160000

90201-20278-00

1
Out of stock

15

CIRCLIP

93440-25020-00

1
Out of stock

16

WASHER, PLATE(59W)

90201-253K0-00

—

$6.18

In stock

17

GEAR, KICK

583-15641-00-00

—
Out of stock

18

CIRCLIP (4L0)

93440-25084-00

—

$3.96

In stock

19

COVER, SPRING

(583-15676-00-00)

1
Out of stock

20

SPRING, TORSION (583 KICK)

90508-32280-00

—
Out of stock

21

SPACER

(90560-25154-00)

1
Out of stock

22

CIRCLIP(JF7)

99009-25400-00

—

$6.68

In stock

23

WASHER, PLATE(1FK)

90201-256K6-00

—

$3.49

In stock

24

OIL SEAL (25X35X7-256)

93102-25064-00

—
Out of stock

25

GUIDE, RACHET WHEEL

583-15674-00-00

—
Out of stock

26

WASHER, LOCK

363-15686-00-00

—
Out of stock

27

STOPPER

434-15668-00-00

—
Out of stock

28

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock
