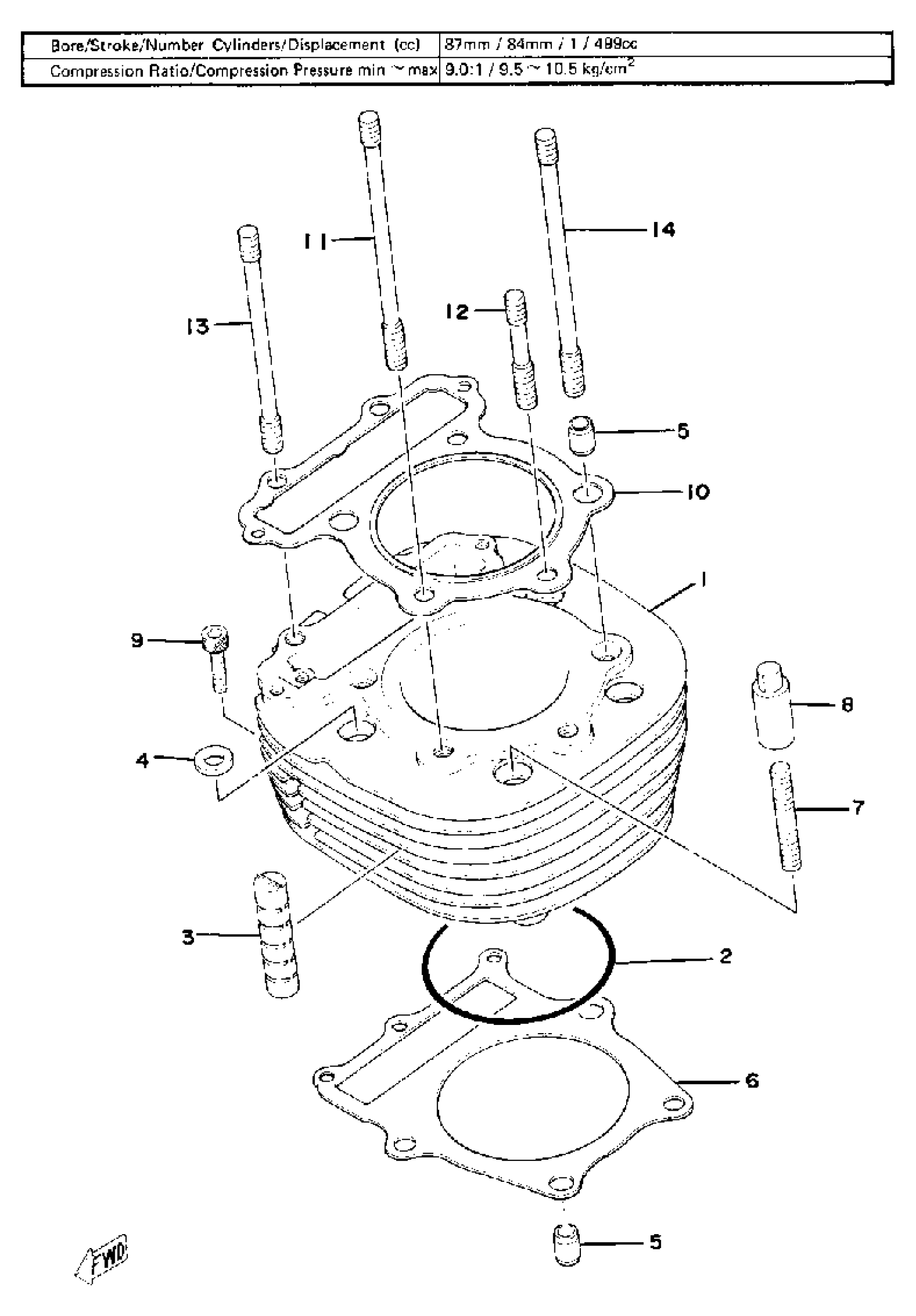

Find the part on the Cylinder diagram for your 1979 Yamaha SR500F (SR500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha SR500F (SR500F) Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER

2J2-11310-00-00

1
Out of stock

2

O-RING (583 CYLINDER)

93210-92295-00

1
Out of stock

3

ABSORBER

583-11127-00-00

1

$6.72

In stock

4

WASHER, PLATE (583)

90201-10590-00

1

$4.95

In stock

5

PIN, DOWEL

99530-14016-00

1

$3.20

In stock

6

GASKET, CYLINDER

3HT-11351-00-00

1

$24.03

In stock

7

BOLT (363-11361-00)

90116-10087-00

1
Out of stock

8

NUT

90179-10021-00

1

$21.54

In stock

9

1

$3.82

In stock

10

GASKET, CYLINDER HEAD

2J2-11181-09-00

—

$98.99

In stock

11

BOLT, STUD (583 CYLINDER)

90116-10222-00

1
Out of stock

12

BOLT, STUD (583 CYLINDER)

90116-10223-00

1
Out of stock

13

BOLT, STUD (583 CYLINDER)

90116-08190-00

1
Out of stock

14

BOLT, STUD (583)

90116-10225-00

1
Out of stock
