1979 Yamaha SR500F (SR500F) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1979 Yamaha SR500F (SR500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

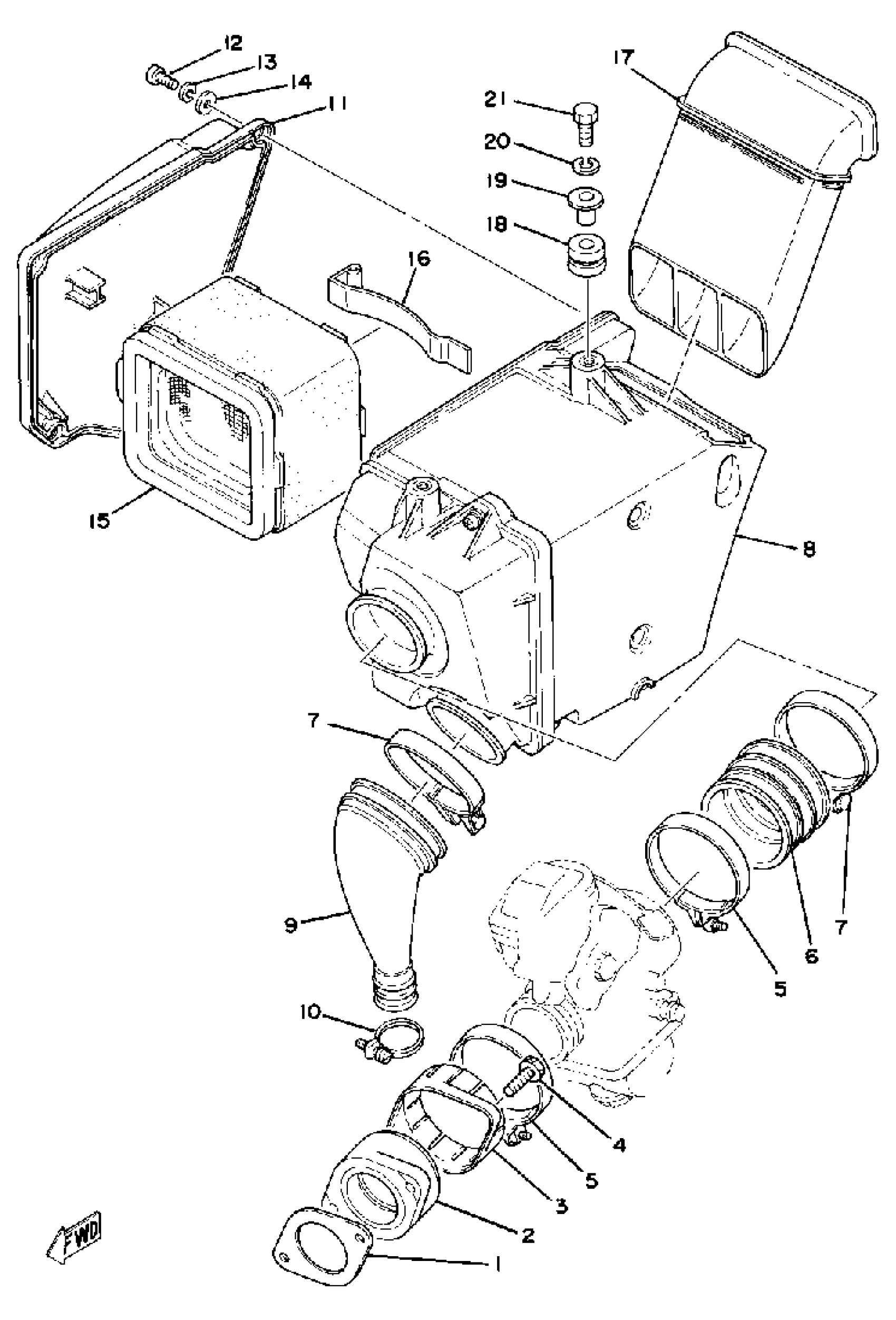

1979 Yamaha SR500F (SR500F) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, MANIFOLD

3HT-13556-00-00

1

$9.89

In stock

2

JOINT, MANIFOLD

583-13565-01-00

—

$99.48

In stock

3

COVER,JOINT

256-13564-00-00

—

$14.12

In stock

4

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

5

HOSE CLAMP ASSY

90450-58002-00

1

$15.11

In stock

6

JOINT, AIR CLEANER 1

583-14453-01-00

—
Out of stock

7

HOSE CLAMP ASSY

90450-62006-00

1

$10.77

In stock

8

AIR CLNR CASE ASSEMBLY

2J2-14401-00-00

1
Out of stock

9

JOINT, AIR CLNR 2

2J2-14463-00-00

1
Out of stock

10

CLAMP, HOSE (583)

90460-22083-00

1
Out of stock

11

CAP, CLEANER CASE 2

2J2-14422-00-00

1
Out of stock

12

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

WASHER, PLAIN (646)

92990-05600-00

1
Out of stock

15

ELEMENT,AIR CLNR

2J2-14451-01-00

—
Out of stock

16

PLATE, ELEMENT FTNG

2J2-14468-00-00

1
Out of stock

17

DUCT

(2J2-14437-00-00)

1
Out of stock

18

GROMMET 839774310000

90480-14023-00

—

$4.74

In stock

19

COLLAR 437216330000

90387-07391-00

—

$7.74

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock
