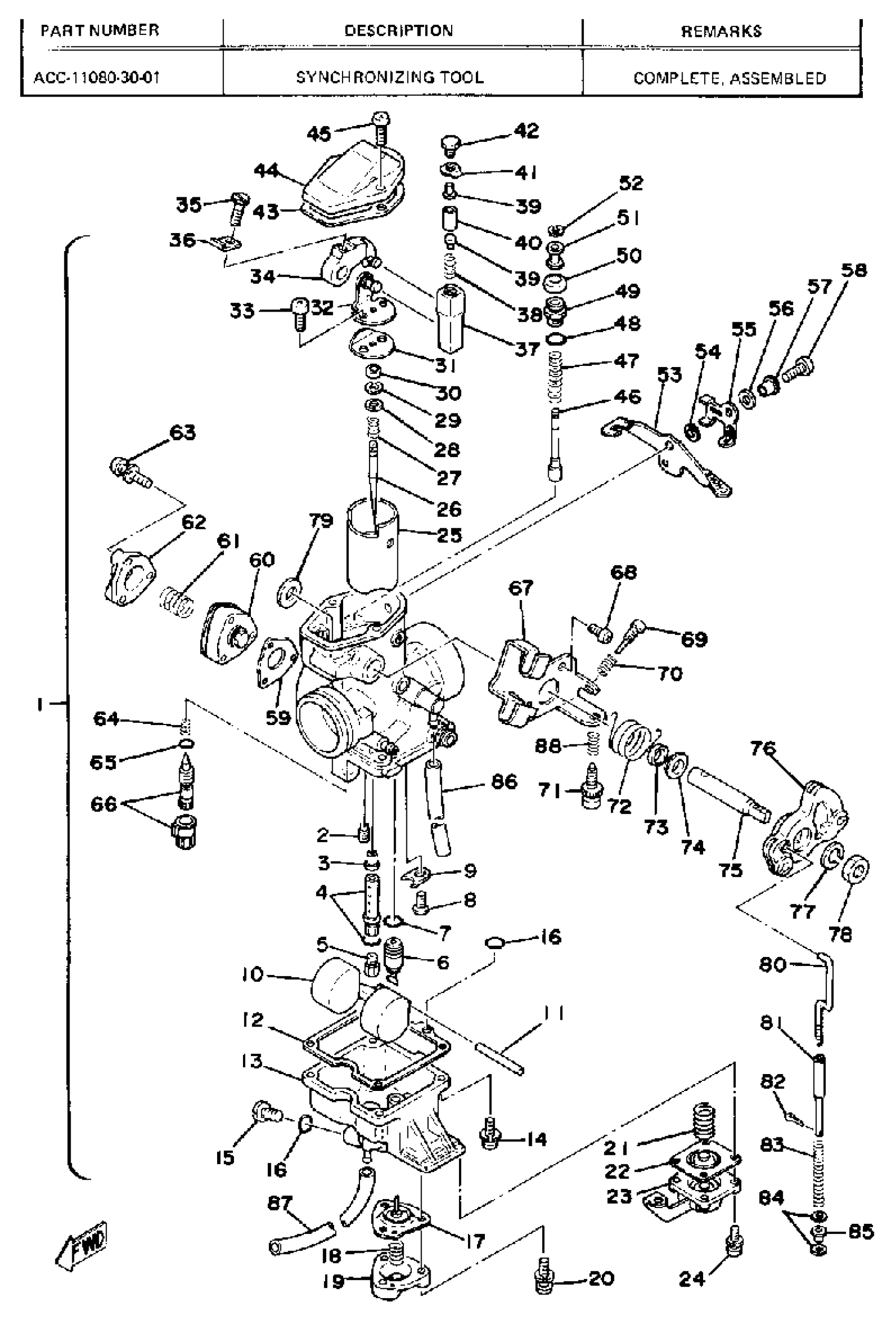

Find the part on the Carburetor diagram for your 1979 Yamaha SR500F (SR500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha SR500F (SR500F) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

2J2-14101-00-00

1
Out of stock

2

JET, PILOT (# 25)

193-14142-25-A0

1
Out of stock

2

JET, PILOT (# 25)

193-14142-25-A0

1
Out of stock

3

. NOZZLE, MAIN

2H0-14141-48-00

1
Out of stock

4

PIPE, JET NEEDLE

583-14148-00-00

—

$23.49

In stock

5

JET, MAIN #290

137-14143-58-A1

—
Out of stock

5

JET, MAIN #300

137-14143-60-A0

1

$9.18

In stock

5

JET, MAIN #300

137-14143-60-A0

1

$9.18

In stock

5

JET, MAIN #310

137-14143-62-A1

—
Out of stock

6

VALVE SEAT ASSY

2H0-14190-28-00

1

$39.60

In stock

7

O-RING

8F2-14147-00-00

1
Out of stock

8

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

9

. PLATE

2H0-14146-00-00

1
Out of stock

10

. FLOAT

2H0-14185-00-00

1
Out of stock

11

PIN, FLOAT

537-14186-00-00

1
Out of stock

12

GASKET, FLOAT CHAMBER

2H0-14184-00-00

—

$17.85

In stock

13

BODY, FLOAT CHAMBER

(99999-01150-00)

1
Out of stock

14

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

15

. PLUG, DRAIN

2H0-14191-00-00

1
Out of stock

16

O-RING

583-14561-00-00

—

$4.74

In stock

17

—

$27.89

In stock

18

. SPRING, DIAPHRAGM

2J2-14933-00-00

1
Out of stock

19

COVER, DIAPHRAGM

(2J2-14958-00-00)

1
Out of stock

20

SCREW, PN/HD.W/WSHR

(97602-04114-00)

1
Out of stock

21

SPRING

(2H0-14589-00-00)

1
Out of stock

22

—

$52.62

In stock

23

. LEVER, STARTER

2H0-14905-00-00

1
Out of stock

24

SCREW, PAN HEAD

98517-04012-00

—

$3.28

In stock

25

VALVE, THROTTLE 1

(2H0-14112-35-00)

1
Out of stock

26

. NEEDLE

239-14116-25-00

1
Out of stock

27

. SPRING, THRTL VALVE

2H0-14131-00-00

1
Out of stock

28

. WASHER, NEEDLE

2H0-14235-00-00

1
Out of stock

29

CLIP

3FA-14137-00-00

—

$6.80

In stock

30

. RING

2H0-14194-00-00

1
Out of stock

31

SEAT, SPRING

(2H0-14936-00-00)

1
Out of stock

32

BRACKET 1

(2H0-14291-00-00)

1
Out of stock

33

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

34

LEVER, THROTTL.VALV

(583-14292-00-00)

1
Out of stock

35

. SCREW

583-14592-00-00

1
Out of stock

36

WASHER

(583-14597-00-00)

1
Out of stock

37

CONNECTOR

(583-14274-00-00)

1
Out of stock

38

SPRING, DIAPHRAGM

(1T2-14933-00-00)

1
Out of stock

39

WASHER

(583-14558-00-00)

1
Out of stock

40

PIN, FLOAT

(583-14386-00-00)

1
Out of stock

41

WASHER

(583-14951-00-00)

1
Out of stock

42

SCREW

(583-14216-00-00)

1
Out of stock

43

GASKET, MIXING CHAMBER TOP

583-14536-00-00

—

$37.68

In stock

44

TOP, MIXING CHAMBER

(2H0-14158-00-00)

1
Out of stock

45

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

46

. PLUNGER, STARTER

2H0-14171-00-00

1
Out of stock

47

. SPRING, PLUNGER

256-14135-00-00

1
Out of stock

48

. O-RING

583-14562-00-00

1
Out of stock

49

. CAP, PLUNGER

2H0-14174-00-00

1
Out of stock

50

. COVER, PLUNGER CAP

802-14173-00-00

1
Out of stock

51

. RING

583-14918-00-00

1
Out of stock

52

. CLIP

737-14137-00-00

1
Out of stock

53

. LEVER, STARTER 1

2H0-14175-00-00

1
Out of stock

54

. SPRING, CHOKE LEVER

2H0-14218-00-00

1
Out of stock

55

PLATE, STARTER LVR

(2J2-14178-00-00)

1
Out of stock

56

. WASHER

2J2-14962-00-00

1
Out of stock

57

. RING

2J2-14194-00-00

1
Out of stock

58

SCREW, PAN

98507-06014-00

—

$6.18

In stock

59

GASKET, ENRICHMENT PUMP

2H0-14198-00-00

—
Out of stock

60

ENRICHMENT PUMP BODY ASSY

2H0-14217-00-00

—

$124.82

In stock

61

. SPRING, DIAPHRAGM

3H6-14933-00-00

1
Out of stock

62

COVER, DIAPHRAGM

(2H0-14958-00-00)

1
Out of stock

63

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

64

. SPRING, PILOT ADJUSTING

2H0-14212-00-00

1
Out of stock

65

O-RING, PILOT SCREW

2H0-14147-00-00

—

$3.60

In stock

66

. SCREW, PILOT ADJUSTING

2H0-14211-00-00

1
Out of stock

67

BRACKET, THROTTLE

(2J2-14571-00-00)

1
Out of stock

68

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

69

. SCREW, GUIDE

583-14245-00-00

1
Out of stock

70

. SPRING, THRTL STOP

583-14133-00-00

1
Out of stock

71

SCREW, THRTL STOP

(2J2-14121-00-00)

1
Out of stock

72

. SPRING, THRTL VALVE

583-14131-01-00

1
Out of stock

73

. SEAL

583-14239-01-00

1
Out of stock

74

. COLLAR

583-14265-00-00

1
Out of stock

75

SHAFT, THRTL LEVER

(2H0-14215-00-00)

1
Out of stock

76

. BRACKET

2J2-14573-00-00

1
Out of stock

77

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

78

NUT

812-14594-00-00

—

$5.34

In stock

79

. SPACER

583-14264-00-00

1
Out of stock

80

. ROD

2J2-14992-00-00

1
Out of stock

81

. ROD

2H0-14992-00-00

1
Out of stock

82

. PIN, COTTER

91401-10015-00

1
Out of stock

83

. SPRING

2J2-14589-00-00

1
Out of stock

84

. WASHER

2H0-14227-00-00

1
Out of stock

85

. COLLAR

2H0-14534-00-00

1
Out of stock

86

HOSE (L340)

90445-08684-00

—

$3.37

In stock

87

PIPE, OVER FLOW

2J2-14196-00-00

—

$30.20

In stock

88

SPRING

8X0-14500-00-00

—

$17.91

In stock
