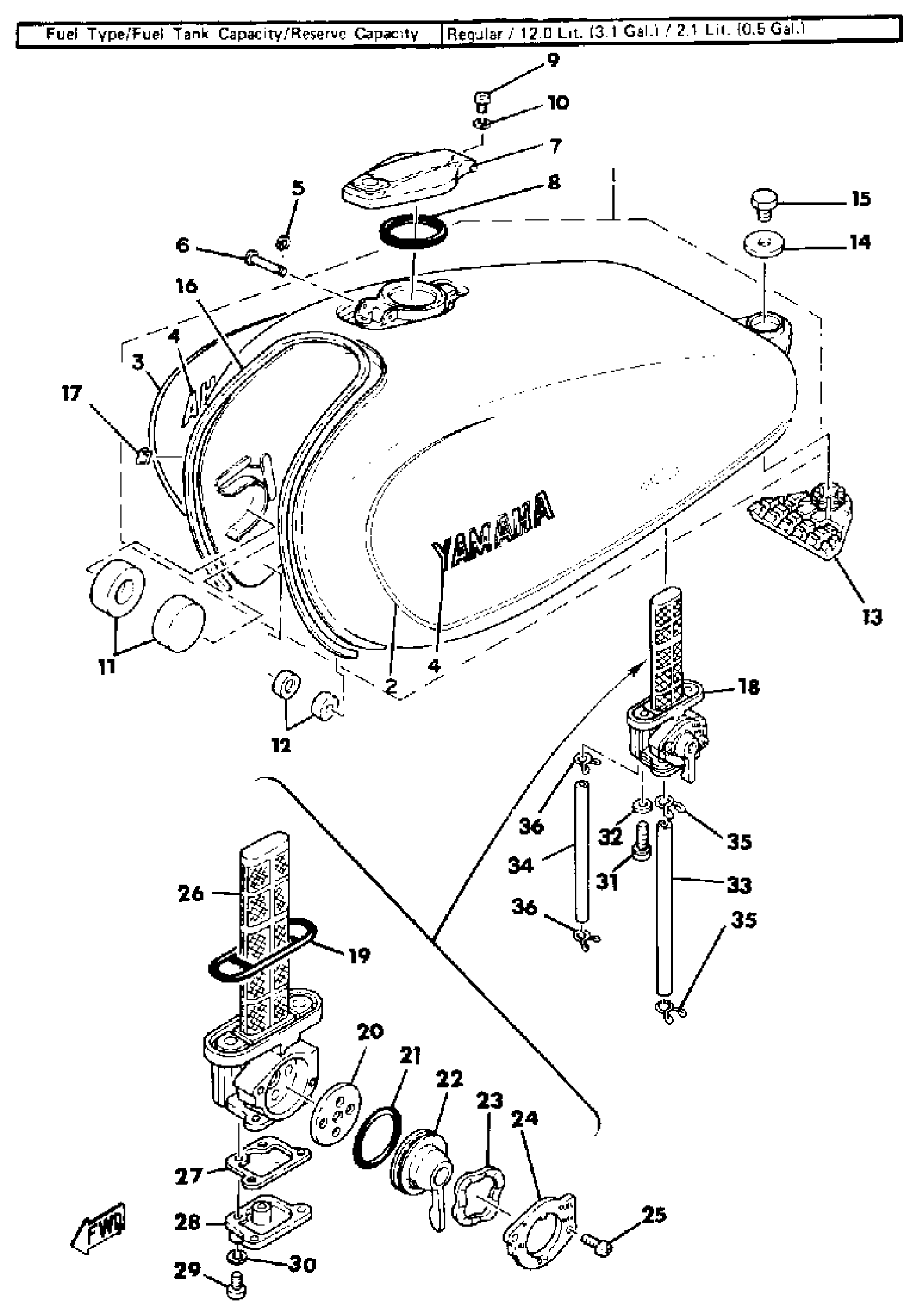

Yamaha SR500F (SR500F) 1979 FUEL TANK Diagram

FUEL TANK

(2J2-24110-01-08)

Unavailable

FUEL TANK

2J2-24110-01-09

Unavailable

GRAPHIC, FUEL TNK 1

(2J2-24244-10-00)

Unavailable

GRAPHIC, FUEL TNK 2

(2J2-24245-10-00)

Unavailable

EMBLEM, YAMAHA(PASTEL GOLD)

99245-00120-00

Unavailable

CIRCLIP (604)

93430-02001-00

$8.49

PIN, SPECIAL SHAPE

90249-03123-00

Unavailable

CAP ASSY

4R0-24602-01-00

Unavailable

GASKET, CAP

2M0-24641-00-00

$44.99

GASKET, EXHAUST

98507-05008-00

$3.55

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

DAMPER, TANK LOCATING 1

2J2-24181-00-00

$7.99

DAMPER, TANK LOCATING 3

2J2-24183-01-00

$4.63

DAMPER, TANK LOCATING 2

1J7-24182-01-00

$34.99

WASHER

90209-08008-00

Unavailable

BOLT(62E)

97013-08012-00

Unavailable

PLATE, MOLD

3EB-24189-00-00

Unavailable

CLIP

90468-03063-00

Unavailable

FUEL COCK ASSY 1

2J2-24500-01-00

Unavailable

O-RING

1J7-24512-00-00

Unavailable

VALVE

16G-24523-00-00

Unavailable

SEAL, FUEL COCK

1J7-24534-00-00

Unavailable

. LEVER, COCK

1J7-24524-00-00

Unavailable

. WASHER, WAVE

1J7-24518-00-00

Unavailable

. PLATE, LVR FITTING

1J7-24525-00-00

Unavailable

SCREW PAN HEAD

98580-03010-00

Unavailable

. NET, FILTER 1

1J7-24514-02-00

Unavailable

GASKET, DRAIN COVER

1J7-24522-00-00

Unavailable

CUP, FILTER

(1L9-24521-00-00)

Unavailable

SCREW, PAN HEAD

98511-04012-00

Unavailable

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

SCREW 366241430000

90149-06008-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

HOSE (L450)

90445-10144-00

Unavailable

HOSE (L200)

90445-07176-00

Unavailable

CLIP

90467-090A2-00

Unavailable

CLIP (1J7)

90467-07029-00

Unavailable
