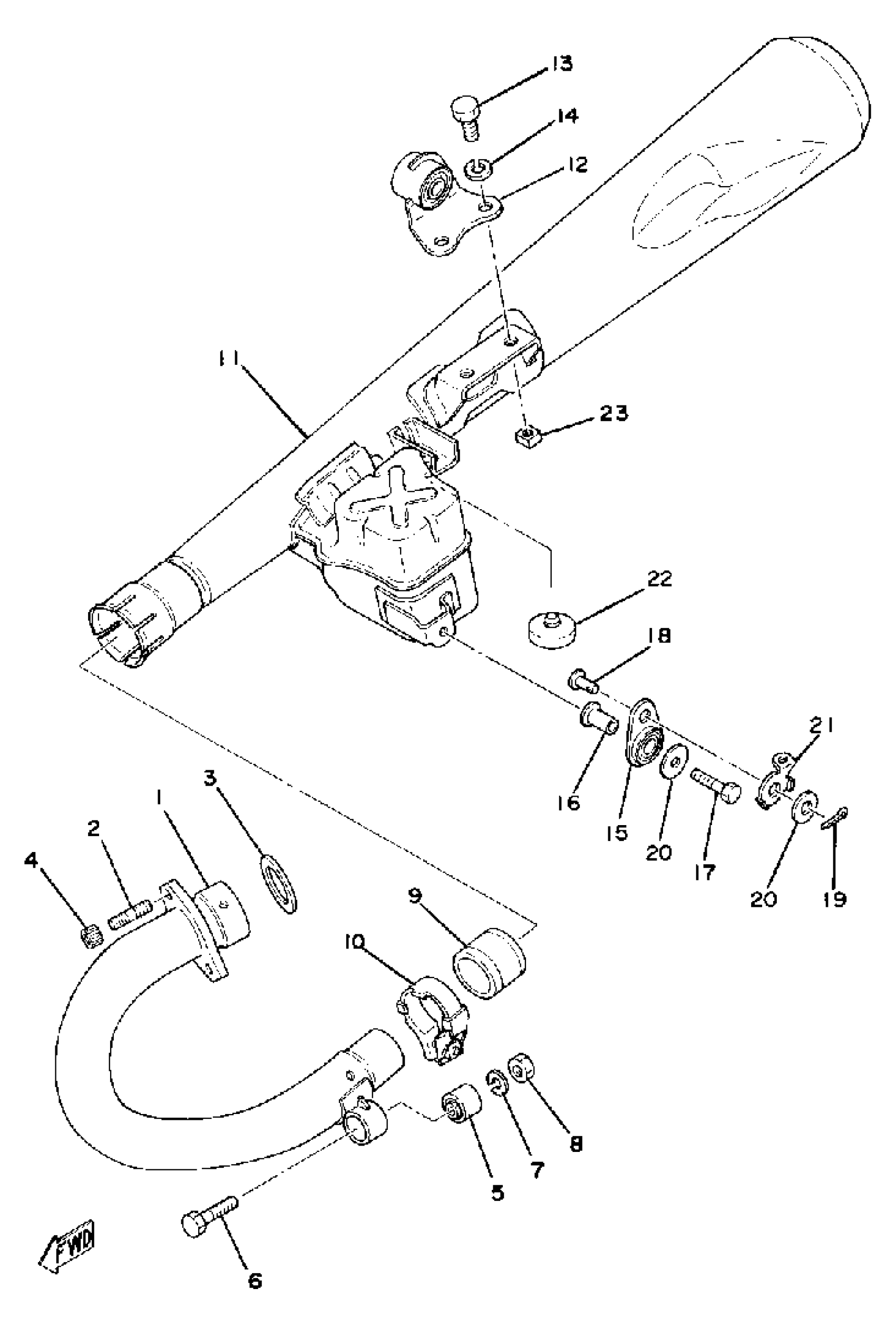

Yamaha SR500F (SR500F) 1979 EXHAUST Diagram

#

Description
Price

1

PIPE,EXHAUST L

99999-03104-00

Unavailable

2

BOLT, STUD 3

95617-08615-00

$5.60

3

GASKET, EXHAUST PIPE

3GD-14613-00-00

$14.49

4

NUT (371)

90179-08004-00

$9.49

5

DAMPER, MUFFLER

2J2-14737-02-00

Unavailable

6

BOLT

97013-08045-00

Unavailable

7

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

8

NUT(6L2)

95333-08600-00

$2.49

9

GASKET, MUFFLER

3GW-14714-00-00

$36.99

10

BAND, SILENCER

2J2-14788-01-00

$23.99

11

MUFFLER L

2J2-14711-80-00

Unavailable

12

STAY, MUFFLER 1

3HT-14771-01-00

$41.99

13

BOLT(8BT)

97017-10020-00

$8.49

14

WASHER(6TA)

92907-10100-00

$8.49

15

STAY, MUFFLER

2J2-14791-01-00

Unavailable

16

COLLAR (2J2)

90387-08664-00

Unavailable

17

BOLT

97013-08035-00

Unavailable

18

PIN, CLEVIS (2J2)

91701-08018-00

Unavailable

19

PIN, COTTER

91490-25020-00

Unavailable

20

WASHER (1T1)

90201-08649-00

Unavailable

21

CLAMP (2J2)

90465-08134-00

Unavailable

22

STOPPER, MAIN STAND

1A0-27114-00-00

Unavailable

23

NUT, FLANGE(3BM)

95704-10500-00

Unavailable
