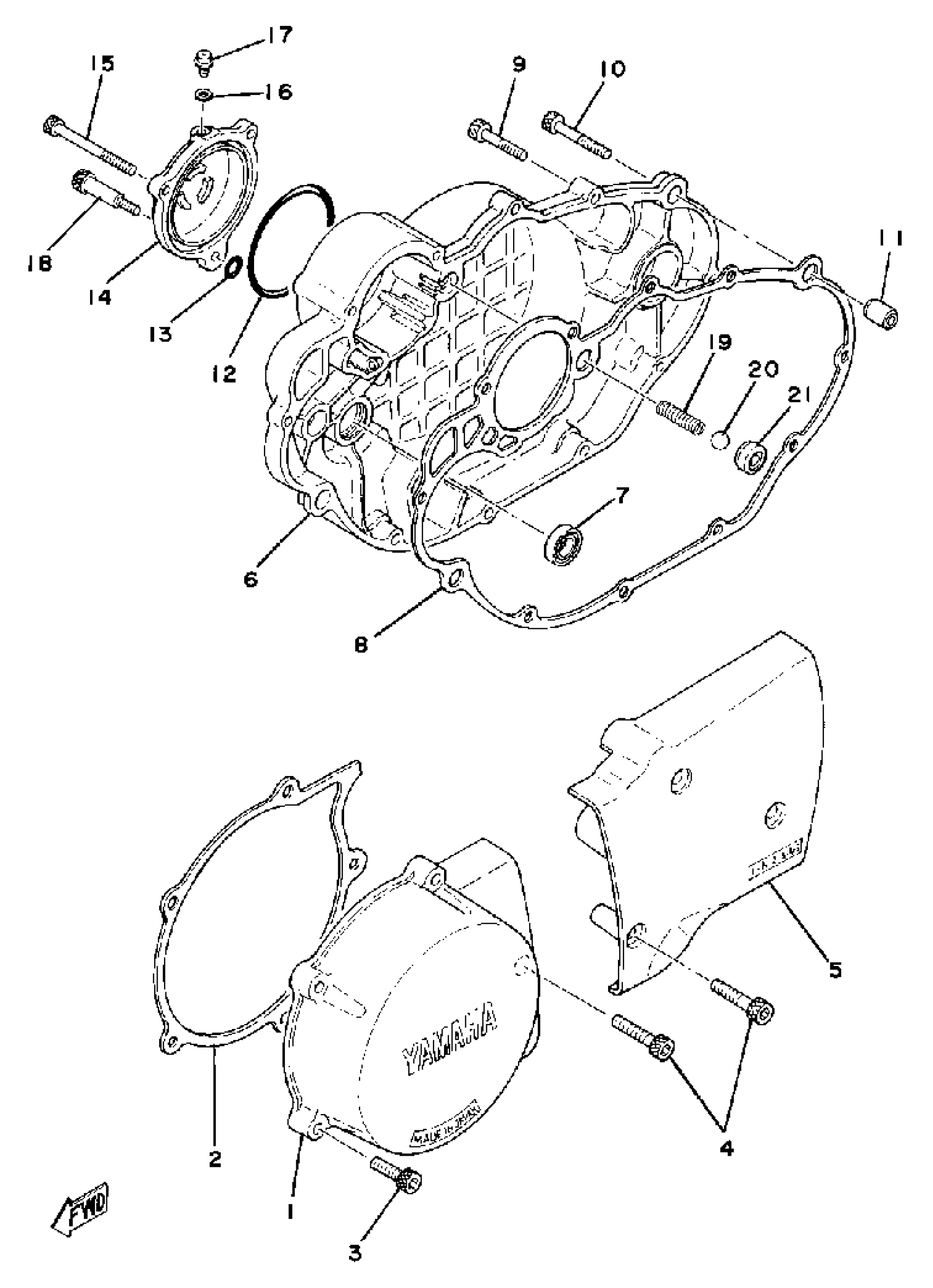

Yamaha SR500F (SR500F) 1979 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

2J2-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

3HT-15451-00-00

$24.99

3

BOLT,SOCKET

91317-06025-00

$5.60

4

BOLT,SOCKET

91317-06035-00

Unavailable

5

COVER, CRANKCASE 2

3GW-15421-00-00

Unavailable

6

COVER, CRANKCASE (R.H)

2J2-W1542-00-00

Unavailable

7

OIL SEAL (14X25X5.5-583)

93101-14089-00

$12.49

8

CRANKCASE COVER 3 GASKET

3HT-15462-R1-00

$22.99

9

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

10

BOLT,SOCKET

91317-06040-00

$3.76

11

PIN, DOWEL

99530-12016-00

$4.89

12

O-RING (583 OIL CLEANER)

93210-64297-00

$8.49

13

O-RING

93210-07438-00

$8.49

14

COVER, ELEMENT

2J2-13447-00-00

$31.99

15

BOLT,SOCKET

91317-06060-00

$3.76

16

GASKET

90430-05126-00

Unavailable

17

SCREW (583)

90149-05110-00

Unavailable

18

BOLT (2H0)

90109-06511-00

Unavailable

19

SPRING (583 OIL CLEANER)

90501-05378-00

Unavailable

20

BALL

93503-08007-00

Unavailable

21

SEAT, CHECK BALL

583-13113-00-00

Unavailable
