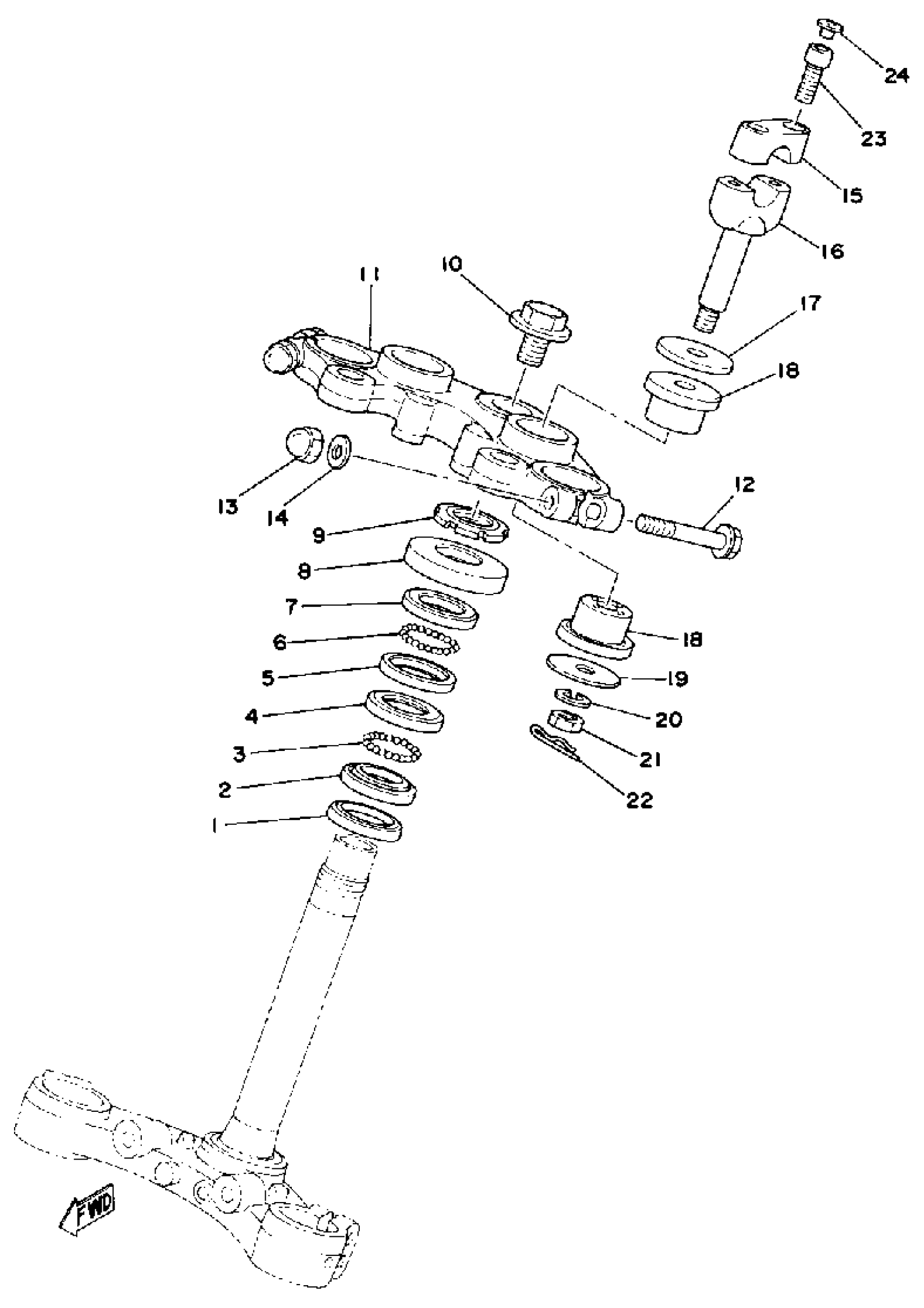

Yamaha SR500E (SR500E) 1978 STEERING Diagram

#

Description
Price

1

SEAL, DUST

164-23462-00-00

$7.99

2

RACE, BALL 1

B6E-23411-00-00

$8.49

3

BALL

93501-04011-00

$8.49

4

RACE, BALL 2

B6E-23412-00-00

$13.49

5

RACE, BALL 2

BP2-23412-00-00

$7.49

6

BALL

93503-16003-00

$2.72

7

RACE, BALL 1

BP2-23411-00-00

$11.49

8

COVER BALL RACE

10V-23416-01-00

Unavailable

9

NUT

90179-25004-00

$24.99

10

BOLT (2A2)

90105-14102-00

$5.60

11

CROWN, HANDLE

(2J2-23435-00-98)

Unavailable

12

BOLT, FLANGE

95817-08055-00

$4.21

13

NUT, CROWN

95303-08800-00

$9.49

14

.. WASHER, PLATE

92990-08600-00

Unavailable

15

HOLDER, HANDLE UP

99999-01112-00

Unavailable

16

HOLDER, HANDLE LOWER

4AA-23442-01-98

Unavailable

17

WASHER (1J7)

90209-12151-00

Unavailable

18

BUSHING, RUBBER

1T4-23434-00-00

Unavailable

19

WASHER PLATE 256234440000

90201-10149-00

Unavailable

20

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

21

NUT (682)

95380-10700-00

Unavailable

22

CLIP 136253750000

90468-12006-00

Unavailable

23

BOLT, SOCKET

91317-08025-00

Unavailable

24

CAP, BOLT (371,447)

341-23469-00-00

Unavailable
