1978 Yamaha SR500E (SR500E) Rear Wheel Diagram

← All diagrams

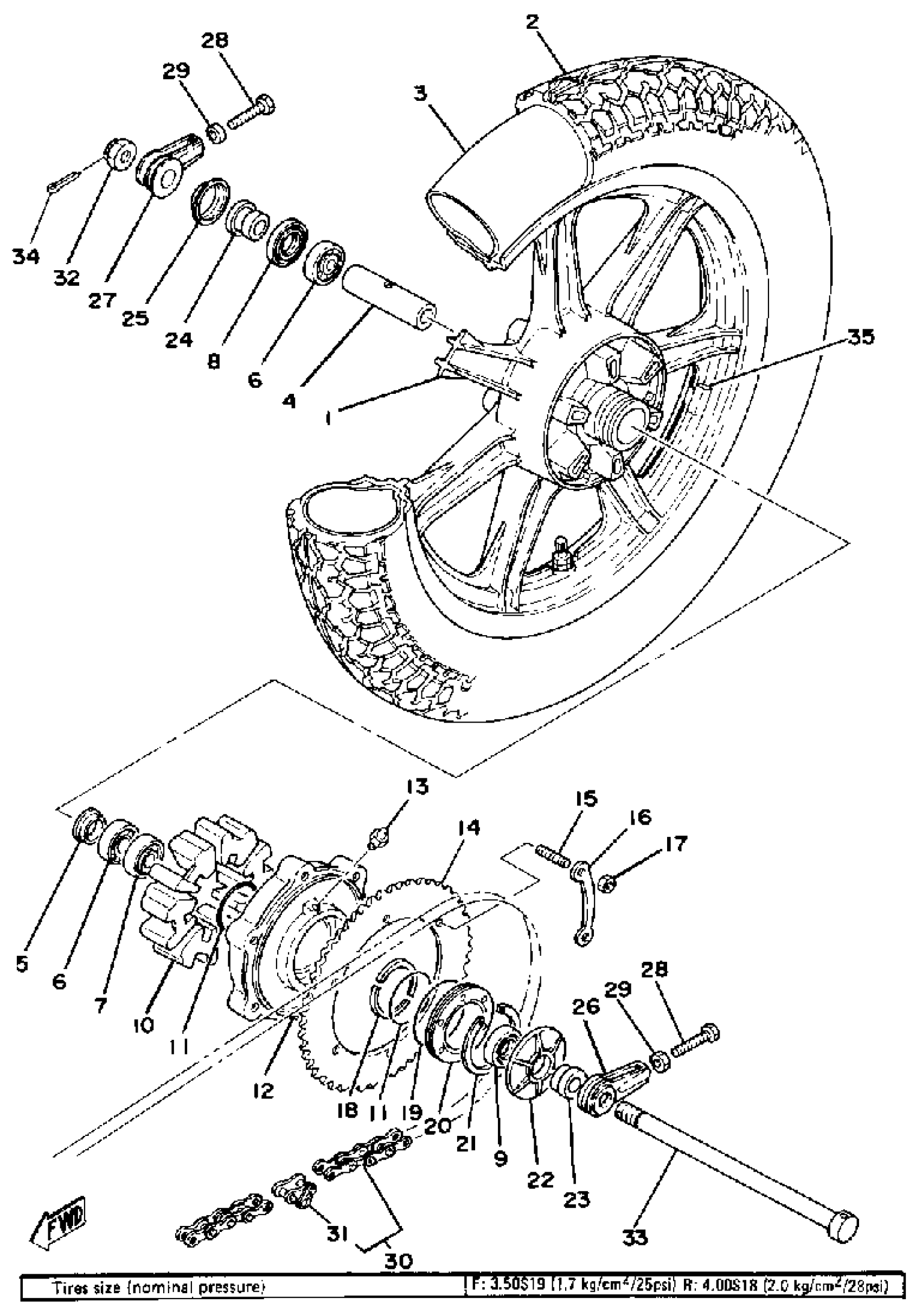

Find the part on the Rear Wheel diagram for your 1978 Yamaha SR500E (SR500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Yamaha SR500E (SR500E) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, CAST REAR

(2J2-25338-20-00)

1
Out of stock

2

400X18 BS G503

(94140-18386-00)

1
Out of stock

3

TUBE (5A8)

94212-18188-00

1

$32.23

In stock

4

SPACER

90560-17311-00

—
Out of stock

5

FLANGE, SPACER

146-25315-00-00

1

$6.38

In stock

6

1

$31.64

In stock

7

BEARING(4HM)

93306-30317-00

1

$33.54

In stock

8

OIL SEAL (28X47X7-102)

93102-28022-00

1

$12.63

In stock

9

OIL SEAL (25X40X8-248)

93102-25061-00

1

$11.00

In stock

10

DAMPER, CLUTCH

2J2-25364-00-00

1
Out of stock

11

O-RING (1E6)

93210-52312-00

1

$7.95

In stock

12

CLUTCH, HUB

1E6-25366-00-98

1
Out of stock

13

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

14

SPROCKET, DRIVN 44T

2J2-25444-10-00

1
Out of stock

15

BOLT, STUD (483)

90116-08218-00

1

$7.08

In stock

16

WASHER

2XJ-25412-00-00

—
Out of stock

17

NUT (583)

90170-08193-00

—
Out of stock

18

STOPPER, HUB

1E6-25318-01-00

—
Out of stock

19

O-RING (1E6)

93210-71311-00

—

$11.17

In stock

20

SEAL, HUB DUST

1E6-25319-01-00

—
Out of stock

21

CIRCLIP (1E6)

93450-78080-00

—
Out of stock

22

COVER, HUB DUST

1E6-25367-00-00

1
Out of stock

23

COLLAR (1E6)

90387-17530-00

—

$9.83

In stock

24

COLLAR

90387-17536-00

1
Out of stock

25

COVER, HUB DUST

(1J3-25118-00-00)

1
Out of stock

26

PULLER, CHAIN 1

48U-25388-00-00

—
Out of stock

27

PULLER, CHAIN 1

(2J2-25388-00-00)

1
Out of stock

28

BOLT

90101-08060-00

—

$4.92

In stock

29

. NUT

95380-08700-00

1

$3.07

In stock

30

CHAIN 50HDS-104L

94580-05104-00

1
Out of stock

31

. JOINT CHAIN

94680-20011-00

1
Out of stock

32

NUT, CASTLE (2H6)

90171-16024-00

—

$21.74

In stock

33

AXLE,WHEEL

150-25381-01-00

1
Out of stock

34

PIN, COTTER

91490-30030-00

—

$7.15

In stock

35

BALANCER, WHEEL

5MT-25398-00-00

—

$15.54

In stock

35

BALANCER, WHEEL

5MT-25398-00-00

—

$15.54

In stock
