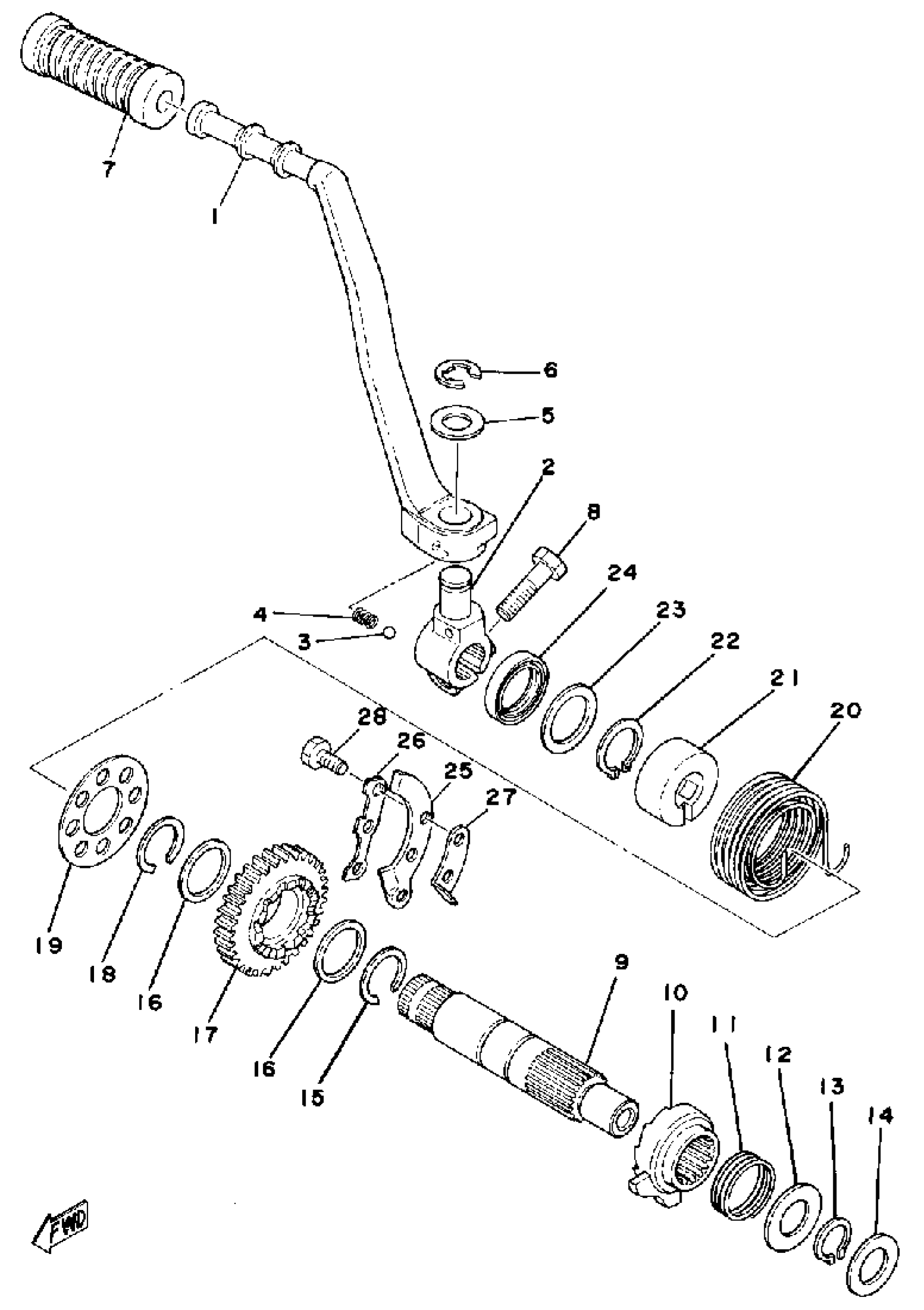

Yamaha SR500E (SR500E) 1978 KICK STARTER Diagram

#

Description
Price

1

KICK CRANK ASSY

1JN-15610-00-00

Unavailable

2

BOSS, KICK CRANK

583-15621-00-00

$89.99

3

BALL (12R)

93507-32031-00

$4.73

4

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

5

WASHER PLATE 278156130000

90201-15234-00

$8.49

6

CIRCLIP

99006-10600-00

$9.49

7

COVER, KICK CRANK

1T1-15618-00-00

$6.99

8

BOLT, HEXAGON

97013-08030-00

$2.49

9

AXLE, KICK

583-15661-00-00

Unavailable

10

WHEEL, RACHET

583-15671-00-00

Unavailable

11

SPRING COMPRESSION363156750000

90501-23143-00

Unavailable

12

COVER, SPRING

363-15676-00-00

$5.49

13

CIRCLIP(1EY)

99009-19400-00

$8.49

14

WASHER PLATE 168171160000

90201-20278-00

$10.49

15

CIRCLIP

93440-25020-00

$9.49

16

WASHER, PLATE(59W)

90201-253K0-00

Unavailable

17

GEAR, KICK

583-15641-00-00

Unavailable

18

CIRCLIP (4L0)

93440-25084-00

Unavailable

19

COVER, SPRING

(583-15676-00-00)

Unavailable

20

SPRING, TORSION (583 KICK)

90508-32280-00

Unavailable

21

SPACER

(90560-25154-00)

Unavailable

22

CIRCLIP(JF7)

99009-25400-00

Unavailable

23

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

24

OIL SEAL (25X35X7-256)

93102-25064-00

Unavailable

25

GUIDE, RACHET WHEEL

583-15674-00-00

Unavailable

26

WASHER, LOCK

363-15686-00-00

Unavailable

27

STOPPER

434-15668-00-00

Unavailable

28

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable
