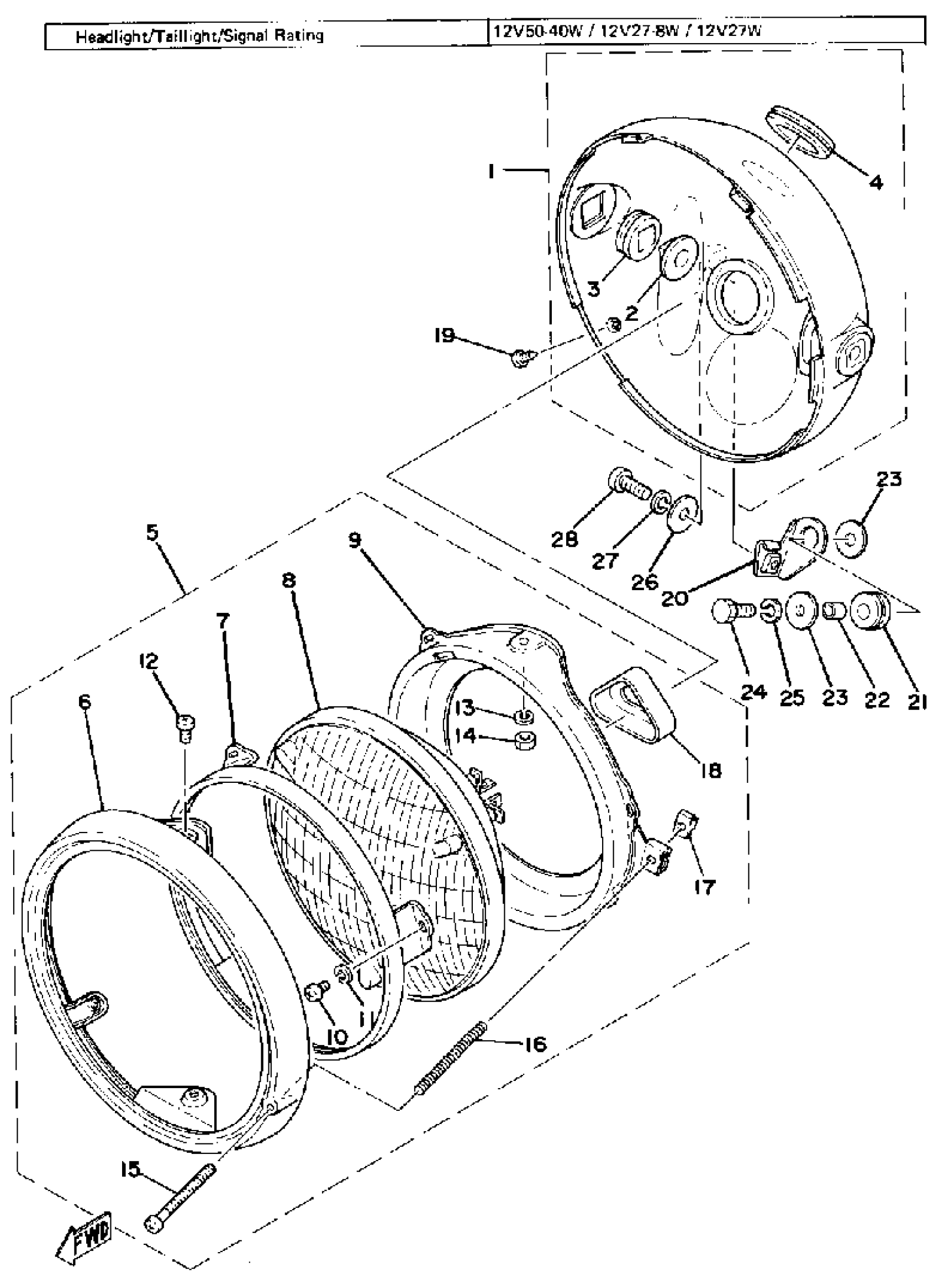

Yamaha SR500E (SR500E) 1978 HEAD LAMP Diagram

#

Description
Price

1

B0DY ASSY

1JK-84330-00-93

Unavailable

2

COLLAR 2

584-84338-60-00

$21.99

3

DAMPER, HEAD LAMP

584-84345-60-00

$9.99

4

GROMMET, WIREHARNESS

214-84153-60-00

$7.99

6

RIM, HEAD LAMP

341-84315-40-00

$142.99

7

RING, RETAINING

2F9-84395-00-00

$58.99

8

. LENS ASSEMBLY

341-84320-60-00

Unavailable

9

RING, MOUNTING

2F9-84394-00-00

Unavailable

10

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

13

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

14

NUT, HEXAGON (663)

95380-05600-00

$8.49

15

SCREW, PANHEAD (4G7)

98580-04055-00

Unavailable

16

SPRING, ADJUST

341-84332-60-00

$9.99

17

NUT, ADJUST

198-84334-60-00

Unavailable

18

. COVER, SOCKET

341-84397-61-00

Unavailable

19

SCREW, OVAL HEAD (1A0)

90152-05005-00

Unavailable

20

STAY, HEADLIGHT 1

2J2-84318-00-00

Unavailable

21

GROMMET (431)

90480-14052-00

Unavailable

22

COLLAR (3H5)

90387-060A3-00

Unavailable

23

WASHER, PLATE

90201-06380-00

Unavailable

24

BOLT, HEXAGON

97017-06020-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

WASHER, PLATE

90201-06380-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

SCREW PAN HEAD

98580-06010-00

Unavailable
