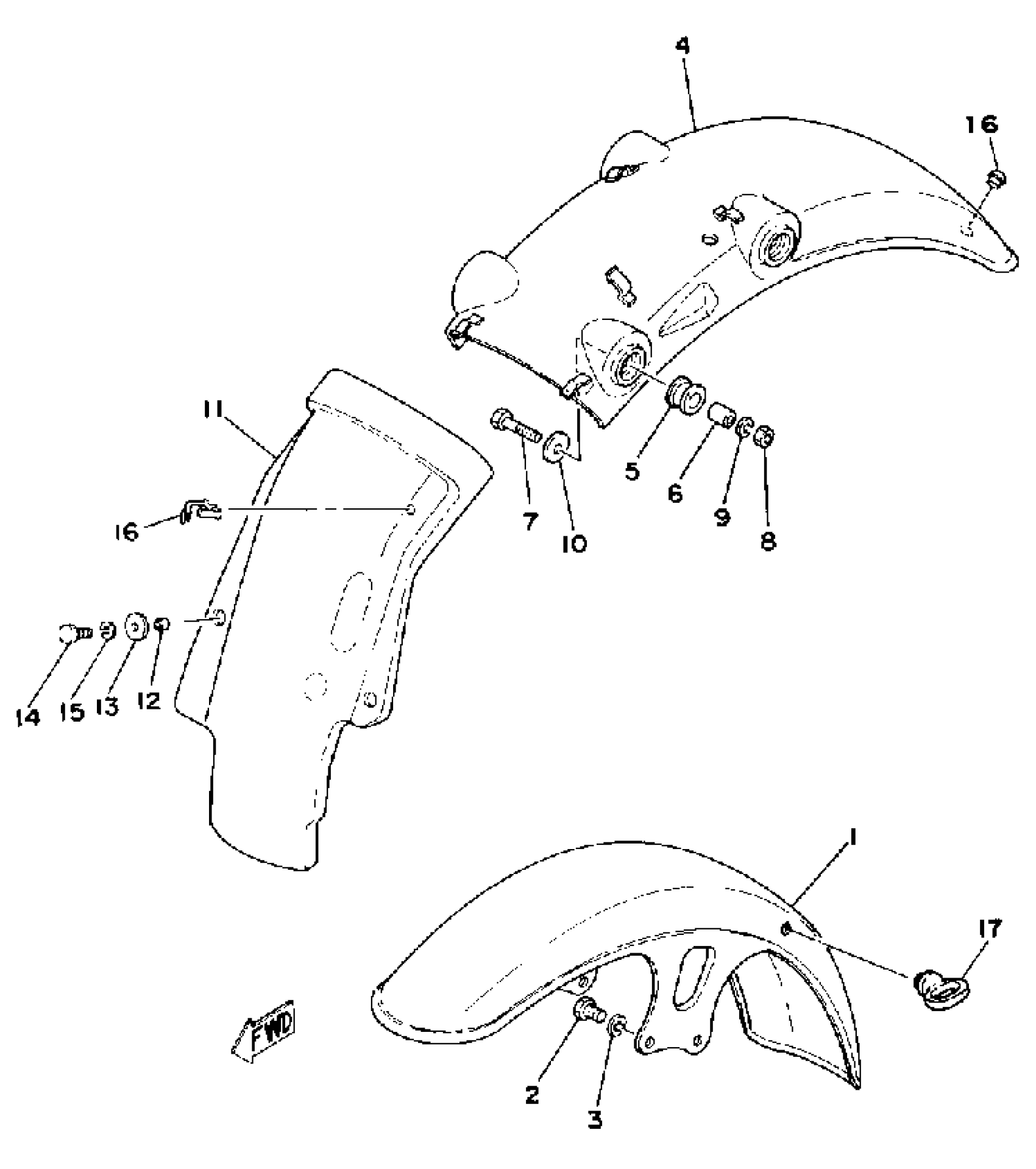

Yamaha SR500E (SR500E) 1978 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP

2J2-21510-00-93

Unavailable

2

BOLT, HEXAGON

97013-08020-00

$1.16

3

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

4

REAR FENDER COMP.

99999-03557-00

Unavailable

5

DAMPER, REAR

168-21639-00-00

$10.99

6

COLLAR (437)

90387-08258-00

$10.49

7

BOLT

97013-08035-00

$5.60

8

NUT(6L2)

95333-08600-00

$2.49

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

11

GUARD, MUD

2J2-21629-01-00

Unavailable

12

WASHER, PLATE

90201-06380-00

$0.60

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

14

WASHER, SPRING

92995-06100-00

Unavailable

15

CLAMP (1J7)

90464-16021-00

$12.49

16

DAMPER 2

2MG-21639-00-00

Unavailable

17

HOLDER, WIRE

1A0-21518-00-00

Unavailable
