1978 Yamaha SR500E (SR500E) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1978 Yamaha SR500E (SR500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

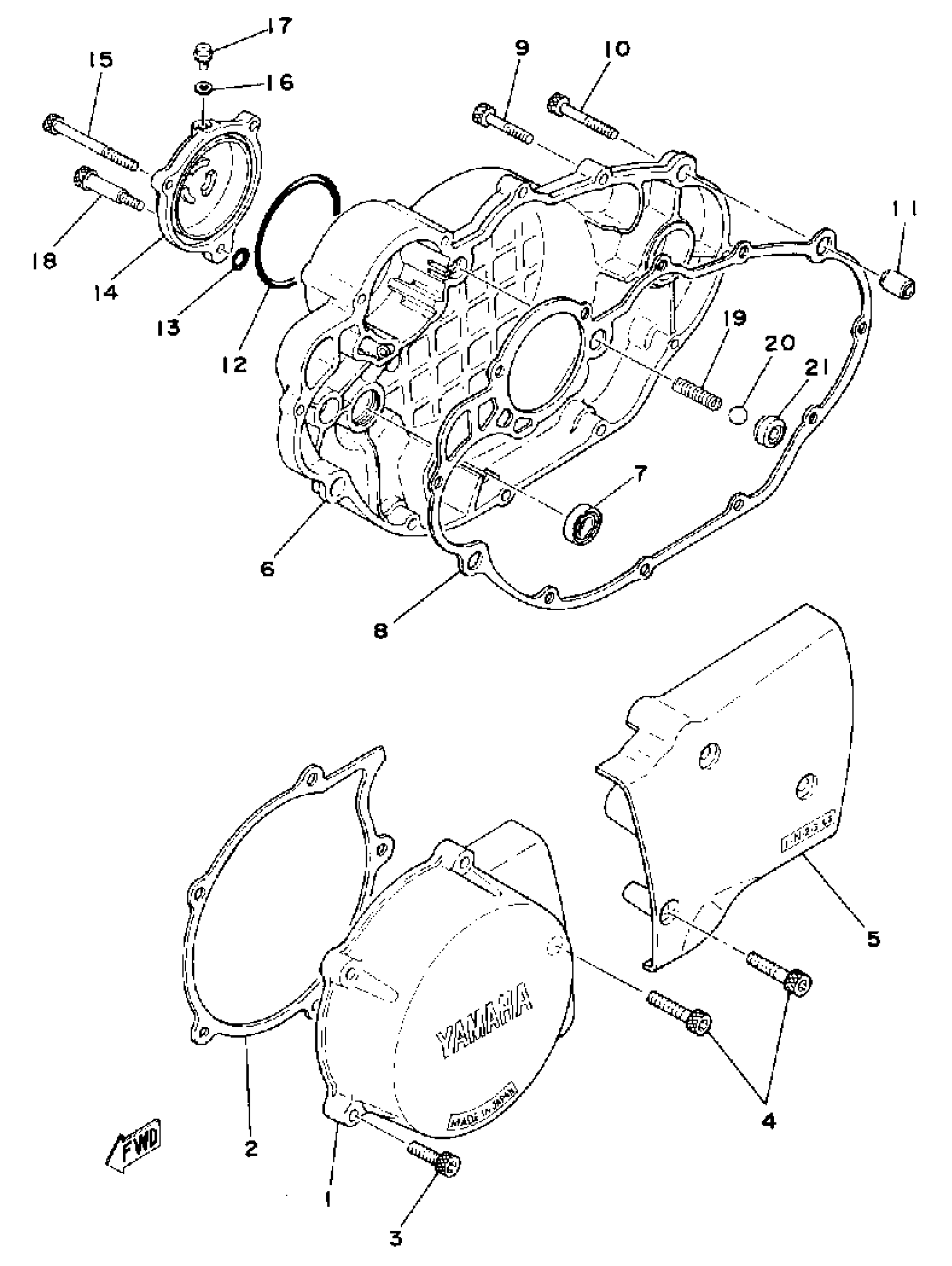

1978 Yamaha SR500E (SR500E) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

2J2-15411-00-00

1
Out of stock

2

GASKET, CRANKCASE COVER 1

3HT-15451-00-00

1

$21.80

In stock

3

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

4

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

5

COVER, CRANKCASE 2

3GW-15421-00-00

—

$134.32

In stock

6

COVER, CRANKCASE (R.H)

2J2-W1542-00-00

—
Out of stock

7

OIL SEAL (14X25X5.5-583)

93101-14089-00

1

$10.51

In stock

8

CRANKCASE COVER 3 GASKET

3HT-15462-R1-00

1
Out of stock

9

1

$3.82

In stock

10

GSKTKT SR500E/F

(2J2-00000-20-00)

1
Out of stock

10

BOLT,SOCKET

91317-06040-00

1

$3.45

In stock

11

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

12

O-RING (583 OIL CLEANER)

93210-64297-00

1
Out of stock

13

O-RING

93210-07438-00

1

$6.17

In stock

14

COVER, ELEMENT

2J2-13447-00-00

1
Out of stock

15

BOLT,SOCKET

91317-06060-00

—
Out of stock

16

GASKET

90430-05126-00

1
Out of stock

17

SCREW (583)

90149-05110-00

—

$6.88

In stock

18

BOLT (583 OIL DRAIN)

90109-06419-00

—

$6.17

In stock

19

SPRING (583 OIL CLEANER)

90501-05378-00

—
Out of stock

20

BALL

93503-08007-00

—

$2.35

In stock

21

SEAT, CHECK BALL

583-13113-00-00

—
Out of stock
