1978 Yamaha SR500E (SR500E) Crank - Piston Diagram

← All diagrams

Find the part on the Crank - Piston diagram for your 1978 Yamaha SR500E (SR500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

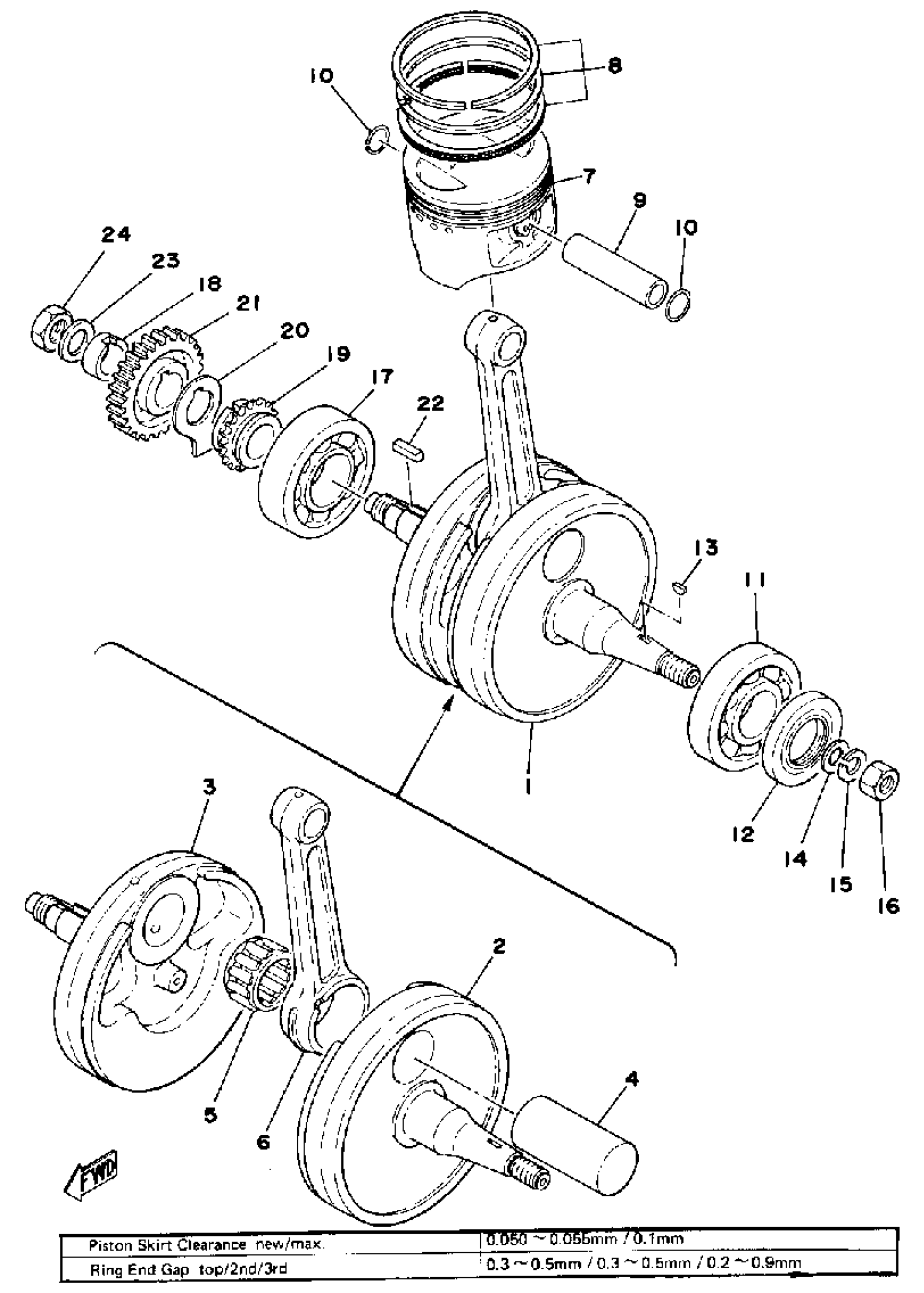

1978 Yamaha SR500E (SR500E) Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO LONGER AVAILABLE

2J2-11400-00-00

1
Out of stock

2

. NO LONGER AVAILABLE

2J2-11412-00-00

1
Out of stock

3

. NO LONGER AVAILABLE

2J2-11412-00-00

1
Out of stock

4

PIN, CRANK 1

583-11681-01-00

1
Out of stock

5

BRG,CYL-CAL ROLLER 46.8G TM

93310-635A5-00

1
Out of stock

6

ROD, CONNECTING

583-11651-00-00

—

$106.66

In stock

7

PISTON STD

2J2-11631-00-96

1
Out of stock

7

PISTON 1 O/S 0.25

2J2-11635-00-00

1
Out of stock

7

PISTON 2 O/S 0.50

2J2-11636-00-00

1
Out of stock

7

NO LONGER AVAILABLE (87.75MM 3RD O.S)

2J2-11637-00-00

1
Out of stock

7

PISTON 4 O/S 1.00

2J2-11638-00-00

1
Out of stock

8

PISTON RING SET

583-11610-02-00

1
Out of stock

8

PISTON RING SET (1ST O/S)

583-11610-12-00

—

$41.48

In stock

8

PISTON RING SET (2ND O/S)

583-11610-22-00

—

$67.55

In stock

8

PISTON RINGSET 3RD (583-11610-31)

583-11610-32-00

1
Out of stock

8

PISTON RINGSET 4TH (4TH O/S)

583-11610-42-00

1
Out of stock

9

CYLINDER HEAD ASSEMBLY

(2J2-11101-00-00)

1
Out of stock

10

CIRCLIP 341116340000

93450-22027-00

—

$6.00

In stock

11

BEARING(3KW)

93306-30630-00

—

$64.14

In stock

12

OIL SEAL (30X60X6-583)

93102-30145-00

—
Out of stock

13

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

14

WASHER, PLATE (583)

90201-12593-00

—

$6.82

In stock

15

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

16

NUT(55K)

90170-12347-00

—

$8.43

In stock

17

BEARING (3GV)

93306-30702-00

—

$69.32

In stock

18

COLLAR (2J2)

90387-20644-00

—
Out of stock

19

SPROCKET, CAM CHAIN DRIVE

583-11549-00-00

—
Out of stock

20

PLATE, CAM CHAIN SPROCKET

583-11533-00-00

—
Out of stock

21

GEAR, PRI DRIVE

583-16111-00-00

1
Out of stock

22

KEY, STRAIGHT (583)

90282-07021-00

—

$7.52

In stock

23

WASHER (517 CLUTCH)

90208-16019-00

—
Out of stock

24

NUT

90170-16425-00

—
Out of stock
