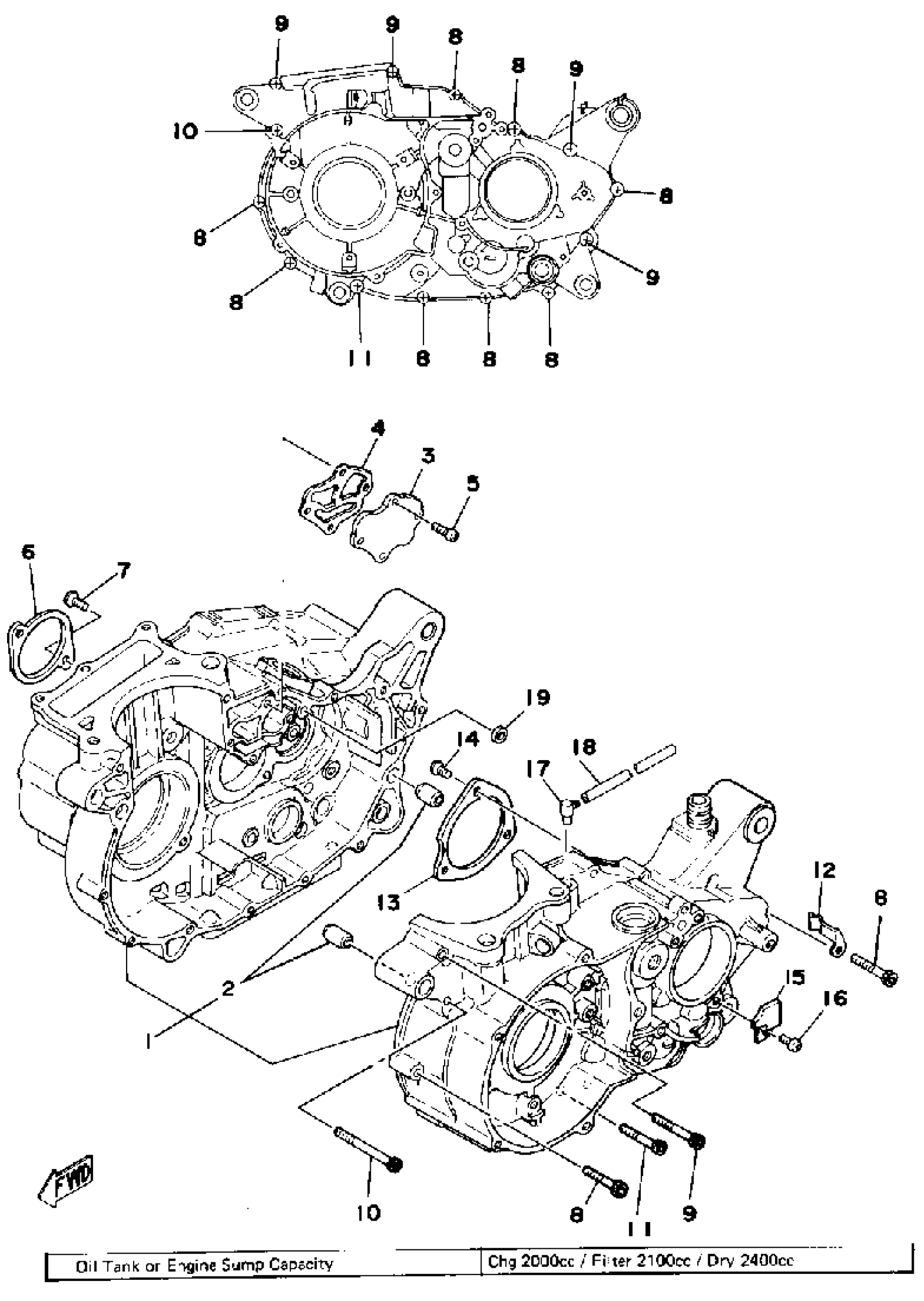

Yamaha SR500E (SR500E) 1978 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

(2J2-15100-00-00)

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

COVER, OIL PUMP 2

583-15426-10-00

Unavailable

4

GASKET 2

3HT-15466-00-00

$7.99

5

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

6

PLATE, BEARING COVER

583-15383-00-00

Unavailable

7

SCREW, FLAT

98707-06014-00

$8.49

8

BOLT,SOCKET

91317-06035-00

Unavailable

9

GSKTKT SR500E/F

(2J2-00000-20-00)

Unavailable

9

BOLT,SOCKET

91317-06045-00

$4.99

10

BOLT, SOCKET

91317-06065-00

$3.76

11

BOLT,SOCKET

91317-06055-00

$4.19

12

CLAMP(51Y)

90465-08277-00

Unavailable

13

PLATE, BRNG COVER

(363-15381-00-00)

Unavailable

14

SCREW, FLAT

98707-05012-00

$1.71

15

CLAMP

(90465-05132-00)

Unavailable

16

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

17

BREATHER

583-15371-00-00

Unavailable

18

HOSE (L1050)

90445-072G8-00

Unavailable

19

GASKET (583 CRANKCASE)

90430-09121-00

Unavailable
