1978 Yamaha SR500E (SR500E) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1978 Yamaha SR500E (SR500E), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

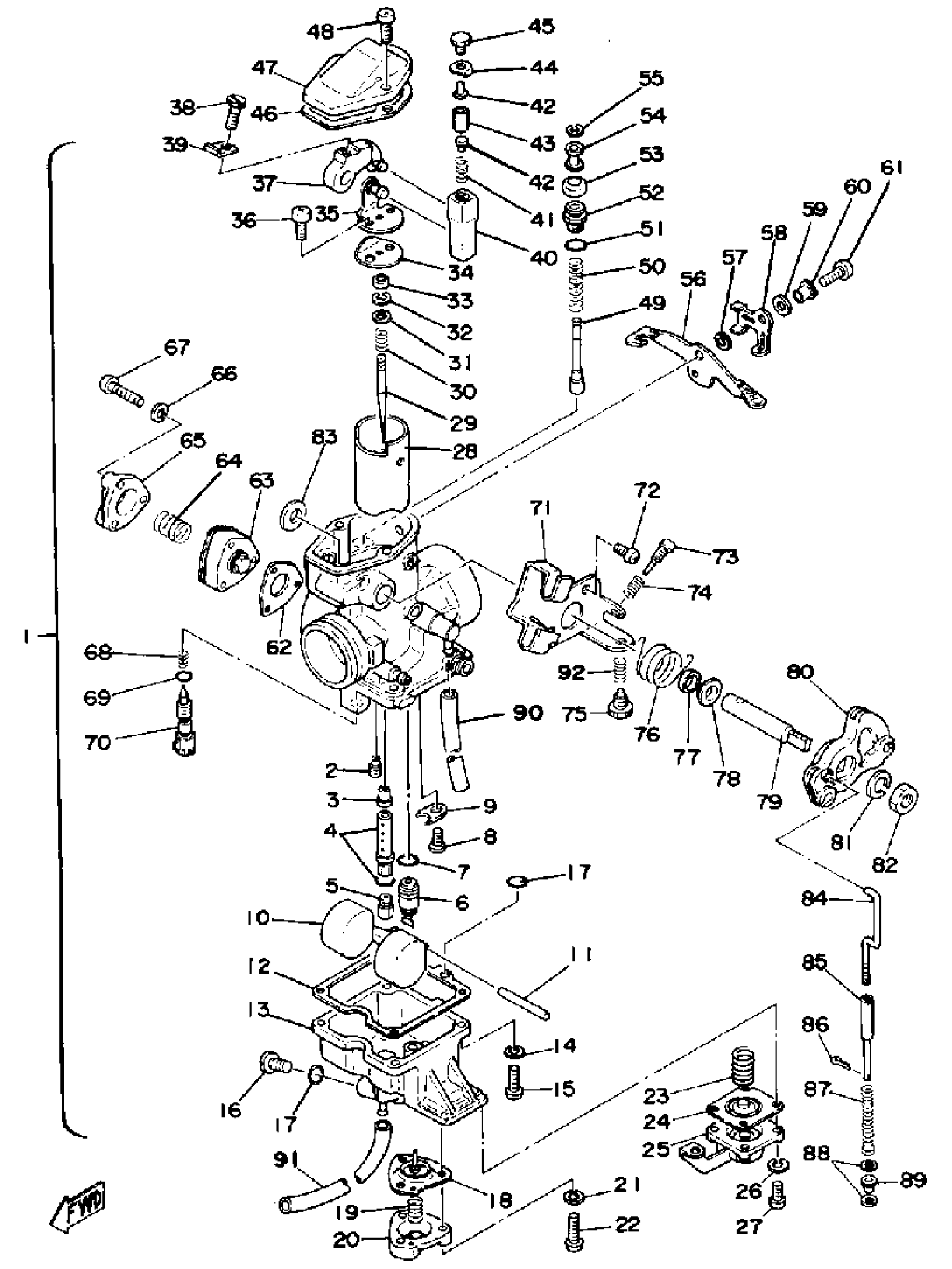

1978 Yamaha SR500E (SR500E) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

2J2-14101-00-00

1
Out of stock

2

JET, PILOT (# 25)

193-14142-25-A0

1
Out of stock

3

. NOZZLE, MAIN

2H0-14141-48-00

1
Out of stock

4

PIPE, JET NEEDLE

583-14148-00-00

—

$23.49

In stock

5

JET, MAIN #290

137-14143-58-A1

—
Out of stock

5

JET, MAIN #300

137-14143-60-A0

1

$9.18

In stock

5

JET, MAIN #310

137-14143-62-A1

—
Out of stock

6

VALVE SEAT ASSY

2H0-14190-28-00

1

$39.60

In stock

7

O-RING

8F2-14147-00-00

1
Out of stock

8

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

9

. PLATE

2H0-14146-00-00

1
Out of stock

10

. FLOAT

2H0-14185-00-00

1
Out of stock

11

PIN, FLOAT

537-14186-00-00

1
Out of stock

12

GASKET, FLOAT CHAMBER

2H0-14184-00-00

1

$17.85

In stock

13

BODY, FLOAT CHAMBER

(99999-01150-00)

1
Out of stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

15

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

16

. PLUG, DRAIN

2H0-14191-00-00

1
Out of stock

17

O-RING

583-14561-00-00

—

$4.74

In stock

18

—

$27.89

In stock

19

. SPRING, DIAPHRAGM

2J2-14933-00-00

1
Out of stock

20

COVER, DIAPHRAGM

(2J2-14958-00-00)

1
Out of stock

21

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

22

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

23

SPRING

(2H0-14589-00-00)

1
Out of stock

24

—

$52.62

In stock

25

. LEVER, STARTER

2H0-14905-00-00

1
Out of stock

26

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

27

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

28

VALVE, THROTTLE 1

(2H0-14112-35-00)

1
Out of stock

29

. NEEDLE

239-14116-25-00

1
Out of stock

30

. SPRING, THRTL VALVE

2H0-14131-00-00

1
Out of stock

31

. WASHER, NEEDLE

2H0-14235-00-00

1
Out of stock

32

CLIP

3FA-14137-00-00

—

$6.80

In stock

33

. RING

2H0-14194-00-00

1
Out of stock

34

SEAT, SPRING

(2H0-14936-00-00)

1
Out of stock

35

BRACKET 1

(2H0-14291-00-00)

1
Out of stock

36

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

37

LEVER, THROTTL.VALV

(583-14292-00-00)

1
Out of stock

38

. SCREW

583-14592-00-00

1
Out of stock

39

WASHER

(583-14597-00-00)

1
Out of stock

40

CONNECTOR

(583-14274-00-00)

1
Out of stock

41

SPRING, DIAPHRAGM

(1T2-14933-00-00)

1
Out of stock

42

WASHER

(583-14558-00-00)

1
Out of stock

43

PIN, FLOAT

(583-14386-00-00)

1
Out of stock

44

WASHER

(583-14951-00-00)

1
Out of stock

45

SCREW

(583-14216-00-00)

1
Out of stock

46

GASKET, MIXING CHAMBER TOP

583-14536-00-00

—

$37.68

In stock

47

TOP, MIXING CHAMBER

(583-14158-00-00)

1
Out of stock

48

SCREW, PAN HEAD(GA5)

98580-04014-00

—

$2.78

In stock

49

. PLUNGER, STARTER

2H0-14171-00-00

1
Out of stock

50

. SPRING, PLUNGER

256-14135-00-00

1
Out of stock

51

. O-RING

583-14562-00-00

1
Out of stock

52

. CAP, PLUNGER

2H0-14174-00-00

1
Out of stock

53

. COVER, PLUNGER CAP

802-14173-00-00

1
Out of stock

54

. RING

583-14918-00-00

1
Out of stock

55

. CLIP

737-14137-00-00

1
Out of stock

56

. LEVER, STARTER 1

2H0-14175-00-00

1
Out of stock

57

. SPRING, CHOKE LEVER

2H0-14218-00-00

1
Out of stock

58

PLATE, STARTER LVR

(2J2-14178-00-00)

1
Out of stock

59

. WASHER

2J2-14962-00-00

1
Out of stock

60

. RING

2J2-14194-00-00

1
Out of stock

61

SCREW, PAN

98507-06014-00

—

$6.18

In stock

62

GASKET, ENRICHMENT PUMP

2H0-14198-00-00

—
Out of stock

63

ENRICHMENT PUMP BODY ASSY

2H0-14217-00-00

—

$124.82

In stock

64

SPRING, DIAPHRAGM

(2H0-14933-00-00)

1
Out of stock

65

COVER, DIAPHRAGM

(2H0-14958-00-00)

1
Out of stock

66

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

67

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

68

. SPRING, PILOT ADJUSTING

2H0-14212-00-00

1
Out of stock

69

O-RING, PILOT SCREW

2H0-14147-00-00

—

$3.60

In stock

70

. SCREW, PILOT ADJUSTING

2H0-14211-00-00

1
Out of stock

71

BRACKET, THROTTLE

(2J2-14571-00-00)

1
Out of stock

72

SCREW,PAN HEAD (646)

98580-05012-00

—

$5.60

In stock

73

. SCREW, GUIDE

583-14245-00-00

1
Out of stock

74

. SPRING, THRTL STOP

583-14133-00-00

1
Out of stock

75

SCREW, THRTL STOP

(2J2-14121-00-00)

1
Out of stock

76

. SPRING, THRTL VALVE

583-14131-01-00

1
Out of stock

77

. SEAL

583-14239-01-00

1
Out of stock

78

. COLLAR

583-14265-00-00

1
Out of stock

79

SHAFT, THRTL LEVER

(2H0-14215-00-00)

1
Out of stock

80

. BRACKET

2J2-14573-00-00

1
Out of stock

81

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

82

NUT

812-14594-00-00

—

$5.34

In stock

83

. SPACER

583-14264-00-00

1
Out of stock

84

. ROD

2J2-14992-00-00

1
Out of stock

85

. ROD

2H0-14992-00-00

1
Out of stock

86

. PIN, COTTER

91401-10015-00

1
Out of stock

87

. SPRING

2J2-14589-00-00

1
Out of stock

88

. WASHER

2H0-14227-00-00

1
Out of stock

89

. COLLAR

2H0-14534-00-00

1
Out of stock

90

HOSE (L340)

90445-08684-00

—

$3.37

In stock

91

PIPE, OVER FLOW

2J2-14196-00-00

—

$30.20

In stock

92

SPRING

8X0-14500-00-00

—

$17.91

In stock
